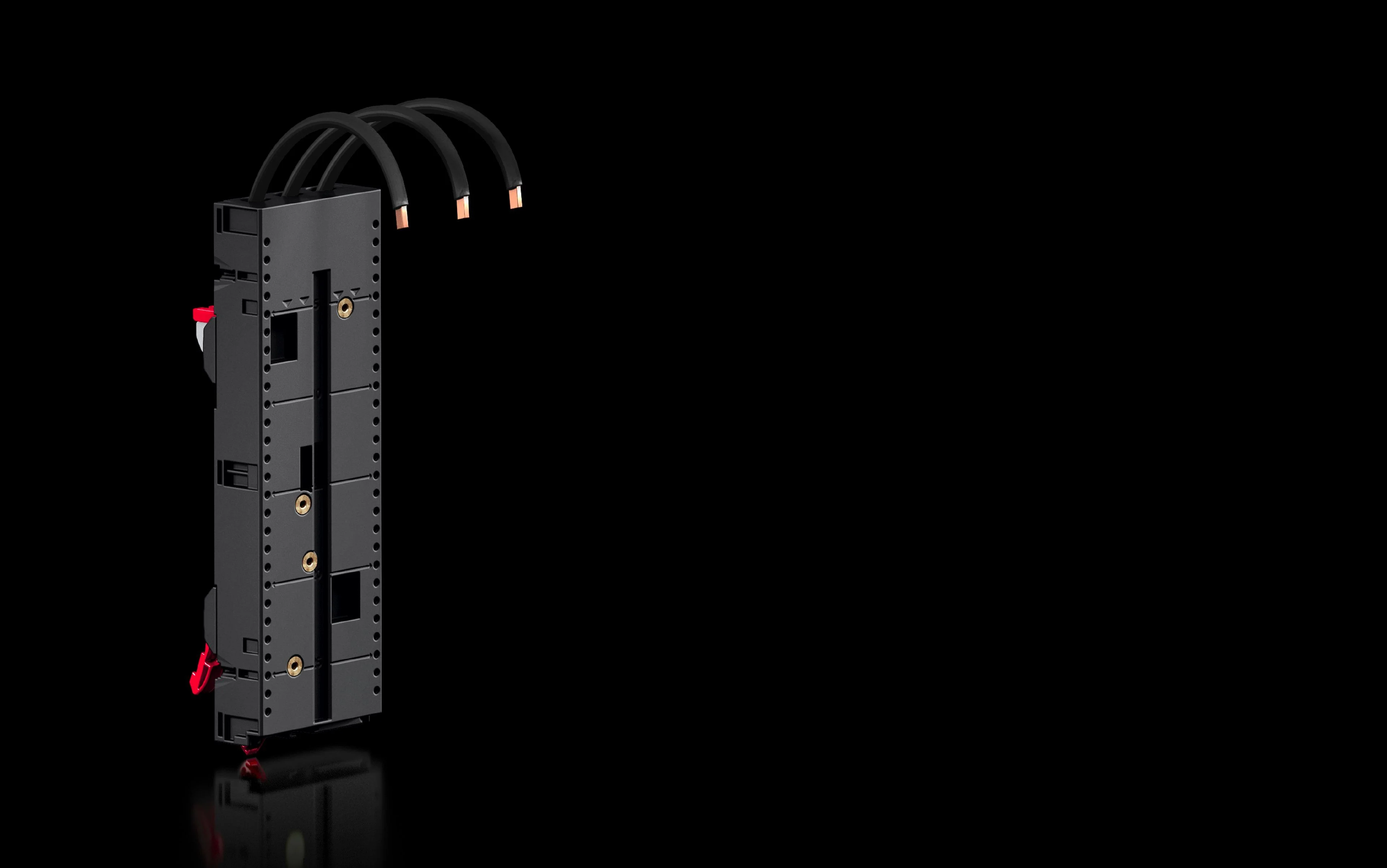

RITTAL RX 9360798 Component Adapter 80 A, Awg 4, 3-Pole, Width 72 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet | Top |
| Color | RAL 9005, RAL 35745 |
| Connection Cables | 4 AWG |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.246 Kg |
| Depth | 1 11/25" |
| Electrical Ul Ratings (sccr) | Null, 100 KA-600V, Fuse Class J Max. 200 A, Jddz/7, 65 KA-480V, Circuit Breaker Max. 70 A, Divq/7, 50 KA-480V, Combination Motor Controller Max. 100 A, Nkjh/7, 30 KA-600V, Combination Motor Controller Max. 75 A, Nkjh/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Grade | Grade PA6 |
| Height | 9.43" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Of Round Conductor | 80A |
| Rated Voltage | 600/690V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 2.83" |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 23.95 |
| Ship length (cm) | 3.66 |
| Ship width (cm) | 7.19 |
