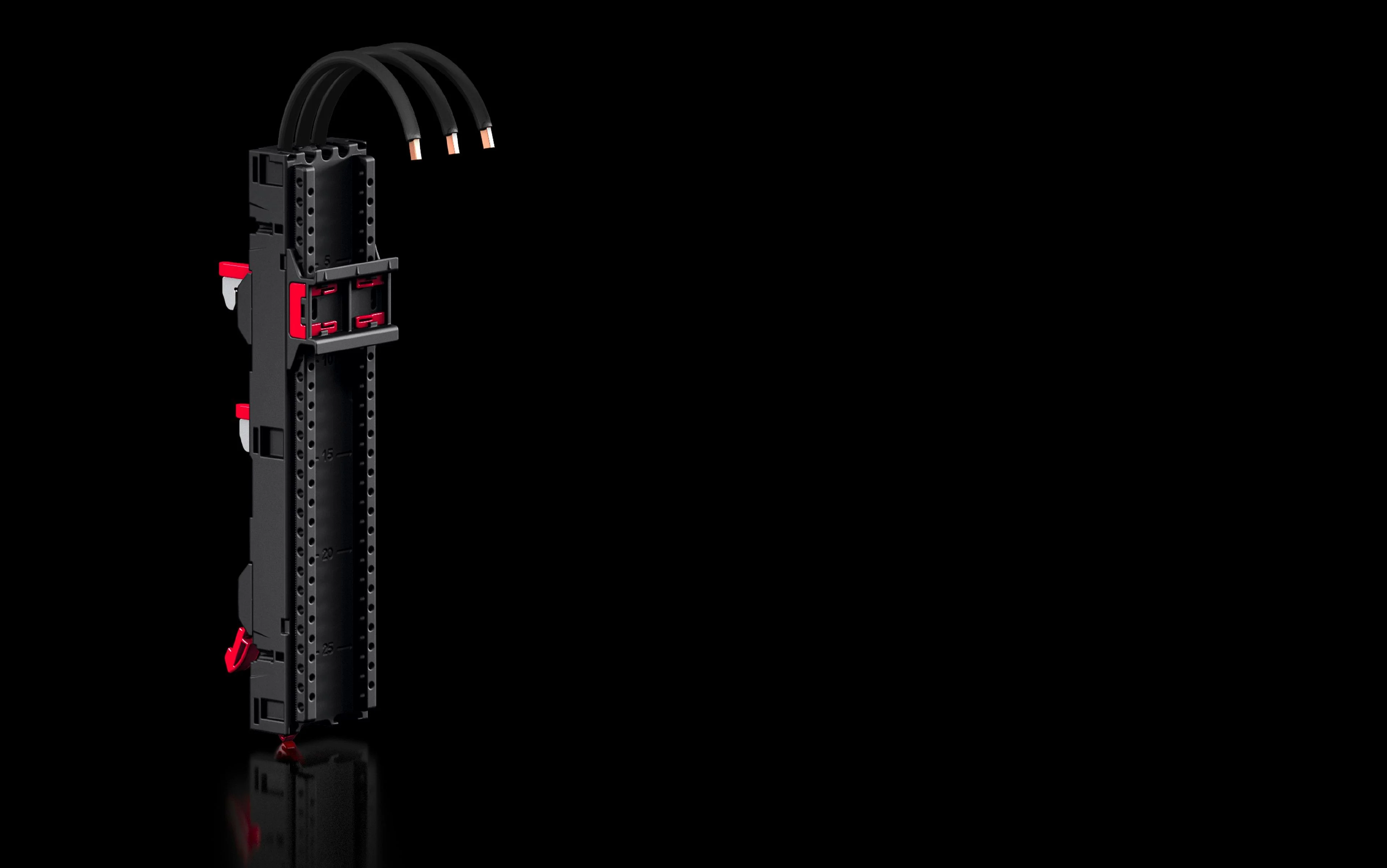

RITTAL RX 9360730 Component Adapter 32 A, Awg 10, 3-Pole, Width 45 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet | Top |
| Color | RAL 9005, RAL 35745 |
| Connection Cables | 10 AWG |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.088 Kg |
| Depth | 1.43" |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Grade | Grade PA6 |
| Height | 9.43" |
| Length Of Connection Cable | 160 mm |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| No. Of Poles | 3 |
| No. Of Support Rails | 1 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Of Round Conductor | 40A |
| Rated Voltage | 600/690V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 1.77" |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 23.95 |
| Ship length (cm) | 3.63 |
| Ship width (cm) | 4.5 |
