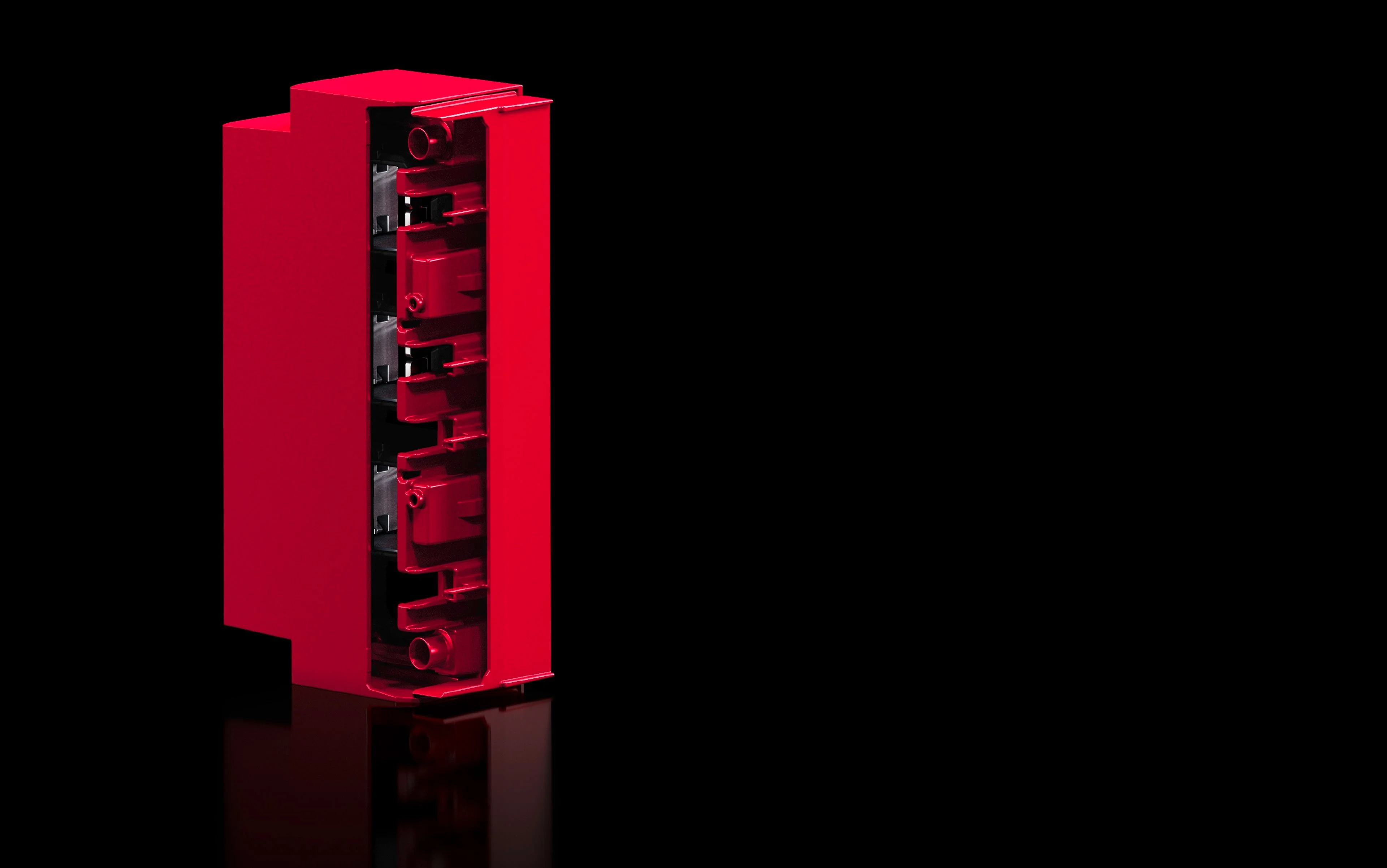

RITTAL RX 9360241 Connection Adapter 3-Pole, 60X240 Mm, Conductor Connection Max. 300 Mm², Clamping Area 32X20 Mm

Item: ED4MQHModel: RX 9360241

In Stock

Get it by Tuesday, Aug 25

Request a Quote

Payment

Delivery

Product Specifications:

Item	Adapter
Ambient Humidity (non Condensing)	10% to 90%
Cable Outlet	Axial To The Board
Color	RAL 35745
Connection For Round Conductor	150 sq. mm x 300 sq. mm
Contamination Level	3
Depth	5.34"
Electrical Ul Ratings (sccr)	27.5 Ka-600v, Rms, Unprotected, 100 Ka-480v, Circuit Breaker Max. 800 A, Divq/7100 Ka-600v, Fuse Class L Max. 1200 A, Jddz/7
For Bar Systems With Center To Center Spacing	60 mm
Grade	Grade PA6
Height	9.43"
Material	Polyamide
Max. Operating Air Humidity	90%
Max. Power Loss	50 W
No. Of Poles	3
Operating Temp. Range	-5°C to +55°C
Rated Amps Laminated Copper Busbar	950A
Rated Amps Laminated Copper Busbar (ul)	910A
Rated Amps Of Round Conductor	710A
Rated Amps Round Conductor (ul)	630A
Rated Impulse Withstand Voltage Uimp	12 kV
Rated Insulation Voltage	1000V
Rated Voltage	600/1000/1500V
Storage Temp.	-25°C to +75°C
Suitable For Busbar System	RiLineX', 'RiLine60
Suitable For Busbars	15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm
Width	2 7/25"
