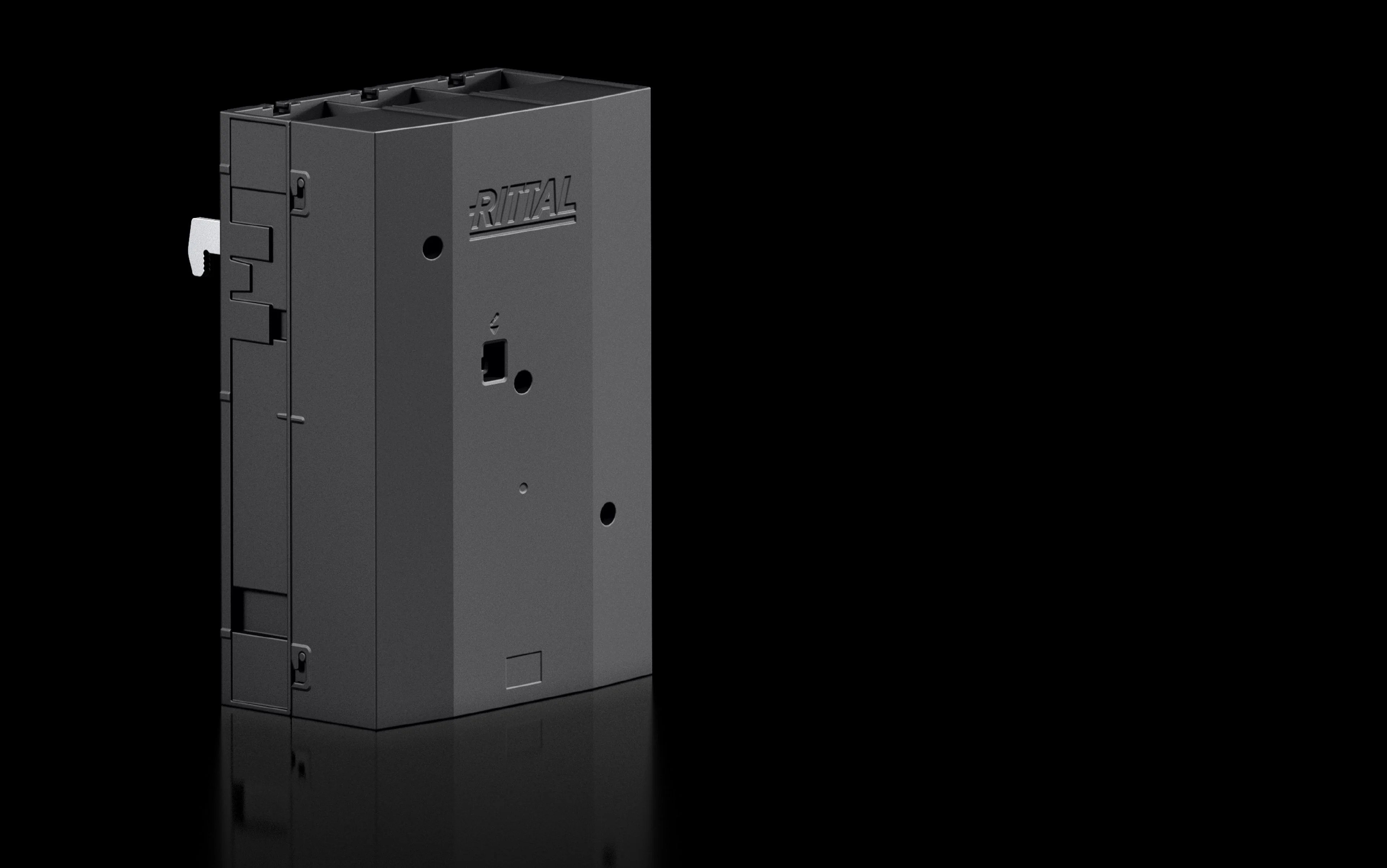

RITTAL RX 9360240 Connection Adapter 3-Pole, 145X240 Mm, Conductor Connection Max. 300 Mm², Clamping Area 24X20 Mm

Item: ED4MQGModel: RX 9360240

In Stock

Get it by Friday, Aug 21

Request a Quote

Payment

Delivery

Product Specifications:

Item	Adapter
Ambient Humidity (non Condensing)	10% to 90%
Cable Outlet Type	Top, Bottom
Color	RAL 9005
Connection For Round Conductor	95 sq. mm x 300 sq. mm
Contamination Level	3
Depth	4 3/25"
Electrical Ul Ratings (sccr)	27.5 Ka-600v, Rms, Unprotected, 100 Ka-600v, Circuit Breaker Max. 600 A, Divq/7100 Ka-600v, Fuse Class L Max. 1600 A, Jddz/7
For Bar Systems With Center To Center Spacing	60 mm
Grade	Grade PA6
Height	9.43"
Material	Polyamide
Max. Operating Air Humidity	90%
Max. Power Loss	28 W
No. Of Poles	3
Operating Temp. Range	-5°C to +55°C
Rated Amps Laminated Copper Busbar	870A
Rated Amps Laminated Copper Busbar (ul)	840A
Rated Amps Of Round Conductor	680A
Rated Amps Round Conductor (ul)	640A
Rated Impulse Withstand Voltage Uimp	12 kV
Rated Insulation Voltage	1000V
Rated Voltage	600/1000/1500V
Storage Temp.	-25°C to +75°C
Suitable For Busbar System	RiLineX', 'RiLine60
Suitable For Busbars	15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm
Width	5.71"
