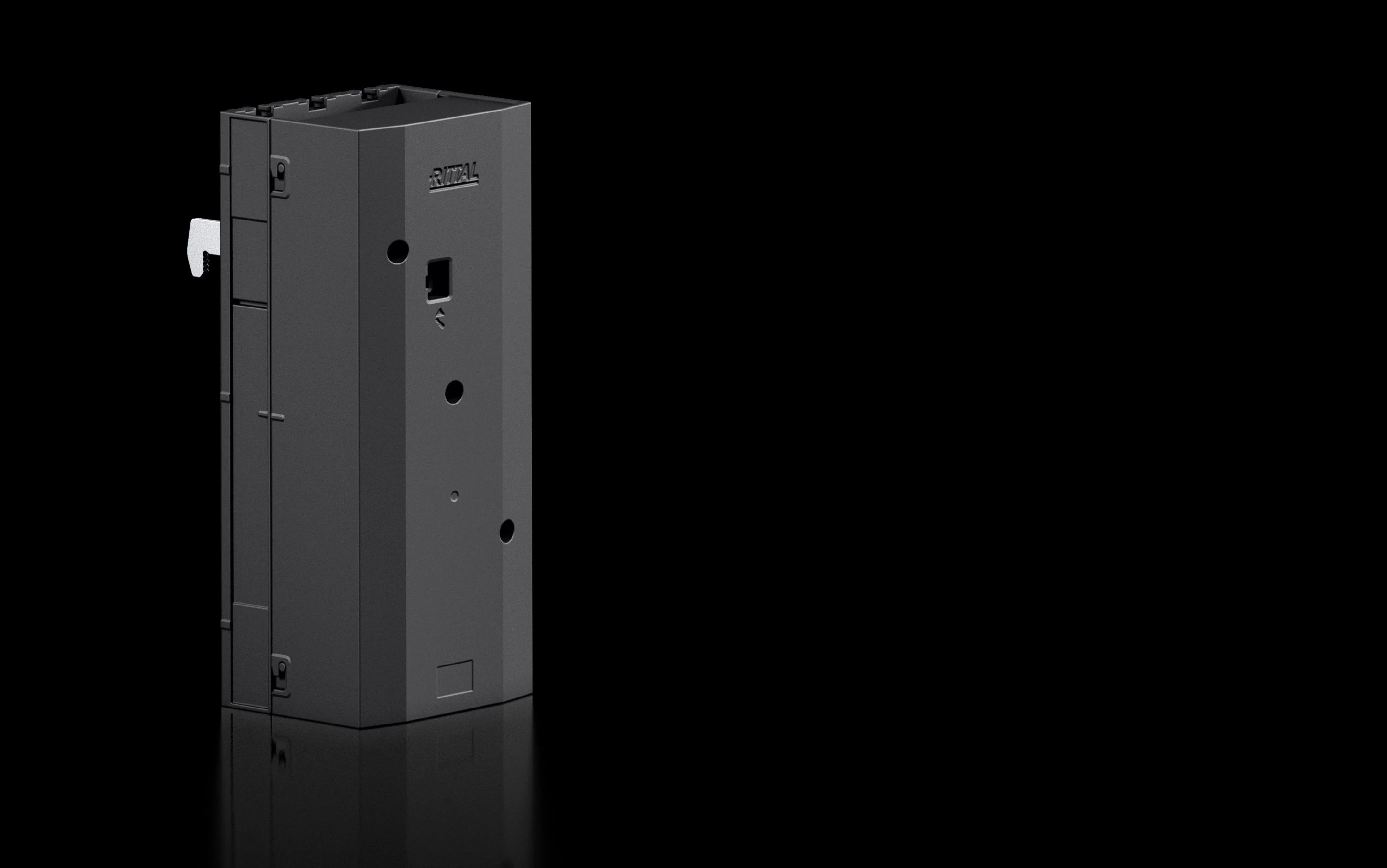

RITTAL RX 9360220 Connection Adapter 3-Pole, 90X240 Mm, Conductor Connection Max. 150 Mm², Clamping Area 20X20 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Amps | 400A |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005 |
| Connection For Round Conductor | 10 sq. mm x 150 sq. mm |
| Contamination Level | 3 |
| Depth | 3 18/25" |
| Electrical Ul Ratings (sccr) | 27.5 Ka-600v, Rms, Unprotected, 100 Ka-600v, Circuit Breaker Max. 600 A, Divq/7100 Ka-600v, 600 A, Class J, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Grade | Grade PA6 |
| Height | 9.43" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| Max. Power Loss | 19 W |
| Max. Rated Amps | 450A |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Of Round Conductor | 400A |
| Rated Impulse Withstand Voltage Uimp | 12 kV |
| Rated Insulation Voltage | 1000V |
| Rated Voltage | 600/1000/1500V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 3 14/25" |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 23.95 |
| Ship length (cm) | 9.45 |
| Ship width (cm) | 9.04 |
