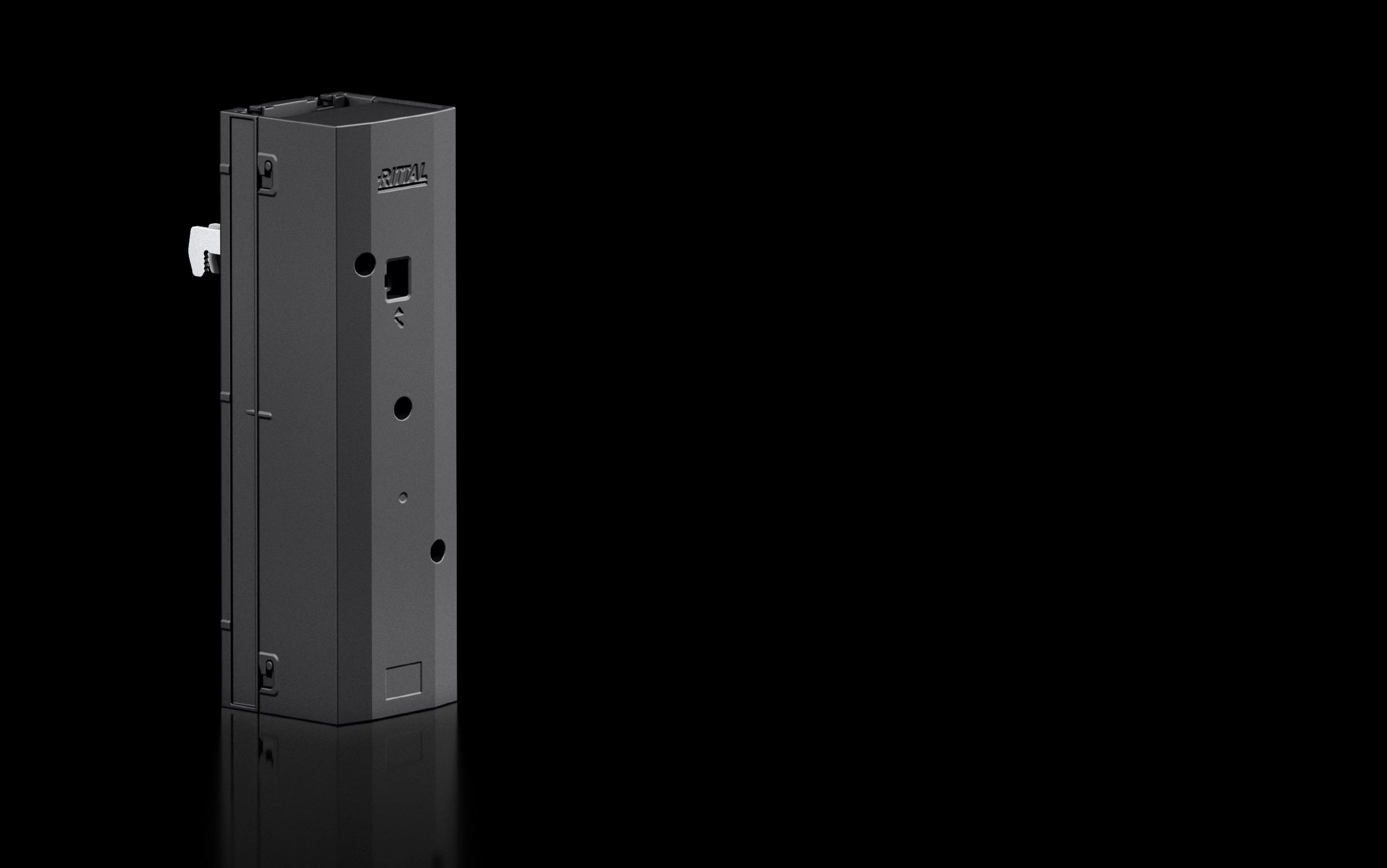

RITTAL RX 9360210 Connection Adapter 3-Pole, 63X240 Mm, Conductor Connection Max. 70 Mm², Clamping Area 13X5 Mm
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005 |
| Connection For Round Conductor | 2.5 sq. mm x 70 sq. mm |
| Contamination Level | 3 |
| Depth | 3 3/25" |
| Electrical Ul Ratings (sccr) | 10 Ka-600v, Rms, Unprotected, 100 Ka-600v, Circuit Breaker Max. 250 A, Divq/7100 Ka-600v, Fuse Class J Max. 200 A, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| Grade | Grade PA6 |
| Height | 9.43" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| Max. Power Loss | 14 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Of Round Conductor | 320A |
| Rated Amps Round Conductor (ul) | 280A |
| Rated Impulse Withstand Voltage Uimp | 8 kV |
| Rated Insulation Voltage | 800V |
| Rated Voltage | 600/800V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 2.49" |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 23.95 |
| Ship length (cm) | 7.92 |
| Ship width (cm) | 6.32 |
