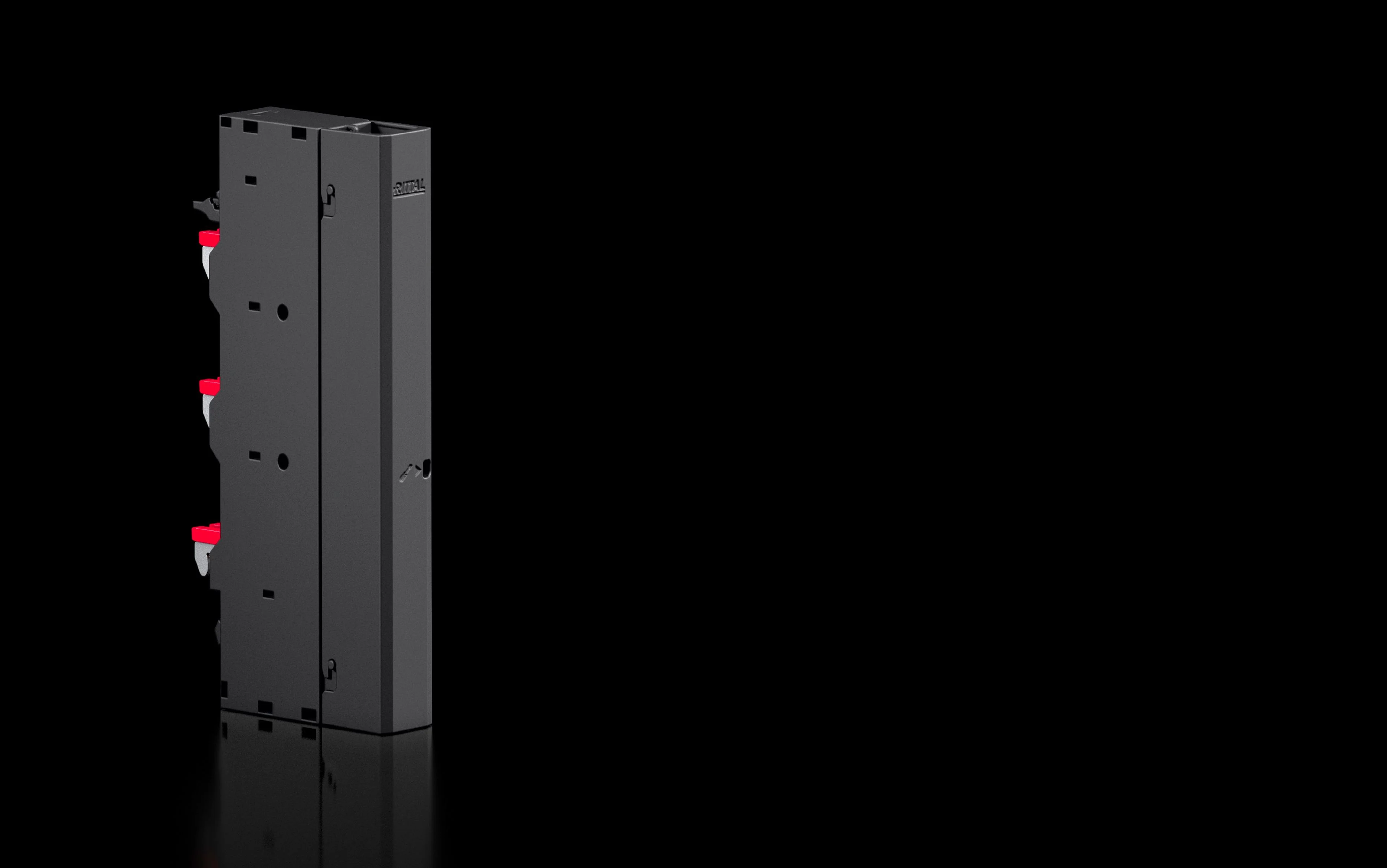

RITTAL RX 9360200 Connection Adapter 3-Pole, 27X240 Mm, Conductor Connection Max. 16 Mm²
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adapter |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Cable Outlet Type | Top, Bottom |
| Color | RAL 9005 |
| Connection For Round Conductor | 1.5 sq. mm x 16 sq. mm |
| Contamination Level | 3 |
| Depth | 4.07" |
| Electrical Ul Ratings (sccr) | 5 Ka-600v, Rms, Unprotected, 35 Ka-480v, Circuit Breaker Max. 60 A, Divq/7100 Ka-600v, Fuse Class J Max. 100 A, Jddz/7 |
| For Bar Systems With Center To Center Spacing | 60 mm |
| For Busbar Thickness | 1.5 mm to 16 mm |
| Grade | Grade PA6 |
| Height | 9.42" |
| Material | Polyamide |
| Max. Operating Air Humidity | 90% |
| Max. Power Loss | 7 W |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Amps Of Round Conductor | 76A |
| Rated Amps Round Conductor (ul) | 66A |
| Rated Impulse Withstand Voltage Uimp | 8 kV |
| Rated Insulation Voltage | 800V |
| Rated Voltage | 600/800V |
| Storage Temp. | -25°C to +75°C |
| Suitable For Busbar System | RiLineX', 'RiLine60 |
| Suitable For Busbars | 15 mm X 5 mm/10 mm, 20 mm X 5 mm/10 mm, 30 mm X 5 mm/10 mm |
| Width | 1.06" |
Shipping Info:
| Ship weight (kg) | 1.64 |
| Ship height (cm) | 23.93 |
| Ship length (cm) | 10.34 |
| Ship width (cm) | 2.69 |
