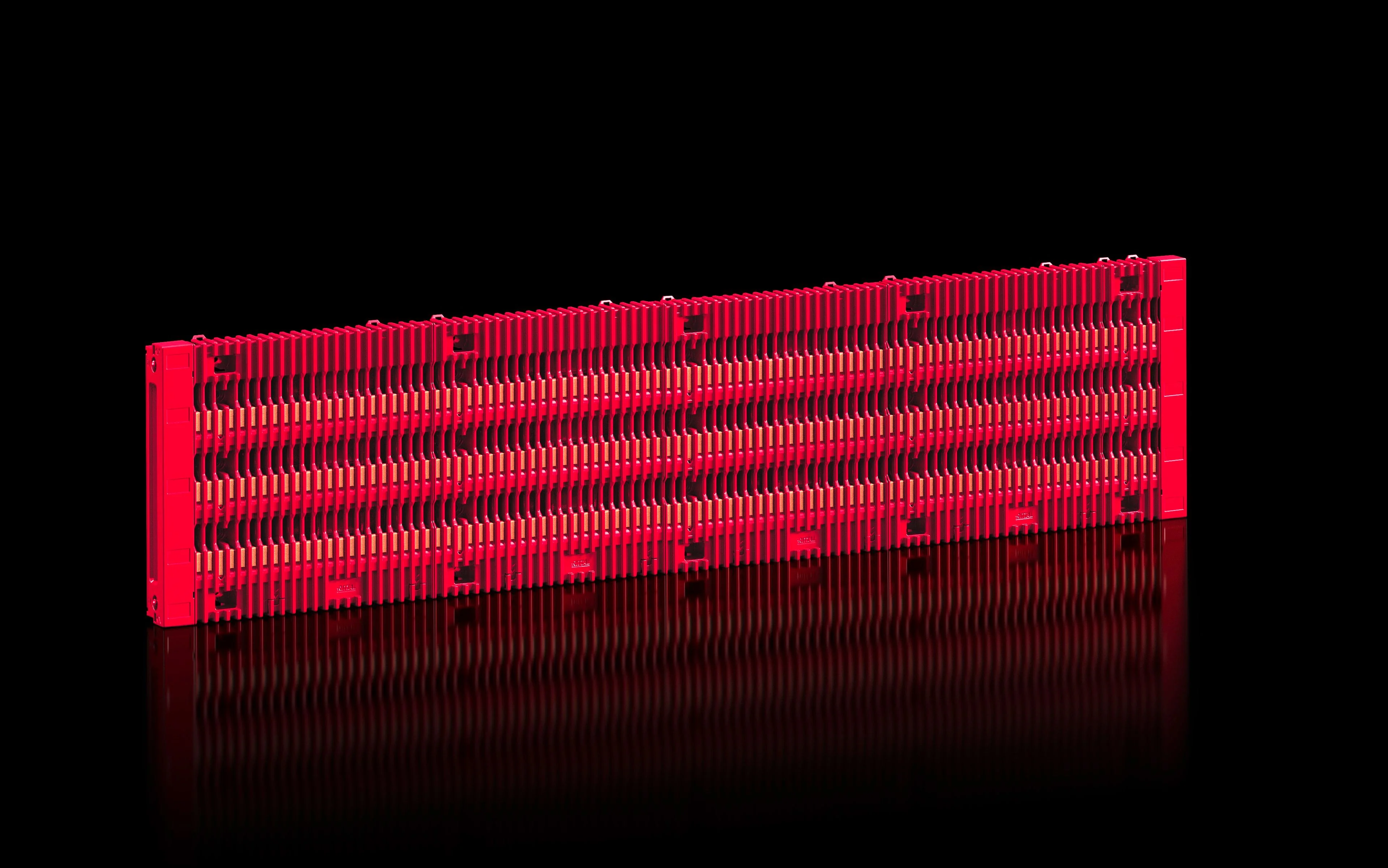

RITTAL RX 9360008 Rilinex Board 800 A, 3-Pole, Incl. Busbars E-Cu 30X10 Mm, 60 Mm Busbar Center Distance, Width 905 Mm
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Board |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Amps | 800A |
| Center To Center Spacing Of Busbars | 60 mm |
| Color | RAL 35745, RAL 9005 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 7.224 Kg |
| Depth | 1.94" |
| Electrical Ul Ratings (sccr) | 65 KA-600V, Rms, Unprotected, 100 KA-600V, Fuse Class L Max. 1600 A, Jddz/7100 KA-600V, Circuit Breaker Max. 600 A, Divq/7100 KA-480V, Circuit Breaker Max. 800 A, Divq/7, 65 KA-600V, Circuit Breaker Max. 800 A, Divq/7 |
| Fundamental Frequency | 50-60 Hz |
| Grade | Grade PA6 |
| Height | 9.69" |
| Material | Polyamide |
| Max. Rated Amps | 800A |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Impulse Withstand Amps | 143 kA |
| Rated Impulse Withstand Voltage Uimp | 12 kV |
| Rated Insulation Voltage | 1000V AC, 1500V DC |
| Rated Short Time Withstand Amps/t | 65/500A |
| Rated Voltage | 600/1000/1500V |
| Storage Temp. | -25°C to +75°C |
| Width | 35 3/5" |
Shipping Info:
| Ship weight (kg) | 11.91 |
| Ship height (cm) | 24.61 |
| Ship length (cm) | 4.93 |
| Ship width (cm) | 90.42 |
