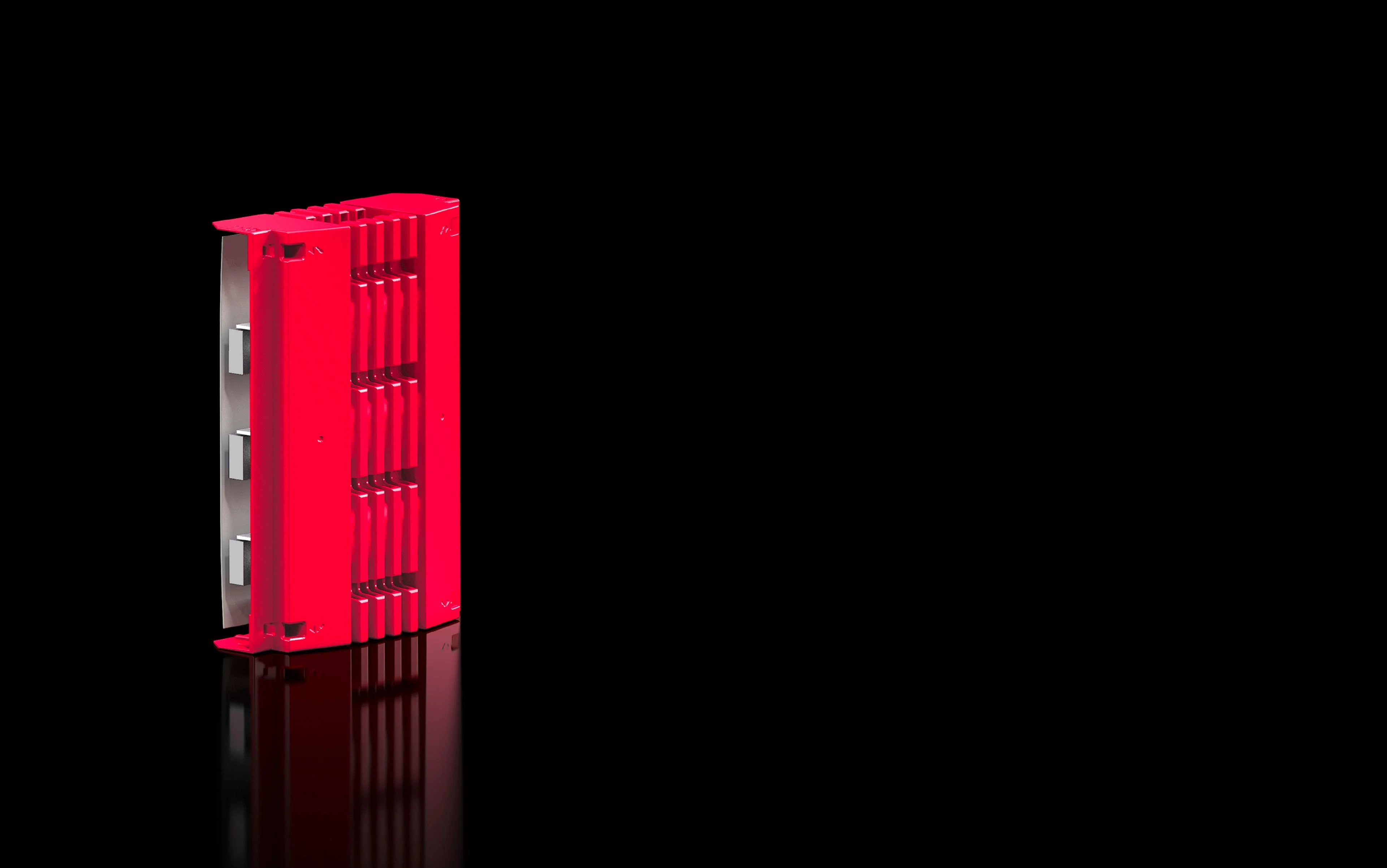

RITTAL RX 9360000 Baying Set Incl. Connector For Rilinex Board 3-Pole, Carbon Steel
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Baying Set |
| Ambient Humidity (non Condensing) | 10% to 90% |
| Amps | 780A |
| Color | RAL 35745 |
| Contamination Level | 3 |
| Copper Weight (per Piece) | 0.297 Kg |
| Depth | 3.03" |
| Electrical Ul Ratings (sccr) | 52.5 KA-600V, Rms, Unprotected, 100 KA-600V, Fuse Class L Max. 1600 A, Jddz/7100 KA-600V, Circuit Breaker Max. 600 A, Divq/7100 KA-480V, Circuit Breaker Max. 800 A, Divq/7, 65 KA-600V, Circuit Breaker Max. 800 A, Divq/7 |
| Fundamental Frequency | 50-60 Hz |
| Height | 9.45" |
| Material | Upper Part: Carbon Steel, Zinc-Plated Contact Plate: E-Cu, Tin-Plated Front Cover: Polyamide (Pa 6) Fire Behavior Corresponding To Ul 94 |
| Max. Rated Amps | 780A |
| No. Of Poles | 3 |
| Operating Temp. Range | -5°C to +55°C |
| Rated Impulse Withstand Amps | 103/115.5A |
| Rated Impulse Withstand Voltage Uimp | 12 kV |
| Rated Insulation Voltage | 1000V AC, 1500V DC |
| Rated Short Time Withstand Amps/t | 45 kA/200 ms, 52.5 kA/500 ms |
| Rated Voltage | 600/1000/1500V |
| Suitable For Busbars | 30 mm X 5 mm, 10 mm |
| Width | 6.06" |
Shipping Info:
| Ship weight (kg) | 1.9 |
| Ship height (cm) | 24 |
| Ship length (cm) | 7.7 |
| Ship width (cm) | 15.39 |
