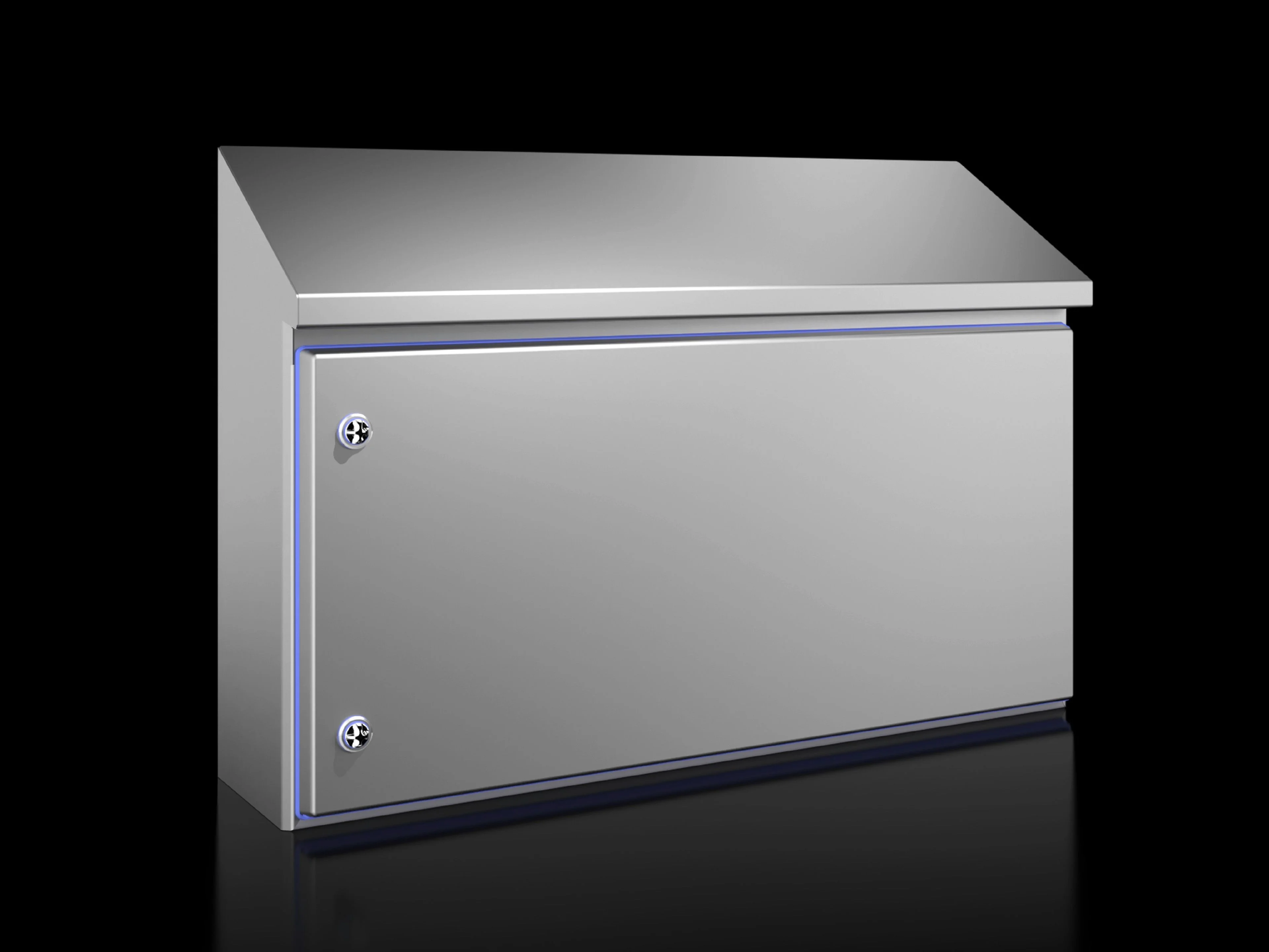

RITTAL HD 1314600 Compact Enclosure, 810 X 430 X 549 X 210 Mm, Stainless Steel 1.4301, With Mounting Plate, With Hinged Door And Silicone Seal
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Grade | Grade AISI 316L |
| Base Material | Stainless Steel |
| Depth | 210 mm |
| Door Opening Angle | 125° |
| Front Height | 430 mm |
| Material | Housing And Door: Stainless Steel 1.4301 (Aisi 304) Mounting Plate: Carbon Steel Hd Lock Inserts: Stainless Steel 1.4404 (Aisi 316L) Seal: Silicone, Compliant With Fda Guideline 21 Cfr 177.2600 |
| Mounting Plate Height | 355 mm |
| Mounting Plate Width | 750 mm |
| No. Of Locks | 2 |
| Rear Height | 549 mm |
| Surface Finish | Housing And Door: Brushed, Grain 400, Peak To Valley Height Less than 0.8 µm Mounting Panel: Zinc Plated Seal: Blue, Dyed (Ral 5010) |
| Type Rating According To Ul 50e | Type 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13 |
| Width | 810 mm |
Shipping Info:
| Ship weight (kg) | 25.74 |
| Ship height (cm) | 43 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 81.03 |
