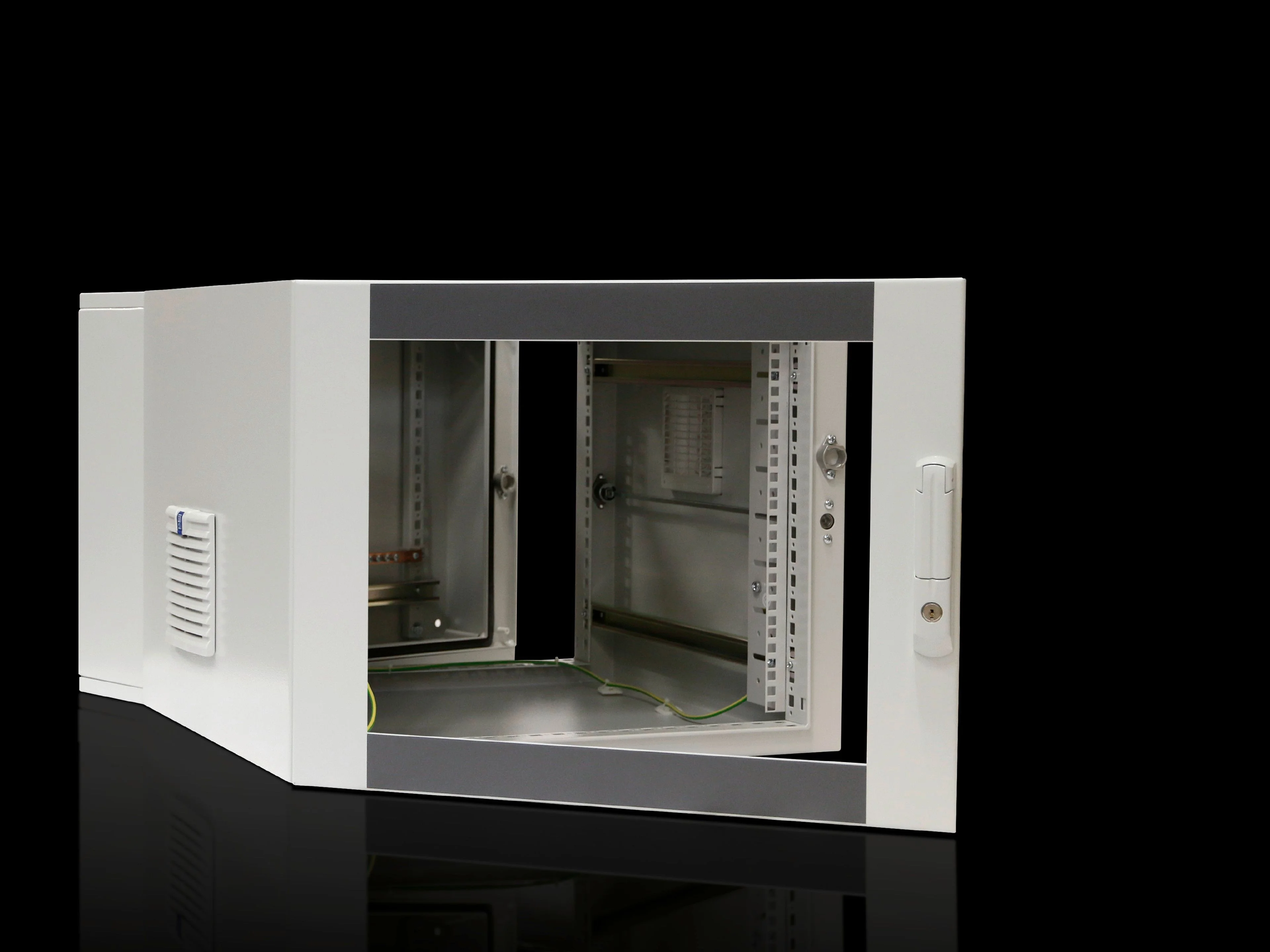

RITTAL DK 7709535 Wall-Mounted Enclosure, 3-Part, 600X478X673 Mm, 9 He, Pre-Mounted, Ip 54 With Closed Flange Plate At Top And Bottom
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Carbon Steel |
| Clearance Height | 415 mm |
| Clearance Width | 502 mm |
| Depth | 26 1/2" |
| Depth Hinged Part | 516 mm |
| Depth Of Wall Section | 135 mm |
| General Color | RAL 7035 |
| Height | 18 4/5" |
| Height Units | 9 U |
| Installation Depth | 620 mm |
| Load Capacity Of Hinged Part (static) | 450N |
| Material | Wall And Hinged Part: Carbon Steel, 1.5 Mm Viewing Window: Single-Pane Safety Glass, 3 Mm |
| Surface Finish | Powder Coated |
| Viewing Door Color | Slate Gray |
| Wall And Hinge Color | Ral 7035 |
| Width | 23 3/5" |
Shipping Info:
| Ship weight (kg) | 37.62 |
| Ship height (cm) | 47.75 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 59.94 |
