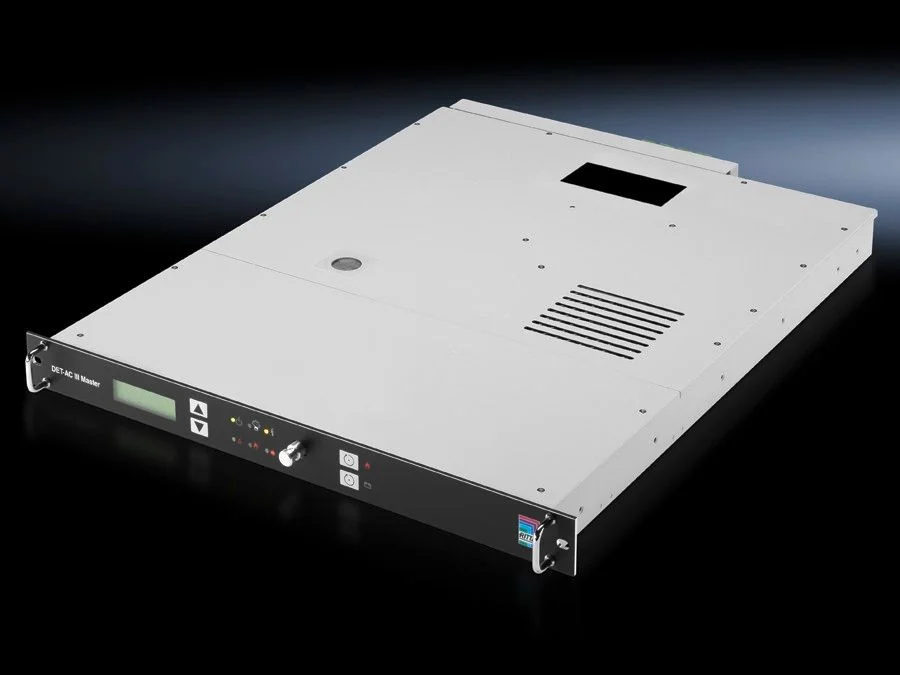

RITTAL DK 7338121 Fire Alarm And Extinguisher System Det-Ac Iii Master, Carbon Steel
Get it by Tuesday, Aug 18
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fire Alarm System |
| Air Flow Monitoring | Approx-10% To +10% Of Total Air Flow |
| Depth | 26" |
| Display | Plain Language Display with 6 LEDs |
| Extinguisher Gas | Type: Fk 5-1-12 Fill Volume: 1.8 L |
| Front Color | Ral 9005 |
| Height | 1.73" |
| Housing Color | Ral 7035 |
| Interfaces | 4 x/3 x Relay Outputs For Alarms And Faults (Terminals/RJ12 Jacks), 1 x/1 x Input For Door Contact Switch (Terminal/RJ12 Jack), 2 x Can Connections For Master-Slave Networking, 2 x Connection (External Alarm/Manual Triggering Device), 1 x Voltage Output For Det-Ac Slave Iii (24 V Dc Max. 500 Ma), 1 x USB, 2 x Can Bus Interfaces To CMC III (Max. 16 On Pu/4 On Pu Compact) |
| Material | Carbon Steel |
| Operating Temp. Range | 10°C to 40°C |
| Pcf/ve (cradle To Gate) | 81.9 Kg CO2 Eq (Cat B) |
| Rated Operating Voltage | 100-240V |
| Relative Humidity (non Condensing) | 96% |
| Sensors | Optical Smoke Detector (Sensitivity: Approx. 3.5%/M Light Obscuration), Optical Smoke Detector, Top Hat Rail (Sensitivity: Approx. 0.25%/M Light Obscuration) |
| Storage Temp. | -20°C to +65°C |
| Storage Temperature Range, Batteries | -15°C to +40°C |
| Tank Material | Aluminum |
| Tank Volume | 2L |
| Uninterruptible Mains Electricity Operation | Approx 4 hrs. |
| Width | 19" |
Shipping Info:
| Ship weight (kg) | 21.29 |
| Ship height (cm) | 4.39 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 48.26 |
