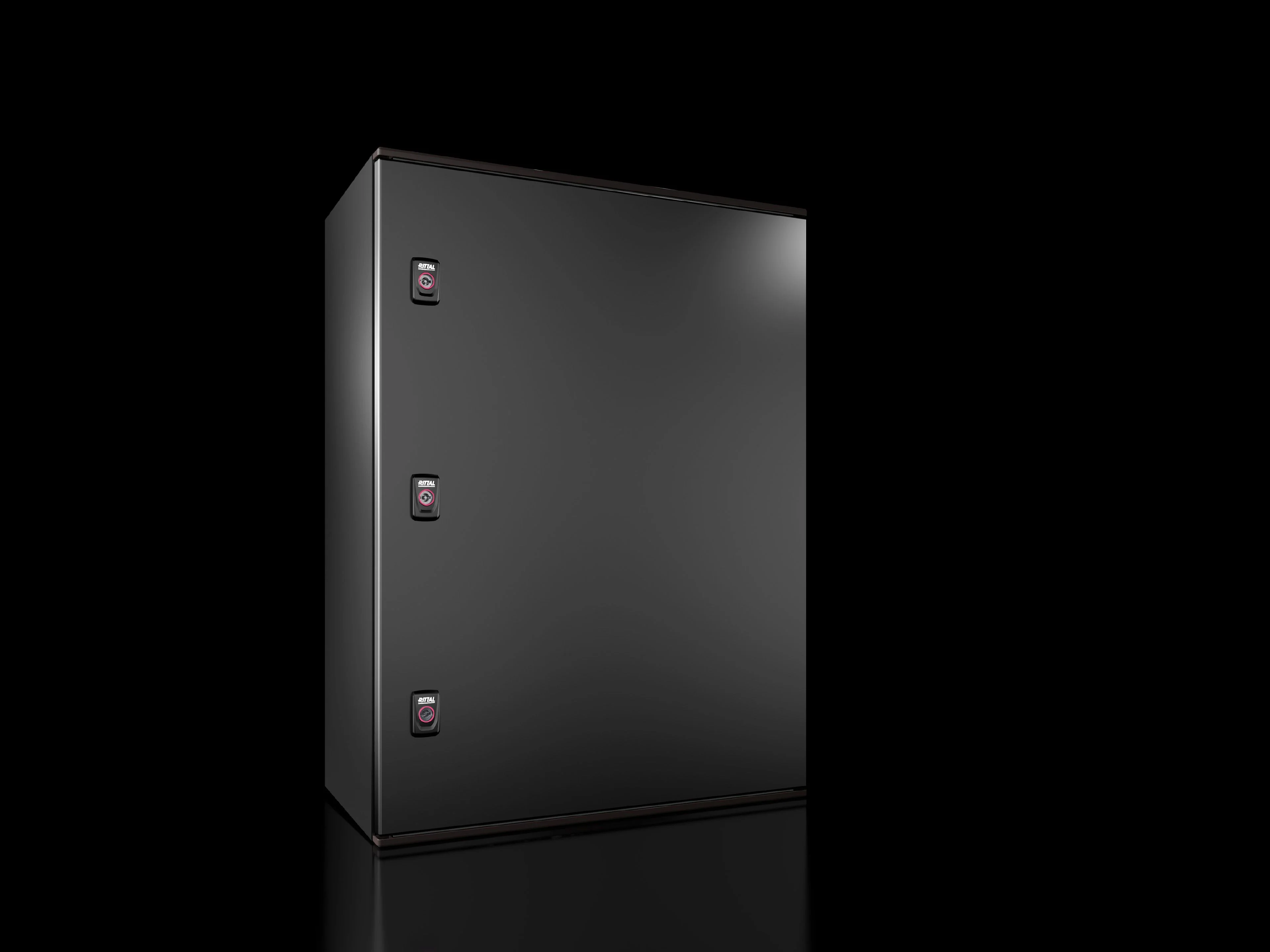

RITTAL AX 9208100 Enclosure, 600 X 800 X 300 Mm, With Mounting Plate, Empty Enclosure With Hinged Door, Carbon Steel
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Applications | Zone 1 And 2 Or 21 And 22 To 2014/34/Eu, Ambient Temperature Range -40 °C...+70 °C, The Specified Temperatures Can Be Limited By The Installed Equipment, Explosion Protection Category To En\Xa060\Xa0079 Equipment Protection Due To Increased Safety (Ex E), Equipment Protection Due To Enclosure (Ex Tb) |
| Color | RAL 9011 |
| Depth | 11 4/5" |
| Height | 31 1/2" |
| Material | Housing: Fiber-Glass Reinforced Unsaturated Polyester, Surface Resistance: < 10^9 ohms Door: Glass Fiber Reinforced Unsaturated Polyester, Surface Resistance: < 10^9 ohms Circumferentially Bonded Silicone Gasket Mounting Plate: Carbon Steel, Zinc-Plated |
| Mounting Plate Height | 725 mm |
| Mounting Plate Thickness | 3 mm |
| Mounting Plate Width | 505 mm |
| No. Of Locks | 3 |
| Operating Temp. Range | -40°C to +70°C |
| Operating Temperature | The Specified Temperatures Can Be Limited By The Installed Equipment |
| Width | 23 3/5" |
Shipping Info:
| Ship weight (kg) | 26.24 |
| Ship height (cm) | 80.01 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 59.94 |
