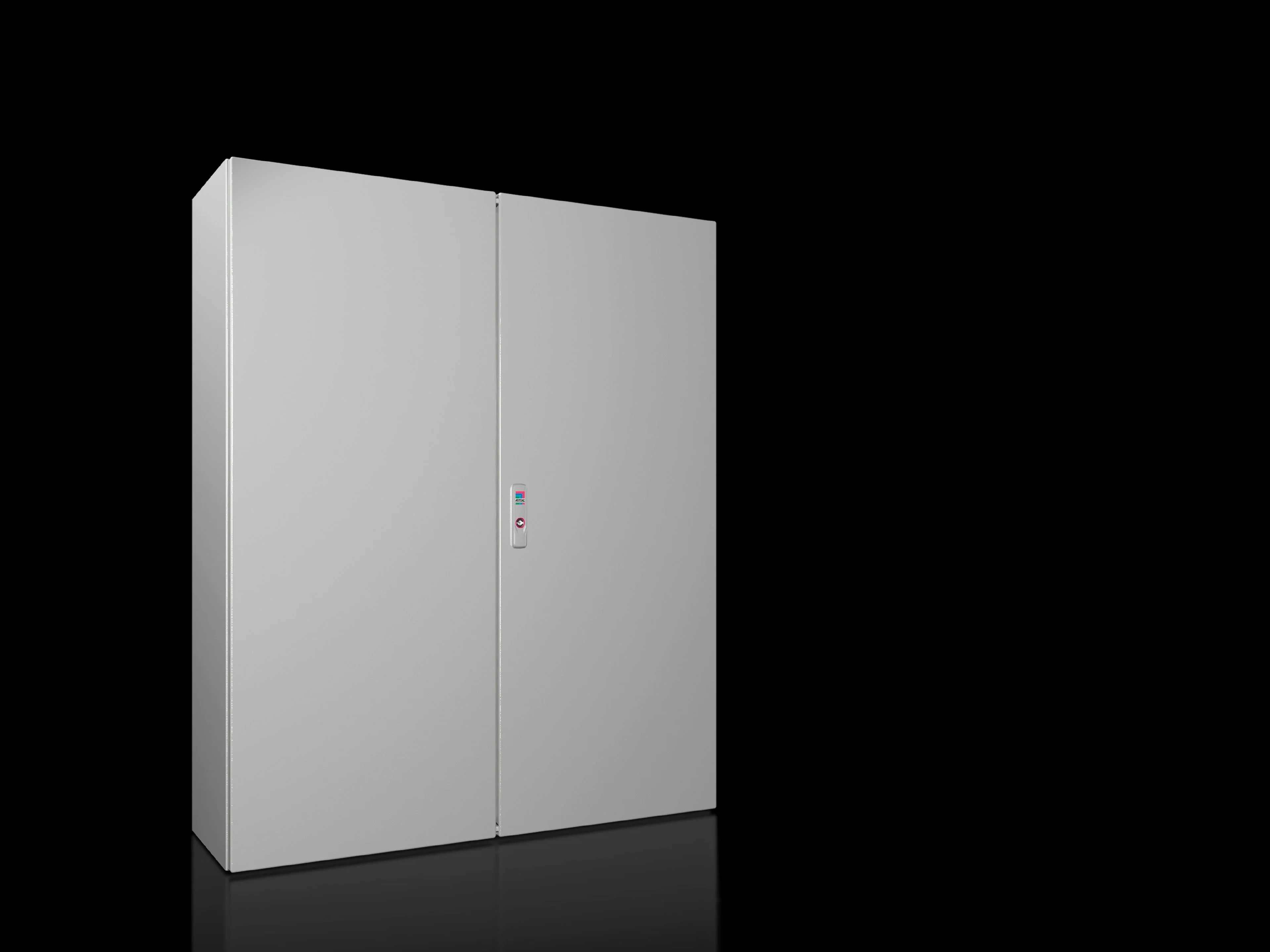

RITTAL AX 1213000 Wall-Mounted Enclosure, 1000 X 1200 X 300 Mm, Carbon Steel, With Mounting Panel, Two-Door, With 3-Point Lock System
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Carbon Steel |
| Color | Ral 7035 |
| Depth | 11 4/5" |
| Door Material Thickness | 2 mm |
| Enclosure Material Thickness | 1.5 mm |
| Gland Plate Size | 6 |
| Height | 47 1/5" |
| Interchangeable Door Catch | Yes |
| Lock | Lock Version: 3-Point Locking System NO. Of Locks: 1 Lock Insert: 3 mm Double-Bit |
| Material | Housing: Carbon Steel Door: Carbon Steel, All-Round Foamed-In Pu Seal |
| Mounting Plate Height | 1175 mm |
| Mounting Plate Thickness | 2.5 mm |
| Mounting Plate Width | 945 mm |
| No. Of Doors | 2 |
| No. Of Grand Plate | 2 |
| Pcf/ve (cradle To Gate) | 236.1 Kg CO2 Eq (Cat B) |
| Surface Finish | Housing And Door: Dipcoat Primed, Powder Coated On The Outside, Textured Paint Mounting Panel: Zinc Plated |
| Type Rating According To Ul 50e | Type 1, Type 12 |
| Width | 39 2/5" |
Shipping Info:
| Ship weight (kg) | 73.06 |
| Ship height (cm) | 119.89 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 100.08 |
