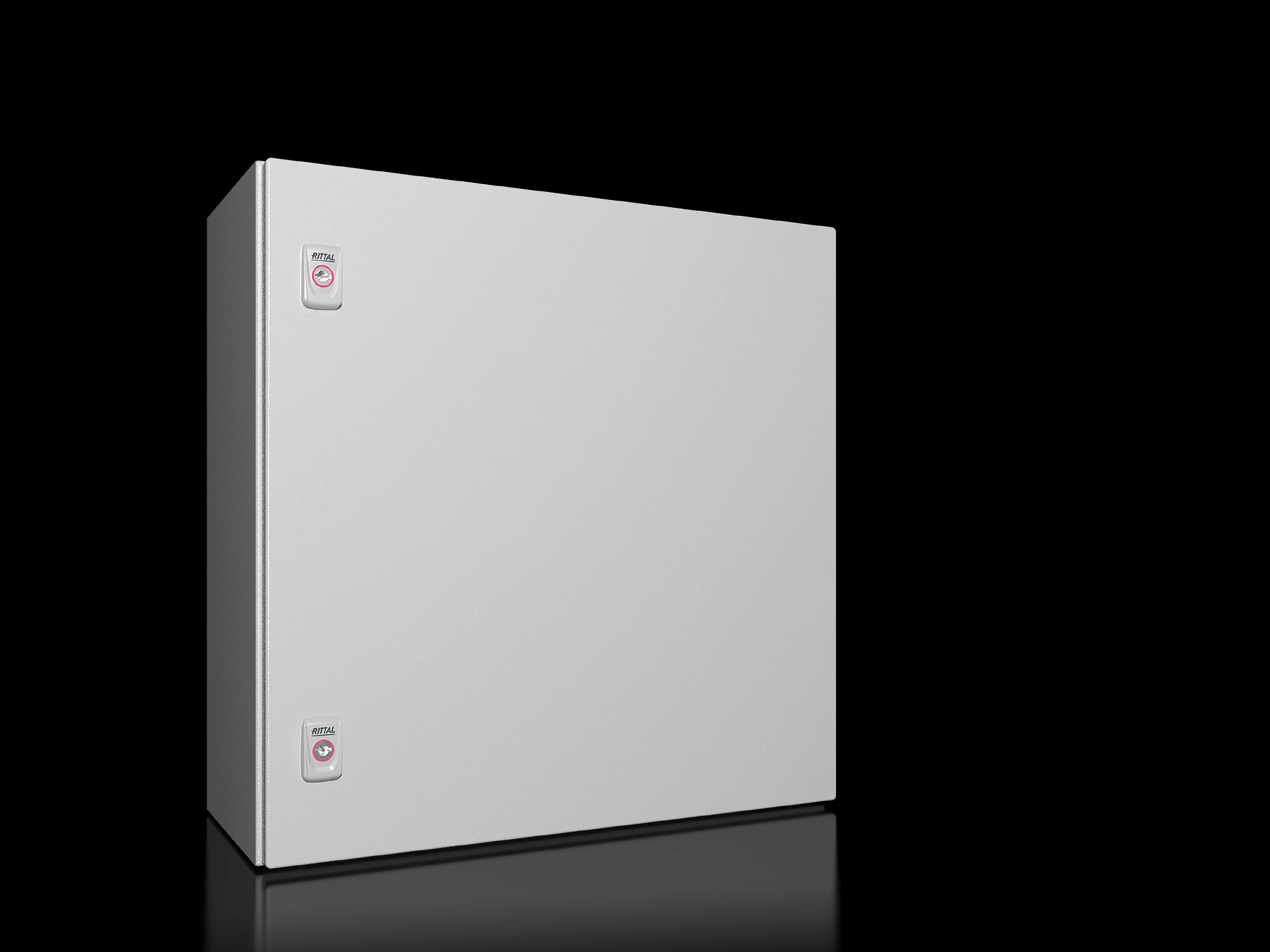

RITTAL AX 1054000 Wall-Mounted Enclosure, 600 X 600 X 250 Mm, Carbon Steel, With Mounting Panel, Single-Door, With Two Cam Locks
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Material | Carbon Steel |
| Color | Ral 7035 |
| Depth | 9 21/25" |
| Door Material Thickness | 1.5 mm |
| Enclosure Material Thickness | 1.5 mm |
| Gland Plate Size | 4 |
| Height | 23 3/5" |
| Interchangeable Door Catch | Yes |
| Lock Insert Size | 3 mm |
| Lock Insert Type | Double Bit |
| Lock Type | Cam |
| Material | Housing: Carbon Steel Door: Carbon Steel, All-Round Foamed-In Pu Seal |
| Mounting Plate Height | 575 mm |
| Mounting Plate Thickness | 2.5 mm |
| Mounting Plate Width | 550 mm |
| No. Of Doors | 1 |
| No. Of Grand Plate | 1 |
| No. Of Locks | 2 |
| Pcf/ve (cradle To Gate) | 85.5 Kg CO2 Eq (Cat B) |
| Surface Finish | Housing And Door: Dipcoat Primed, Powder Coated On The Outside, Textured Paint Mounting Panel: Zinc Plated |
| Type Rating According To Ul 50e | Type 1, Type 3R, Type 4, Type 12 |
| Width | 23 3/5" |
Shipping Info:
| Ship weight (kg) | 23.17 |
| Ship height (cm) | 59.94 |
| Ship length (cm) | 24.99 |
| Ship width (cm) | 59.94 |
