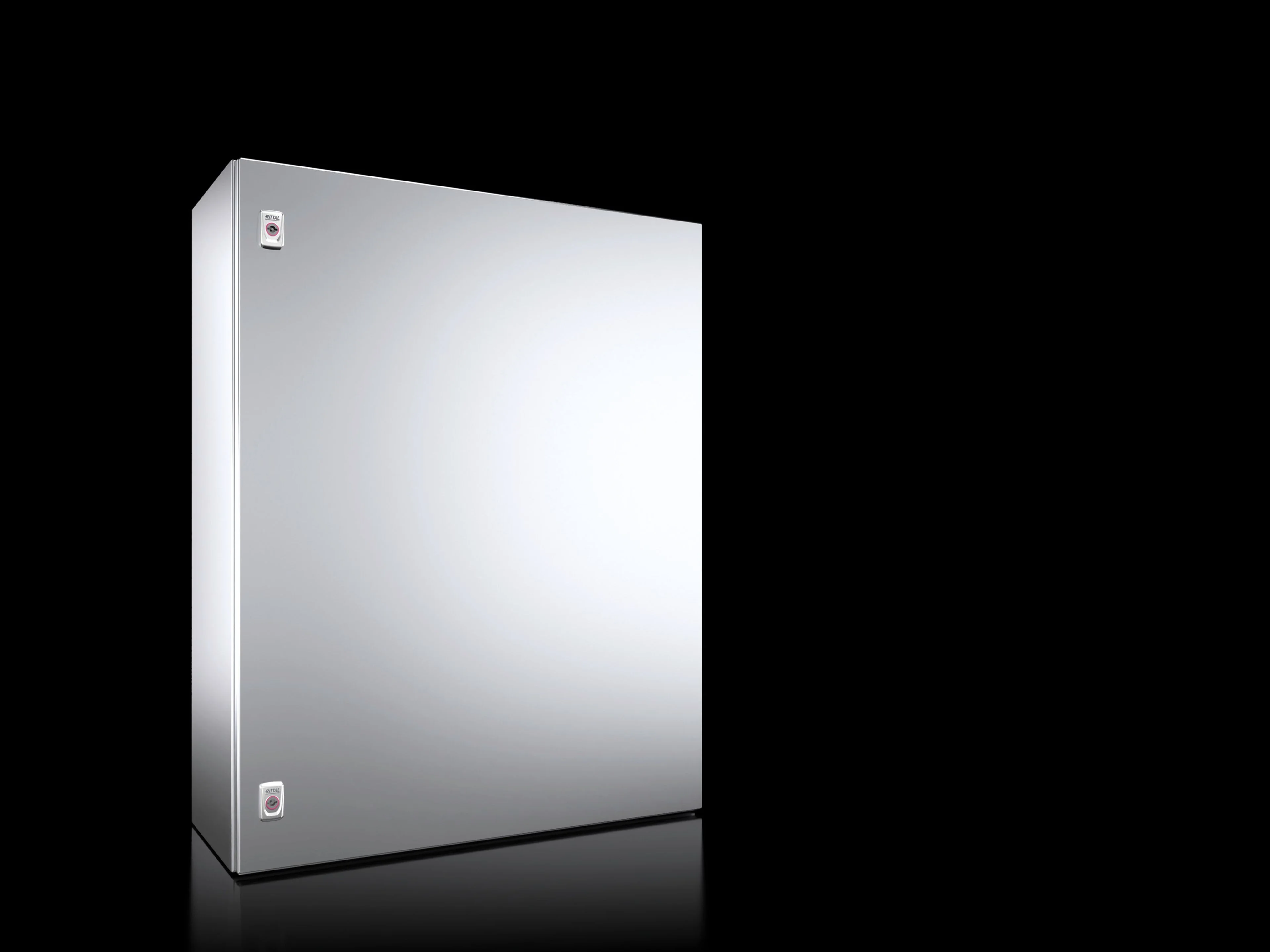

RITTAL AX 1016000 Wall-Mounted Enclosure, 800 X 1000 X 300 Mm, 304 Stainless Steel, With Mounting Panel, Single-Door, With Two Cam Locks
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Enclosure |
| Base Grade | Grade AISI 316L |
| Base Material | Stainless Steel |
| Depth | 11 4/5" |
| Door Material Thickness | 2 mm |
| Enclosure Material Thickness | 1.5 mm |
| Height | 39 2/5" |
| Lock | Lock Version: Cam NO. Of Locks: 2 Lock Insert: 3 mm Double-Bit Material Lock: Die-Cast Zinc |
| Material | Housing: Stainless Steel Door: Stainless Steel, All-Round Foamed-In Pu Seal Mounting Plate: Carbon Steel Stainless Steel 1.4301 (Aisi 304) |
| Mounting Plate Height | 975 mm |
| Mounting Plate Thickness | 2.5 mm |
| Mounting Plate Width | 745 mm |
| No. Of Doors | 1 |
| Surface Finish | Housing And Door: Brushed, Grain 400, Peak To Valley Height Less than 0.8 µm Mounting Panel: Zinc Plated |
| Type Rating According To Ul 50e | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| Width | 31 1/2" |
Shipping Info:
| Ship weight (kg) | 50.49 |
| Ship height (cm) | 100.08 |
| Ship length (cm) | 29.97 |
| Ship width (cm) | 80.01 |
