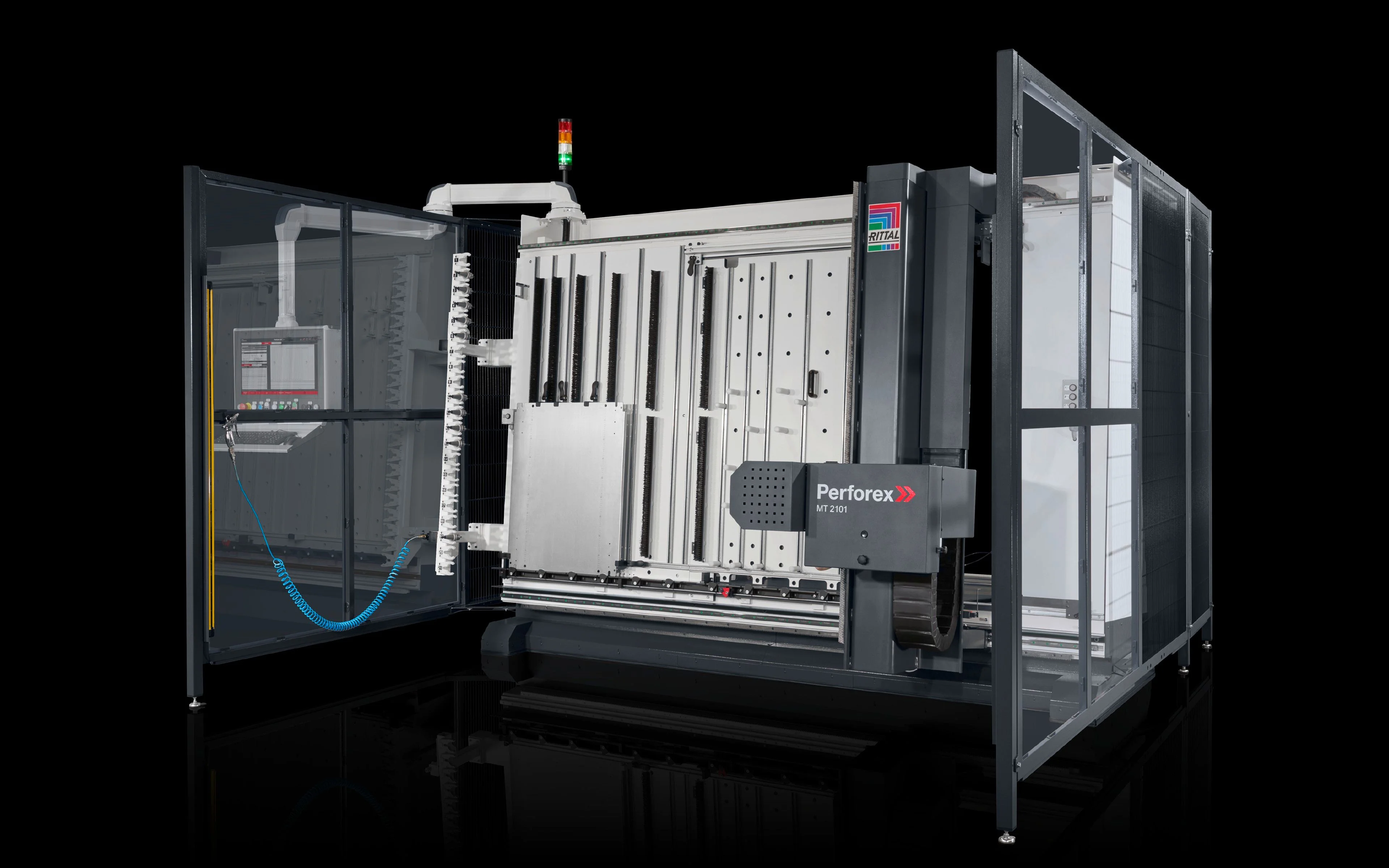

RITTAL AS 4055922 Perforex Milling Terminal Mt 2101 S
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Terminal |
| Compressed Air Connection | 6 Bar |
| Control Voltage | 24V DC |
| Interfaces | Rittal Panel Processing Center (Rippc), Eplan Pro Panel, Rittal Configuration System, Dxf Data Import |
| Machine Controller | Order Control With Rittal Panel Processing Center (RIPPC), Operation With Rittal Hmi |
| Machine Options | Signal Pillar 4055.954, Side Access 4055.952, 4055.951 Support Arm System, Cube Machining 2000 mm 4055.953, 2 Additional Zero Points For Multi-Part Machining 4050.066, Null |
| Machining Accuracy | -0.2 mm to +0.2 mm |
| Max. Clamping Panel Depth | 5 mm |
| Max. Clamping Panel Height | 1700 mm |
| Max. Clamping Panel Width | 2450 mm |
| Max. Depth Of Clampable Enclosures | 1600 mm |
| Max. Height Of Clampable Enclosures | 1600 mm |
| Max. Machinable Height For Enclosures | 1600 mm |
| Max. Machinable Width For Enclosures | 1200 mm |
| Max. Machining Speed | 1500 mm/min. |
| Max. Rated Amps | 6.2A |
| Max. Spindle Power | 11 kW |
| Max. Spindle Speed | 21000 RPM |
| Max. Width Of Clampable Enclosures | 1400 mm |
| Min. Clamping Panel Depth | 1.25 mm |
| Min. Clamping Panel Height | 100 mm |
| Min. Clamping Panel Width | 100 mm |
| Min. Depth Of Clampable Enclosures | 140 mm |
| Min. Height Of Clampable Enclosures | 100 mm |
| Min. Width Of Clampable Enclosures | 100 mm |
| No. Of Workstations | 21 |
| Rated Operating Voltage | 400-480/230-277V |
| Security | Safety Fence According To Din En Iso 13857, Optical Protective Device In Front Of And Behind The Machine, Safe Braking Of The Axes Even In The Event Of A Power Failure |
| Speed X/y Axis | 60000 mm/min. |
| Speed Z Axis | 12000 mm/min. |
| Support Area Depth | 3750 mm |
| Support Area Height | 2450 mm |
| Support Area Width | 4600 mm |
| Workable Material | Aluminum, Steel, Stainless Steel, Plastic, Copper |
Shipping Info:
| Ship weight (kg) | 2692.8 |
| Ship height (cm) | 160 |
| Ship length (cm) | 375.92 |
| Ship width (cm) | 459.74 |
