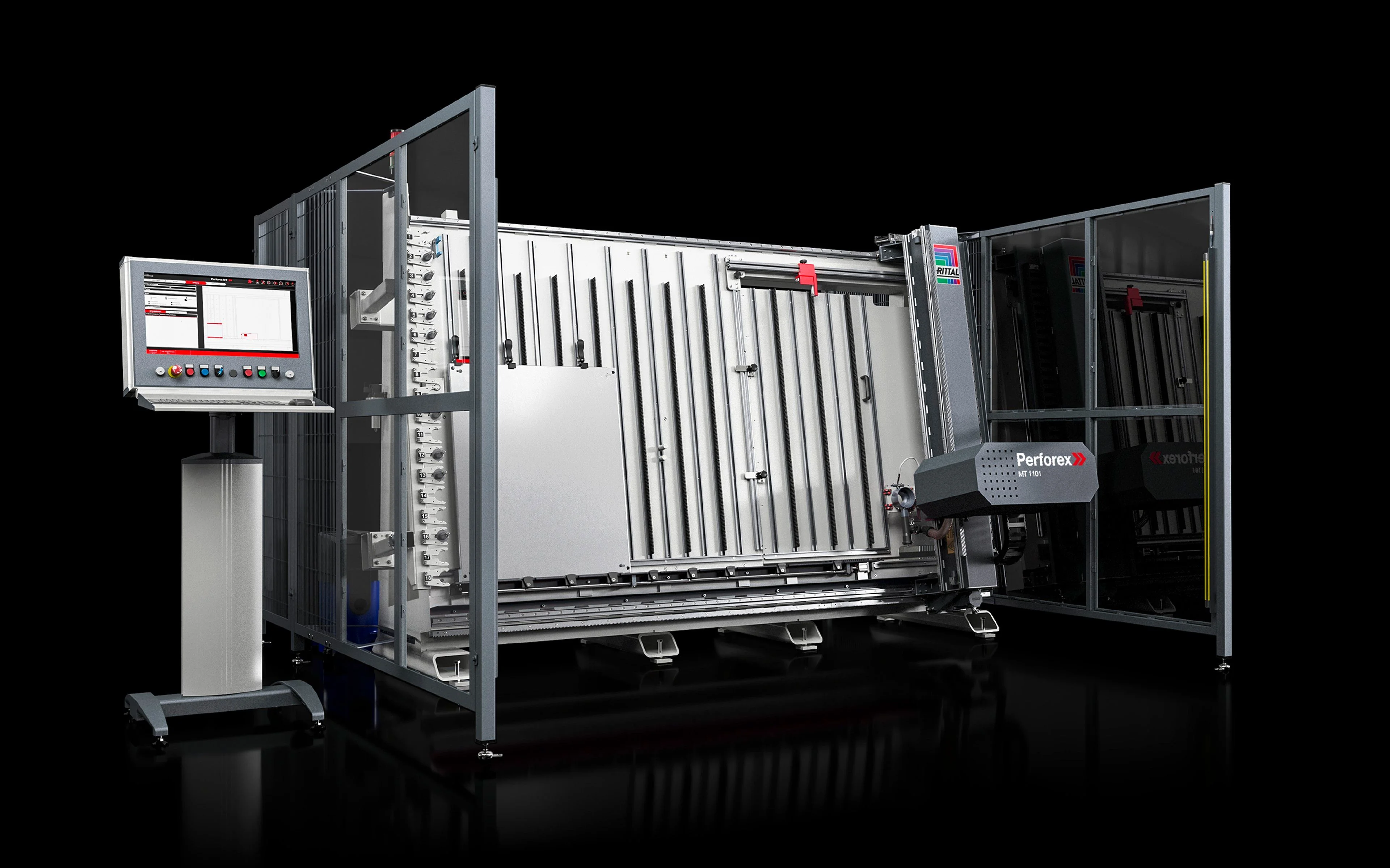

RITTAL AS 4055912 Perforex Milling Terminal Mt 1101 S

Item: ED4LWNModel: AS 4055912

In Stock

Get it by Monday, Aug 24

Request a Quote

Payment

Delivery

Product Specifications:

Item	Terminal
Compressed Air Connection	6 Bar
Control Voltage	24V DC
Interfaces	Rittal Panel Processing Center (Rippc), Eplan Pro Panel, Rittal Configuration System, Dxf Data Import
Machine Controller	Order Control With Rittal Panel Processing Center (RIPPC), Operation With Rittal Hmi
Machine Options	2 Additional Zero Points For Multi-Part Machining 4050.110
Machining Accuracy	-0.2 mm to +0.2 mm
Max. Clamping Panel Depth	5 mm
Max. Clamping Panel Height	1500 mm
Max. Clamping Panel Width	2450 mm
Max. Depth Of Clampable Enclosures	1400 mm
Max. Height Of Clampable Enclosures	1400 mm
Max. Machinable Height For Enclosures	1400 mm
Max. Machinable Width For Enclosures	750 mm
Max. Machining Speed	1500 mm/min.
Max. Rated Amps	6.2A
Max. Spindle Power	11 kW
Max. Spindle Speed	21000 RPM
Max. Width Of Clampable Enclosures	1200 mm
Min. Clamping Panel Depth	1.25 mm
Min. Clamping Panel Height	100 mm
Min. Clamping Panel Width	100 mm
Min. Depth Of Clampable Enclosures	140 mm
Min. Height Of Clampable Enclosures	100 mm
Min. Width Of Clampable Enclosures	100 mm
No. Of Workstations	18
Rated Operating Voltage	400-480/230-277V
Security	Safety Fence According To Din En Iso 13857, Optical Protective Device In Front Of And Behind The Machine, Safe Braking Of The Axes Even In The Event Of A Power Failure
Speed X/y Axis	60000 mm/min.
Speed Z Axis	12000 mm/min.
Workable Material	Aluminum, Steel, Stainless Steel, Plastic, Copper
