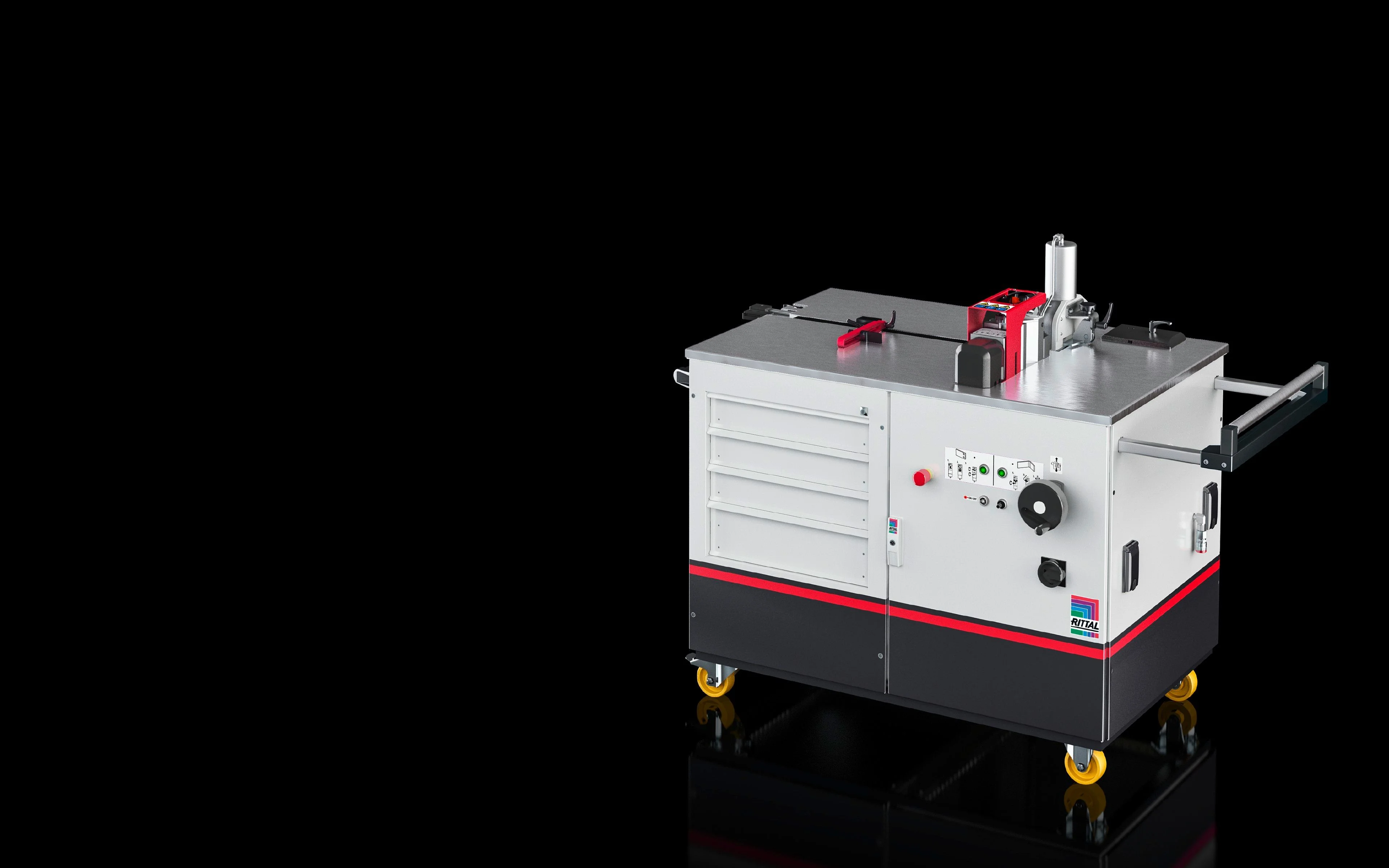

RITTAL AS 4055800 Busbar Machining. The Cw 120 – M Mobile Station Is Ideal For Bending, Punching And Cutting Busbars.
Get it by Friday, Aug 21
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Busbar |
| Contact Surface Depth | 811 mm |
| Contact Surface Width | 1211 mm |
| Max. Bending Angle | 90° |
| Max. Length Stop | 1224 mm |
| Max. Stamping/material Thickness | 12 mm |
| Min. Bending/leg Length | 50 mm |
| Min. Z Bend | 72 mm |
| Permissible Operating Pressure (p. Max.) | 700 Bar |
| Rated Operating Voltage | 230V |
| Rated Power | 2.2 kW |
| Workable Material | Copper, Aluminum |
| Working Height | 974 mm |
Shipping Info:
| Ship weight (kg) | 488.07 |
| Ship height (cm) | 127 |
| Ship length (cm) | 81.03 |
| Ship width (cm) | 121.16 |
