RITTAL 3241124 Axial Fan 24vdc 10 Inch H 10 Inch Width
Item: AF2VQFModel: 3241124Cross Ref: 6YDN5
7 In Stock
Ships within 2 days via
10.00% off
€1,043.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Axial Fan |
| Amps | 0.78A |
| Bearing Type | Ball |
| Blade Material | Steel |
| Cfm @ 0.000-in. Sp | 106 CFM |
| Depth | 5 3/16" |
| Electrical Connection | Terminals |
| Electrical Connection - Fans | Terminals |
| Environmental Applications | Equipment Cooling |
| Fan Mounting Location | Enclosure |
| Fan Shape | Square |
| Fan Voltage | 24V DC |
| Height | 10 1/8" |
| Housing Material | PBT Plastic |
| Includes | Complete Unit Ready For Connection Including Filter Mat |
| Ip Rating | IP54 |
| Motor Insulation | Class B |
| Motor Type | DC |
| Mounting Eye O.c. | 8 13/16" |
| Mounting Eye O.c. | 8-13/16" |
| Mounting Location | Enclosure |
| Mounting Position | Horizontal/Vertical |
| Requires | Hardwire |
| Shape | Square |
| Sound Level | 54 dBA |
| Thermal Protection | Impedance |
| Voltage | 24V DC |
| Wattage | 19 W |
| Width | 10 1/8" |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 15.49 |
| Ship length (cm) | 27.18 |
| Ship width (cm) | 27.18 |
| HS code | 8414596090 |
| Country of Origin | DE |
Product Variants
| Product | Model | Height | Electrical Connection | Housing Material | Depth | Voltage | Cfm @ 0.000-in. Sp | Blade Material | Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9969937 | 11 7/16" | Pre Wired | Aluminum | - | 115V AC | 102 CFM | Polycarbonate | Vertical | €484.51 | |
|
9969939 | 11 7/16" | Pre Wired | Aluminum | 1 3/4" | 230V AC | 102 CFM | Polycarbonate | Vertical | €484.51 | |
 |

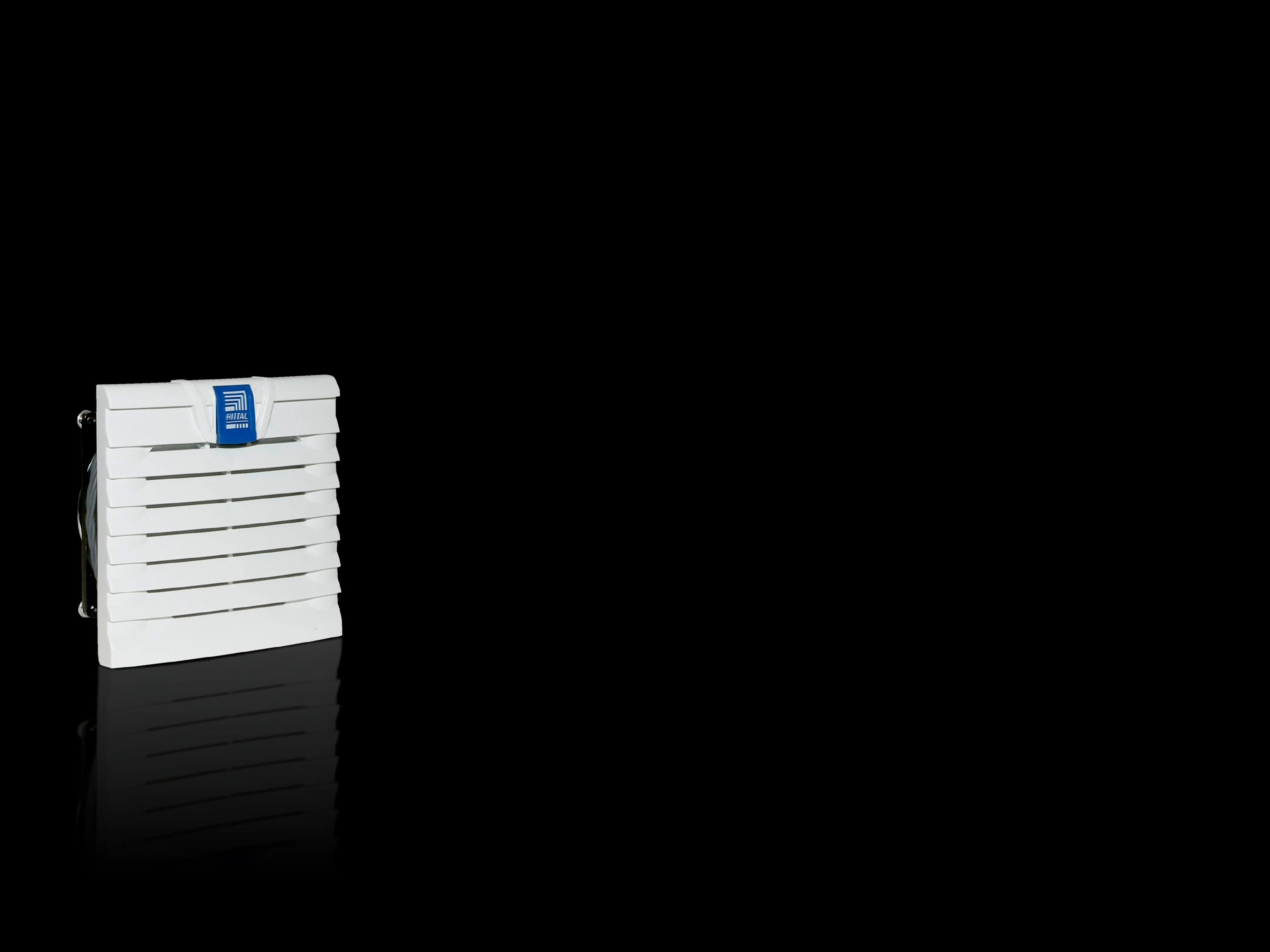

3237110 | 4 5/8" | Terminals | PBT Plastic | 2 5/16" | 115V AC | 81 CFM | Steel | Horizontal/Vertical | €356.99 | |
 |

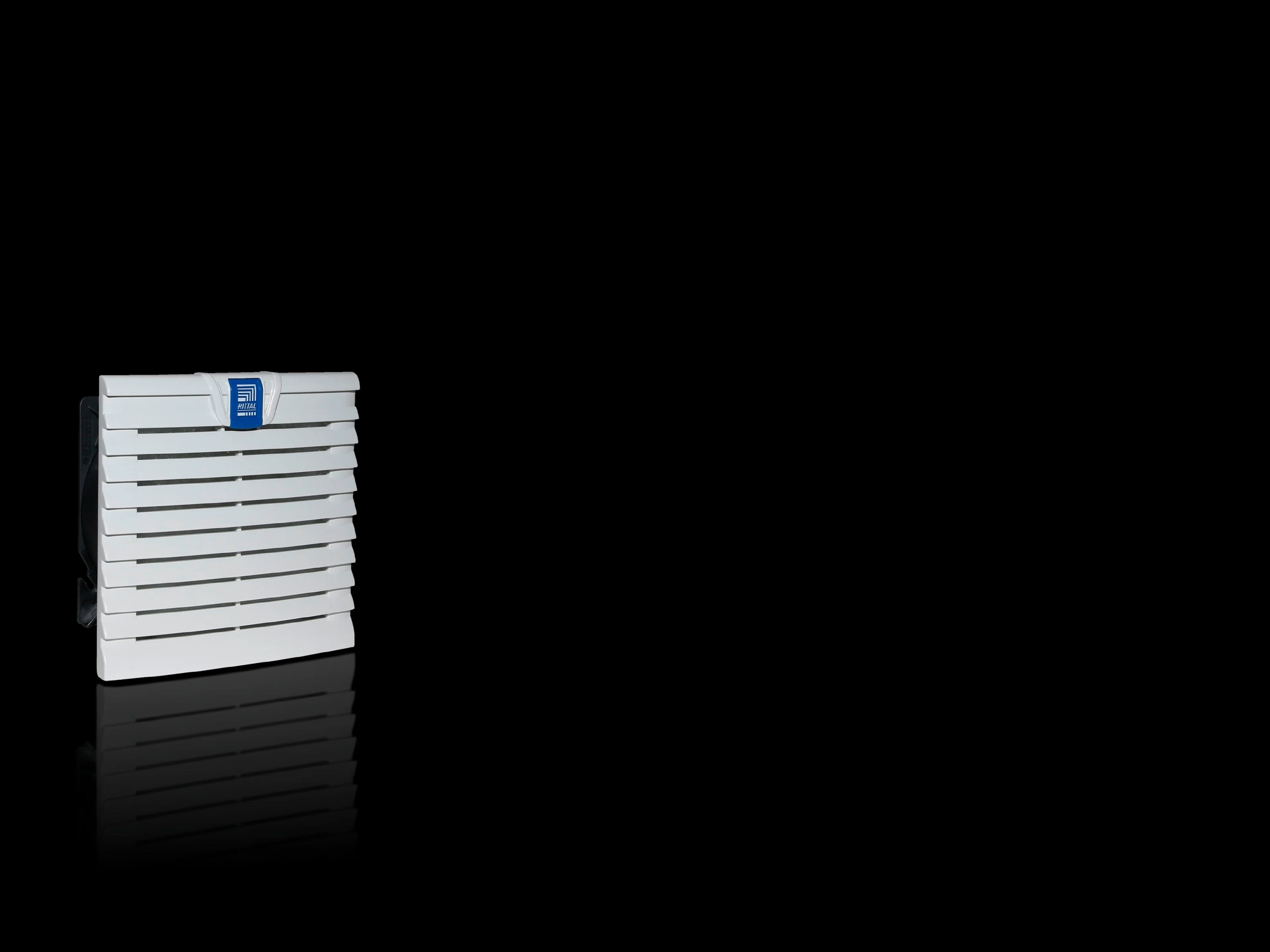

3238110 | 5 13/16" | Terminals | PBT Plastic | 2 7/8" | 115V AC | 15 CFM | Steel | Horizontal/Vertical | €554.74 | |
 |

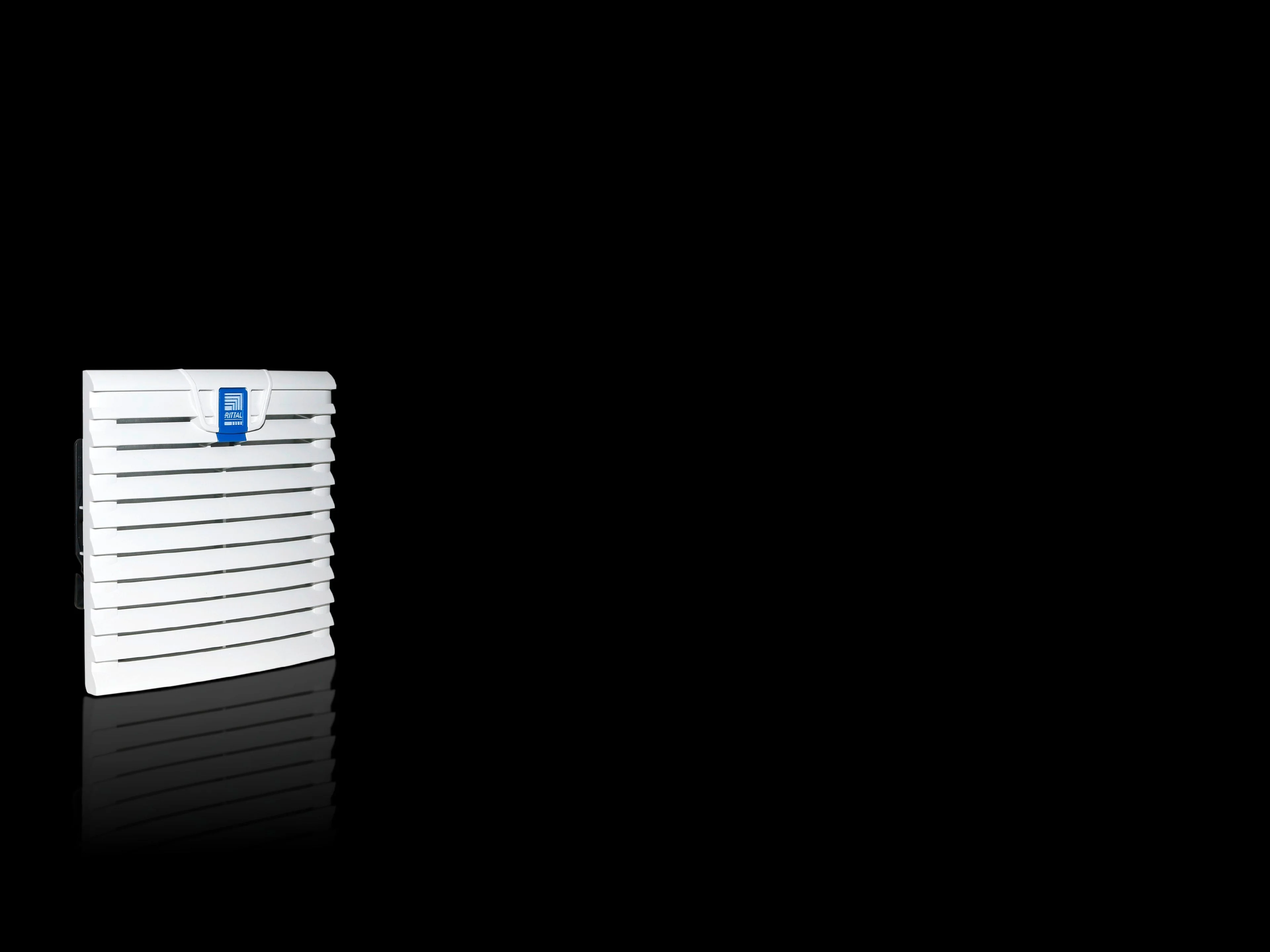

3239110 | 8" | Terminals | PBT Plastic | 4 1/2" | 115V AC | 39 CFM | Steel | Horizontal/Vertical | €656.80 | |
 |
3240110 | 10 1/8" | Terminals | PBT Plastic | 5 3/16" | 115V AC | 71 CFM | Steel | Horizontal/Vertical | €705.35 | |
 |
3241110 | 10 1/8" | Terminals | PBT Plastic | 5 3/16" | 115V AC | 106 CFM | Steel | Horizontal/Vertical | €702.93 |
