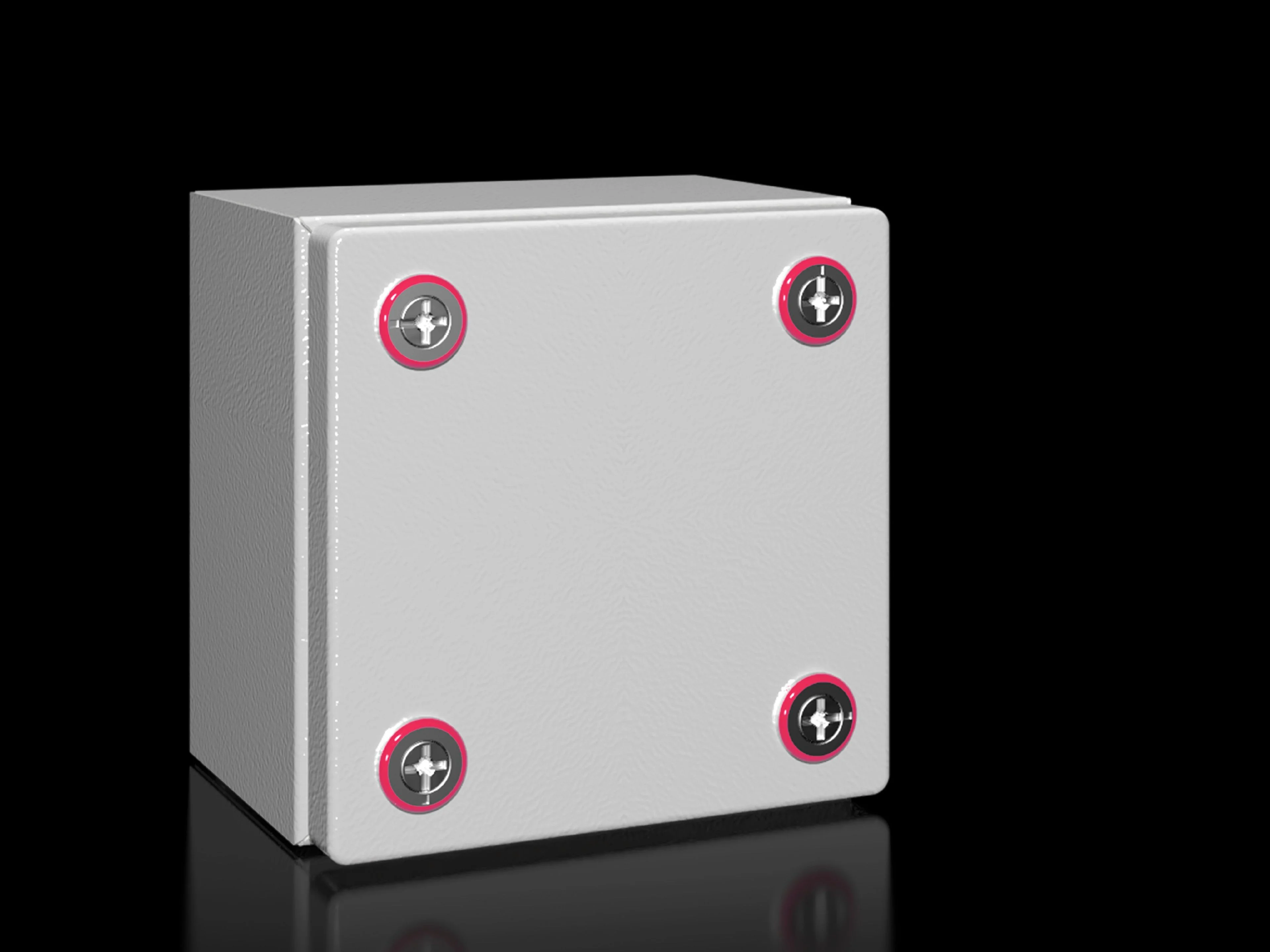

RITTAL 1500000 Terminal Box, 150 mm Height, 150 mm Width, 4.72 Inch Depth, Wall
Item: CN2RXQModel: 1500000Cross Ref: 783X95
7 In Stock
Ships within 2 days via
10.00% off
€131.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Terminal Box |
| Base Material | Carbon Steel |
| Body Material Thickness | 0.05" |
| Closure Method | Screws |
| Color | Light Gray |
| Compatible Panel Model Number | 1560800 |
| Cover Closure Type | Hinged |
| Cover Material Thickness | 0.05" |
| Cover Style | Solid |
| Depth | 4 18/25" |
| Enclosure Cover Features | Hinge |
| Enclosure Cover Type | Hinged |
| Enclosure Material | Steel |
| Environment | Washdown |
| Finish | Powder Coated |
| Gasket Material | Polyurethane |
| Includes | Mini Cam Lock, Cover |
| Includes Knockouts | Knockouts Not Included |
| Ip Rating | IP66 |
| Item - Electrical Enclosure | Enclosure |
| Material Of Enclosure | Steel |
| Material Thickness | 1.25 mm |
| Material Thickness - Cover | 1.25 mm |
| Metallic / Non-metallic | Metallic |
| Mounting | Wall |
| Mounting Type | Wall |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 3R, NEMA 4 |
| Nominal Depth | 5" |
| Nominal Height | 5" |
| Nominal Width | 5" |
| Overall Depth | 4.72" |
| Overall Height | 5.91" |
| Overall Width | 5.91" |
| Panel Height | 5.91" |
| Panel Width | 5.91" |
| Product Type | Small Enclosure Terminal Box |
| Usable Opening Depth | 4.07" |
| Width | 150 mm |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 15 |
| Ship length (cm) | 11.99 |
| Ship width (cm) | 15 |
| Country of Origin | DE |
