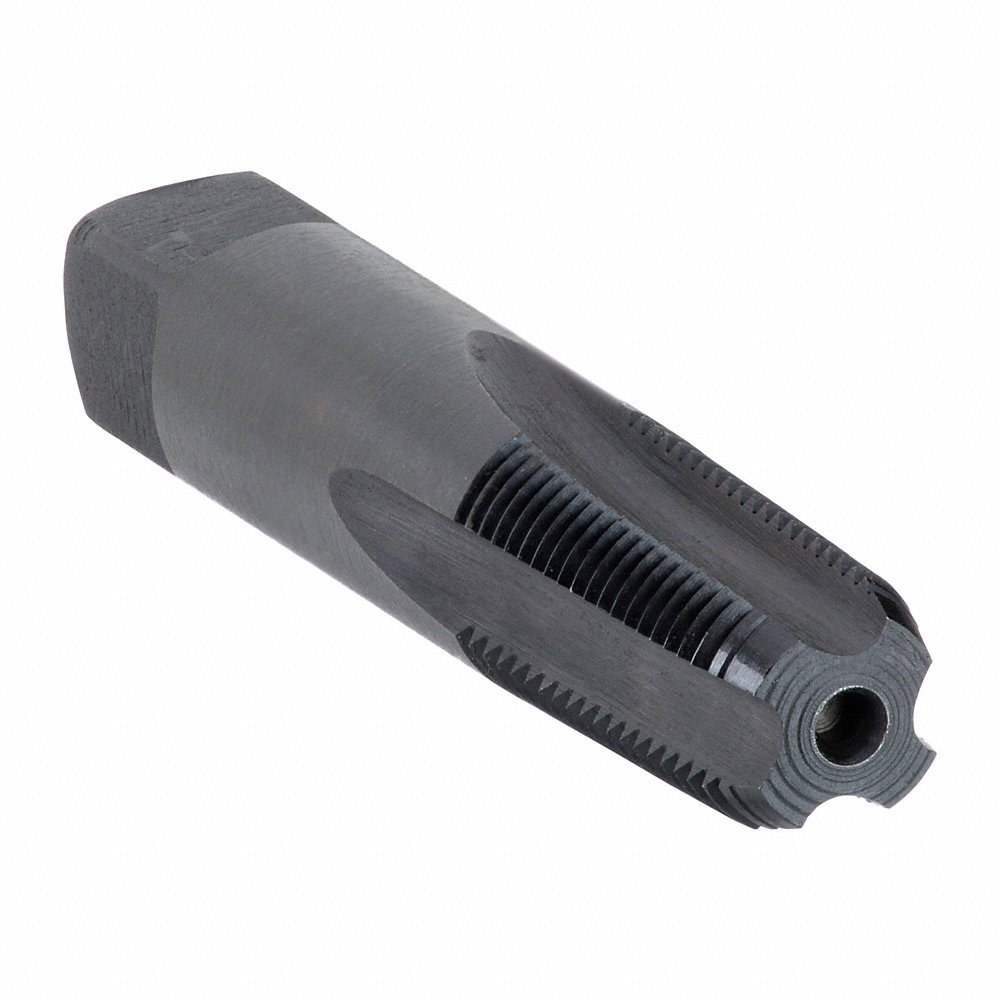

RIDGID 35815 E-5112 Pipe Tap Taper 1/8-27 Black Oxide 4 flute
Item: AH8DMYModel: 35815Cross Ref: 38HY54 / E-5112
7 In Stock
Ships within 2 days via
10.00% off
€35.07 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 75% Thread Drill Size | 0.3281" |
| Dimension Type | Pipe |
| Drill Bit Size | 21/64" |
| Extended Neck | Yes |
| Finish | Black Oxide |
| Helix Angle | 0° |
| List Number | 35815 |
| Material | High Speed Steel |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Number Of Pieces | 1 |
| Overall Length | 2 1/8" |
| Shank Dia. | 9/32" |
| Spiral Direction | Right Hand |
| Standards | Ansi, Asme B1.20-1983 |
| Tap Chamfer | Taper |
| Tap Finish | Black Oxide |
| Tap Material | Carbon Steel |
| Tap Style | Pipe |
| Tap Thread Size | 1/8"-27 |
| Tap Type | Pipe |
| Thread Direction | Right Hand |
| Thread Length | 3/4" |
| Thread Size | 1/8"-27 |
| Thread Standard | NPT |
| Threads Per Inch | 27 |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 11.18 |
| Ship width (cm) | 1.78 |
| Country of Origin | US |
Product Details:
- Tap Grouping : Tap
- Pitch Diameter Limit : Not Rated
Product Variants
| Model | Thread Length | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Size | Shank Dia. | Tap Thread Size | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 35825 | 1 1/16" | 2 9/16" | 0.5625" | 4 | 3/8"-18 | 33/64" | 3/8"-18 | 9/16" | €59.26 | |
| 35835 | 1 3/8" | 3 1/4" | 0.9063" | 5 | 3/4"-14 | 37/64" | 3/4"-14 | 29/32" | €102.03 | |
| 35840 | 1 3/4" | 3 3/4" | 1.1406" | 4 | - | 53/64" | 1"-11-1/2 | 1 9/64" | €150.62 | |
| 35845 | 1 3/4" | 4 1/16" | 1.4844" | 4 | 1 1/4"-11 1/2 | 31/32" | 1 1/4"-11 1/2 | 1 31/64" | €208.86 | |
| 35850 | 1 3/4" | 4 1/4" | 1.7188" | 7 | 1 1/2"-11 1/2 | 1 1/8" | 1 1/2"-11 1/2 | 1 47/64" | €277.24 |
