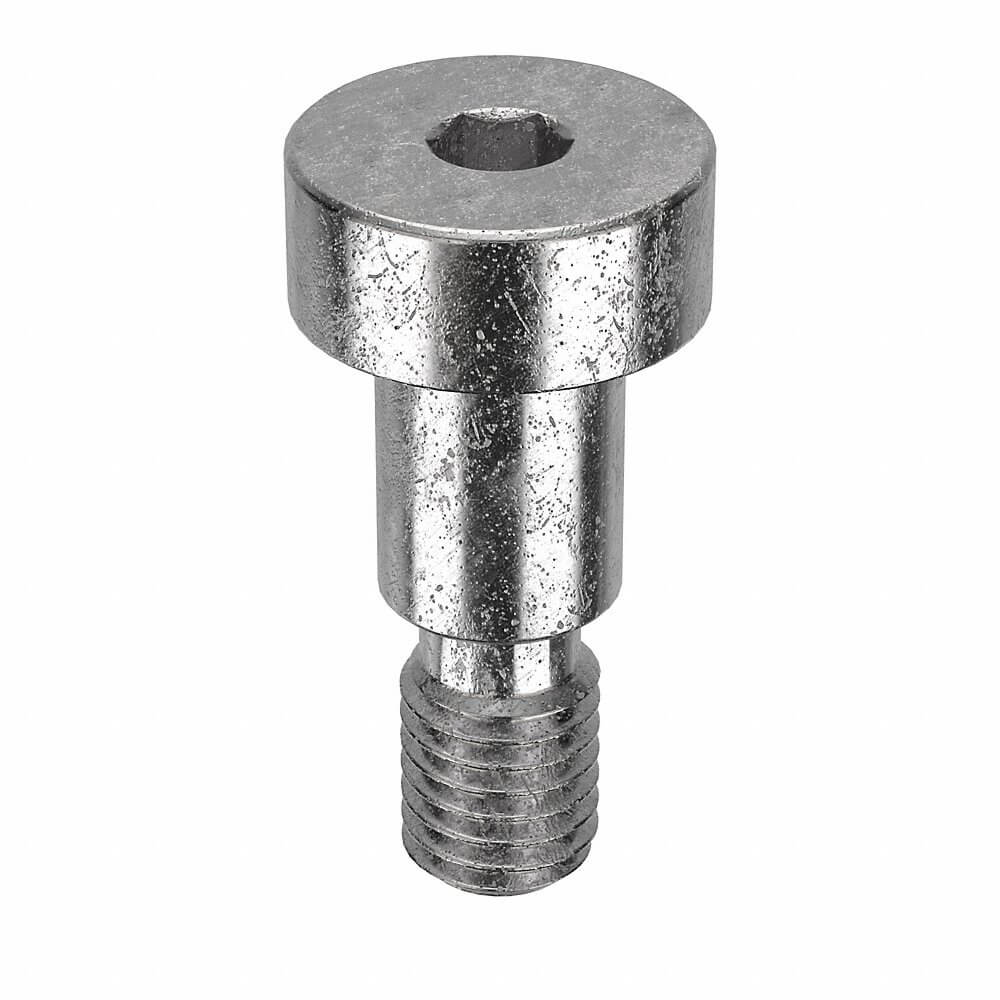

RICHARD MANNO CO. MSB4-43 Shoulder Screw, M10x1.5 Thread Size, 16mm Shoulder Lg., 8mm Head Ht., Precision, Gr. 416
Item: AE9MKVModel: MSB4-43Cross Ref: 6KU51
7 In Stock
Ships within 2 days via
5.00% off
€116.97 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 416 |
| Hardness | Rockwell C26-C32 |
| Head Dia. | 20 mm |
| Head Height | 8 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | Grade 416 |
| Min. Tensile Strength | 75000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | C26 to 32 |
| Shoulder Dia. | 12 mm |
| Shoulder Dia. Tolerance | -0.038 mm to 0 mm |
| Shoulder Length | 16 mm |
| Shoulder Length Tolerance | 0 mm to 0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 75000 psi |
| Thread Fit | 2A |
| Thread Length | 16 mm |
| Thread Size | M10 x 1.5 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 5.08 |
| HS code | 7318158030 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBIXX0370050-005P1 | 9/16" | 3/8" | 1/2" | 1/2" | 1/4" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €74.24 | |
 |
SBIXX0370062-005P1 | 9/16" | 3/8" | 5/8" | 1/2" | 1/4" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €70.70 | |
 |
SBIXX0500050-005P1 | 3/4" | 1/2" | 1/2" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €121.34 | |
 |
SBIXX0500062-005P1 | 3/4" | 1/2" | 5/8" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €112.07 | |
 |
SBIXX0500075-005P1 | 3/4" | 1/2" | 3/4" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €117.87 | |
 |
SBIXX0500100SP-005P1 | 3/4" | 1/2" | 1" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €133.72 | |
 |
4410-416SS | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 10 | €33.30 |
