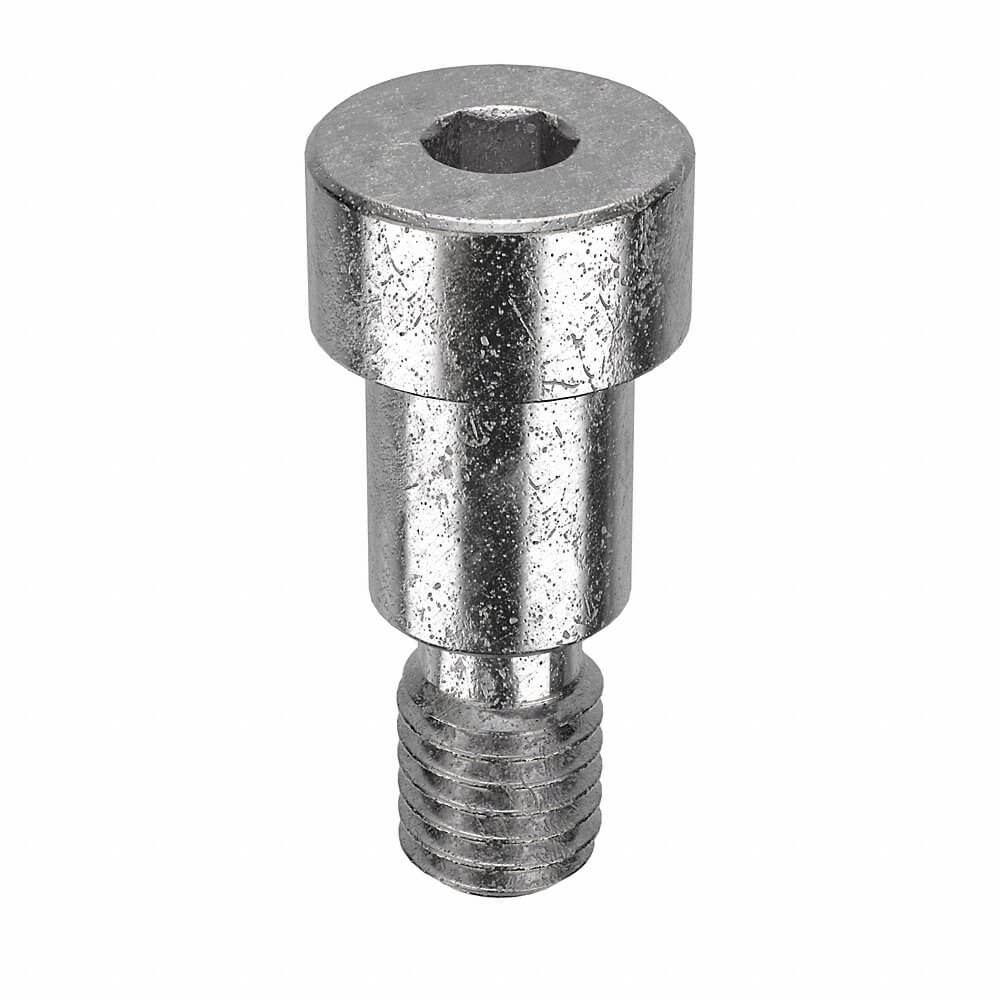

RICHARD MANNO CO. MSB4-40 Shoulder Screw, M8x1.25 Thread Size, 12mm Shoulder Lg., 7mm Head Ht., Precision, Gr. 416
Item: AE9MKNModel: MSB4-40Cross Ref: 6KU43
7 In Stock
Ships within 2 days via
10.00% off
€89.19 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Size | 5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 416 |
| Hardness | Rockwell C26-C32 |
| Head Dia. | 14 mm |
| Head Height | 7 mm |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | Grade 416 |
| Min. Tensile Strength | 75000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | C26 to 32 |
| Shoulder Dia. | 10 mm |
| Shoulder Diameter Tolerance | -0.038 mm to 0 mm |
| Shoulder Length | 12 mm |
| Shoulder Length Tolerance | 0 mm to 0.05 mm |
| System Of Measurement | Metric |
| Tensile Strength | 75000 psi |
| Thread Fit | 2A |
| Thread Length | 12 mm |
| Thread Size | M8 x 1.25 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
| HS code | 7318158030 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Drive Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBIXX0370050-005P1 | 5/16"-18 | 1/2" | 3/8" | 1/2" | -0.005" to +0.005" | 9/16" | 1/4" | 3/16" | 5 | €70.70 | |
 |
SBIXX0370062-005P1 | 5/16"-18 | 5/8" | 3/8" | 1/2" | -0.005" to +0.005" | 9/16" | 1/4" | 3/16" | 5 | €70.70 | |
 |
SBIXX0500050-005P1 | 3/8"-16 | 1/2" | 1/2" | 5/8" | -0.005" to +0.005" | 3/4" | 5/16" | 1/4" | 5 | €115.57 | |
 |
SBIXX0500062-005P1 | 3/8"-16 | 5/8" | 1/2" | 5/8" | -0.005" to +0.005" | 3/4" | 5/16" | 1/4" | 5 | €106.72 | |
 |
SBIXX0500075-005P1 | 3/8"-16 | 3/4" | 1/2" | 5/8" | -0.005" to +0.005" | 3/4" | 5/16" | 1/4" | 5 | €112.24 | |
 |
SBIXX0500100SP-005P1 | 3/8"-16 | 1" | 1/2" | 5/8" | -0.005" to +0.005" | 3/4" | 5/16" | 1/4" | 5 | €127.35 | |
 |
MSB4-37 | M6 x 1 | 16 mm | 10 mm | 11 mm | 0 mm to 0.05 mm | 12 mm | 6 mm | 4 mm | 5 | €69.49 |
