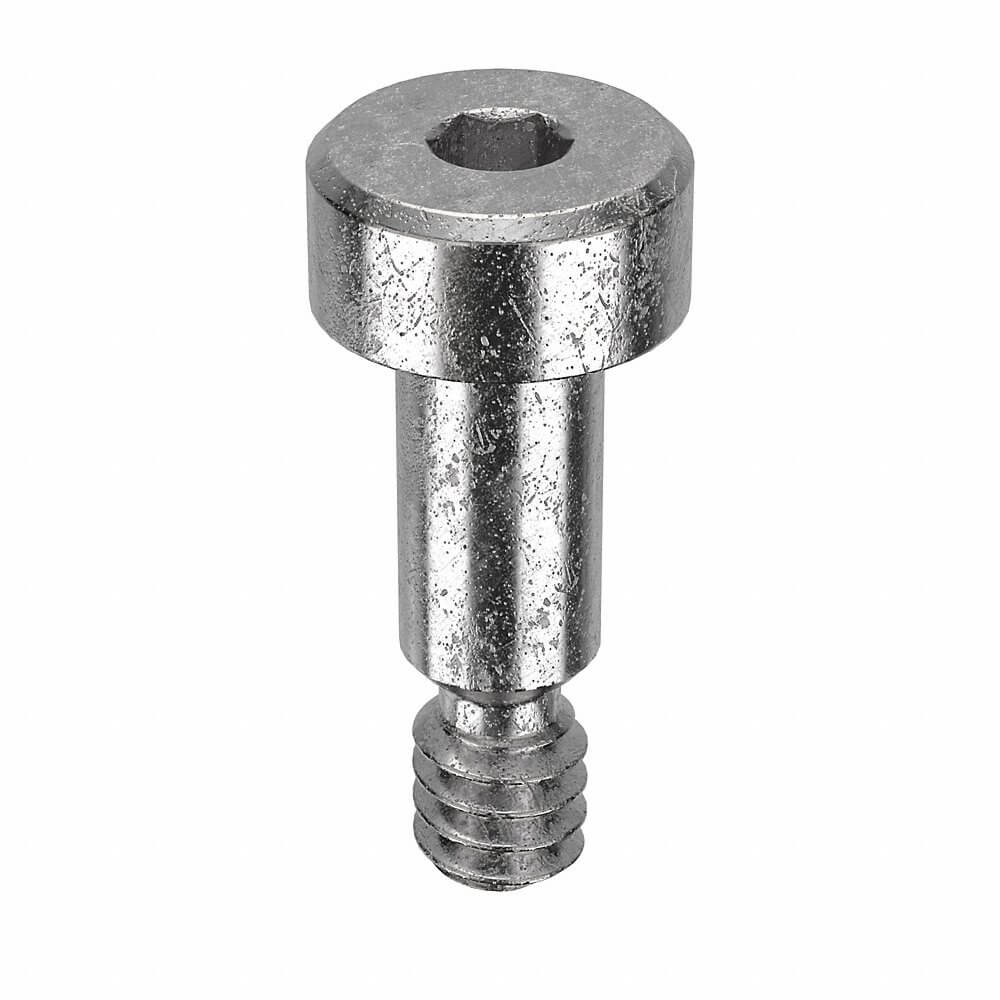

RICHARD MANNO CO. 4664 Shoulder Screw, 6-32 Thread Size, 5/16 In Shoulder Lg., 1/8 In Head Ht., Precision, Gr. 416
Item: AE9JNAModel: 4664Cross Ref: 6KA57
7 In Stock
Ships within 2 days via
13.00% off
€35.23 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Drive Size | 3/32" |
| Drive Type | Hex Socket |
| Finish | Plain |
| Grade | Grade 416 |
| Hardness | Rockwell C32-C43 |
| Head Dia. | 9/32" |
| Head Height | 1/8" |
| Head Type | Standard |
| Material | Stainless Steel |
| Min. Tensile Strength | 125000 psi |
| Shoulder Dia. | 5/32" |
| Shoulder Length | 5/16" |
| Shoulder Length Tolerance | 0.002" |
| System Of Measurement | Imperial |
| Thread Length | 3/16" |
| Thread Size | #6-32 |
| Type | Precision |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318156010 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBIXX0370050-005P1 | 9/16" | 3/8" | 1/2" | 1/2" | 1/4" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €74.24 | |
 |
SBIXX0370062-005P1 | 9/16" | 3/8" | 5/8" | 1/2" | 1/4" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €70.70 | |
 |
SBIXX0500050-005P1 | 3/4" | 1/2" | 1/2" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €121.34 | |
 |
SBIXX0500062-005P1 | 3/4" | 1/2" | 5/8" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €112.07 | |
 |
SBIXX0500075-005P1 | 3/4" | 1/2" | 3/4" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €117.87 | |
 |
SBIXX0500100SP-005P1 | 3/4" | 1/2" | 1" | 5/8" | 5/16" | Precision Shoulder Screw | -0.005" to +0.005" | 0.004" to 0" | 5 | €133.72 | |
 |
4410-416SS | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | Precision Shoulder Screw | 0" to 0.002" | 0.0015" to 0" | 10 | €33.30 |
