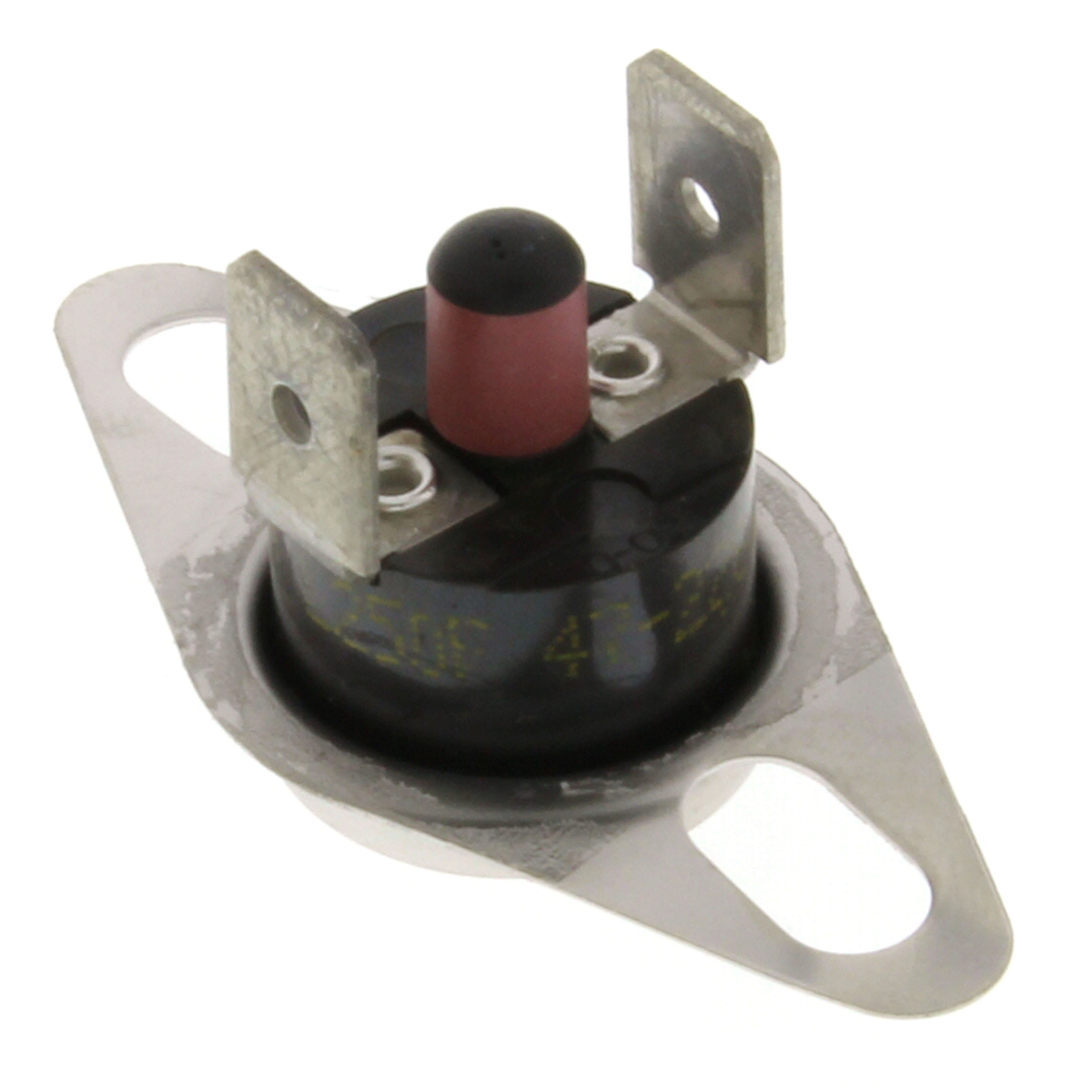

RHEEM 47-22861-03 Rollout Switch, L250F, M/R, Spst, Universal
Item: CT9AXBModel: 47-22861-03Cross Ref: 50PM99
7 In Stock
Ships within 2 days via
5.00% off
€25.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Switch |
| Close Temp. | -31°F |
| Connection Size | 1/4" |
| Connection Type | Quick Connects |
| Contact Orientation | Normally Closed |
| Disc Face | Exposed |
| Fits Brand | Rheem |
| For Use With | Universal |
| Max. Voltage Rating | 120/230V AC |
| Maximum Current Rating | 10/15A |
| Min. Manual Reset Temp. | 130°F |
| Mounting | Flanged Airstream |
| Mounting Insertion Depth - Maximum | 3/16" |
| No. Of Poles | 1 |
| Open Temp. | 250°F |
| Reset Mode | Manual |
| Switch Type | SPST |
| Tod Switch Series | 36T Series |
| Tolerance Open Temperature | -12°F to +12°F |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
