REVVO TS4 075 NY04 T19 Triangle Top Plate Caster 4-1/2 Inch Height
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€31.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Triangle Top Plate Kingpinless Caster |
| Bearing Type | Single Ball |
| Caster Brake Included | No |
| Caster Frame Material | Steel |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Kingpinless Swivel |
| Caster Temp. Range | Yes |
| Core Color | White |
| Core Material | Nylon |
| Durometer | 80 Shore D |
| Frame Finish | Polished Zinc |
| Frame Material | Steel |
| Hole Pattern | E |
| Inside Bolt Hole Spacing | 2 3/8" x 2 3/8" |
| Load Rating | 350 lbs. |
| Lock Type | No Lock Included |
| Material | Nylon |
| Mounting Bolt Dia. | 5/16" |
| Mounting Plate Size | 5 1/2" x 5 1/2" |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/2" x 5 1/2" |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 4 1/8" x 4 1/8" |
| Overall Height | 4 1/2" |
| Plate Size | 5 1/2" x 5 1/2" |
| Plate Thickness | 1/8" |
| Raceway | Single Ball |
| Replacement Wheel | 075 NY04 |
| Standards | Icwm |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Temp. Range | -4°F to +176°F |
| Tread Shape | Standard |
| Type | Kingpinless Swivel |
| Wheel Bearing Type | Plain Bore |
| Wheel Color | White |
| Wheel Core Material | Nylon |
| Wheel Material | Nylon |
| Wheel Width | 1 3/8" |
| Wheel/tread Material | Nylon |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| HS code | 8302200000 |
| Country of Origin | GB |
Product Variants
| Model | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Height | Core Color | Wheel Color | Core Material | Wheel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TS4 100 NY04 T19 | 1 3/8" | Plain | 500 lbs. | 5 1/2" | White | White | Nylon | Nylon | €50.57 | |

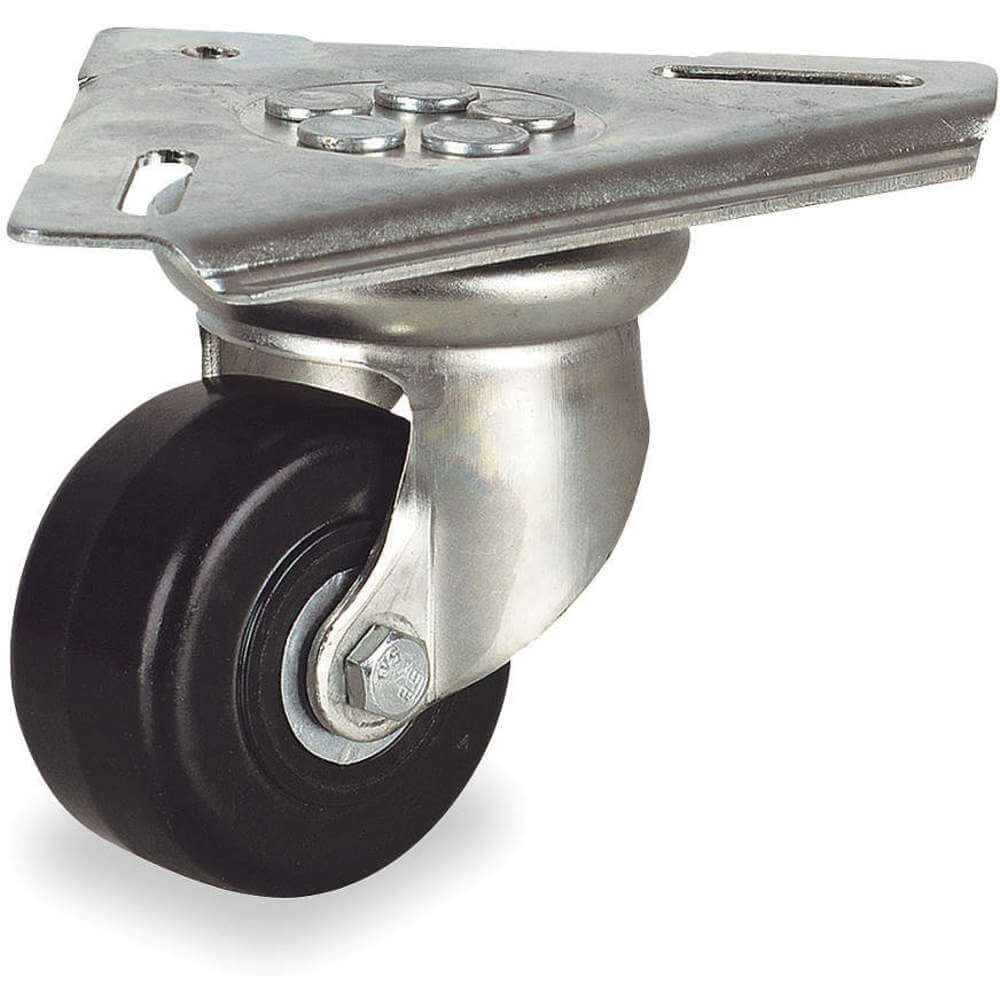

| TS4 075 RP14 T19 | 1 1/2" | Roller | 380 lbs. | 4 1/2" | Black | Black | Phenolic | Phenolic | €42.92 | |
| TS4 100 RP14 T19 | 1 1/2" | Roller | 550 lbs. | 5 1/2" | Black | Black | Phenolic | Phenolic | €51.23 |
