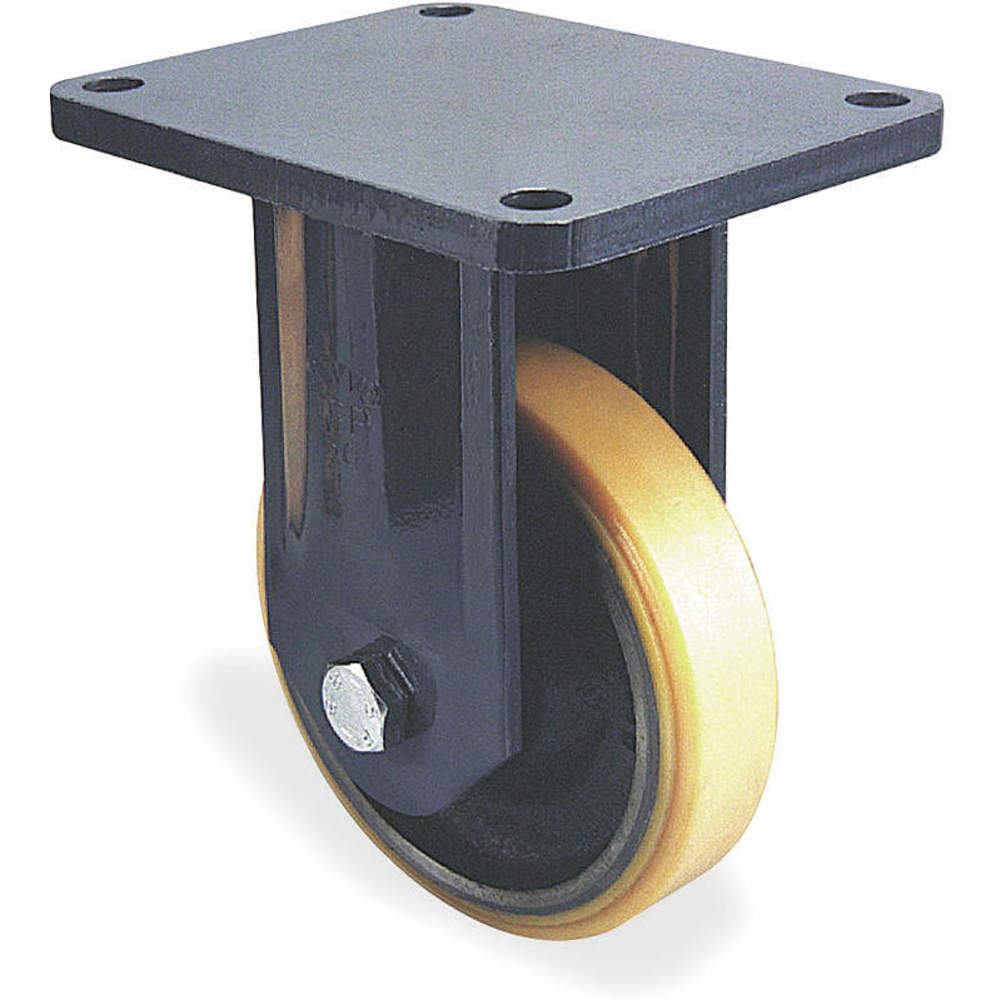

REVVO TFP150PT2HT22 Rigid Plate Caster 1600 Lb 6 Inch Diameter
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€325.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | Kingpinless Towable Casters |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Cast Iron |
| Durometer | 95 Shore A |
| Extended Lead | No |
| Frame Finish | Enamel |
| Frame Material | Steel |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3 3/8" x 5 1/4" |
| Load Rating | 1600 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 8 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size | 6" x 7 7/16" |
| Mounting Plate Size & Bolt Hole Pattern | 6" X 7 7/16" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | -22°F to +176°F |
| Outside Bolt Hole Spacing | 4 1/2" x 6 1/8" |
| Overall Height | 8 3/8" |
| Plate Size | 6" x 7 7/16" |
| Plate Thickness | 0.406" |
| Plate Type | A |
| Replacement Wheel | 150 PT2H |
| Standards | Icwm |
| Swivel Lock Type | No Lock Included |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Roller |
| Wheel Color | Tan |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 6" |
| Wheel Material | Polyurethane |
| Wheel Width | 1 1/2" |
| Wheel/tread Color | Tan |
| Wheel/tread Hardness | 92 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 6.01 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 15.24 |
| HS code | 3926909980 |
| Country of Origin | GB |
Product Variants
| Product | Model | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel/tread Material | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFSV 100 BN0S | A | 1 3/4" x 3" | 2 3/8" x 3 3/16" | 1 1/4" | Nylon | 330 lbs. | 5" | 3 1/8" x 4" | €19.86 | |
|
TFSV 125 BN0S | A | 1 3/4" x 3" | 2 3/8" x 3 3/16" | 1 1/4" | Nylon | 330 lbs. | 6" | 3 1/8" x 4" | €22.04 | |
 |
TFK 125 NT0E | A | 3" x 3" | 2 5/8" x 3 5/8" | 1 3/4" | Nythane | 550 lbs. | 6 1/2" | 4" x 4 1/2" | €77.93 | |
|
TFK 200 NT0E | A | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Nythane | 880 lbs. | 9 1/2" | 4" x 4 1/2" | €182.22 | |
 |
TFK 200 NY2H | A | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Nylon | 2200 lbs. | 9 1/2" | 4" x 4 1/2" | €288.04 | |
 |
TFH100PT1HT24 | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 1 1/2" | Polyurethane | 480 lbs. | 6 1/8" | 5 3/4" x 6 9/16" | €111.33 | |
 |
TFH100CI1HT24 | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 1 3/4" | Iron | 700 lbs. | 6 1/8" | 5 3/4" x 6 9/16" | €77.23 |
