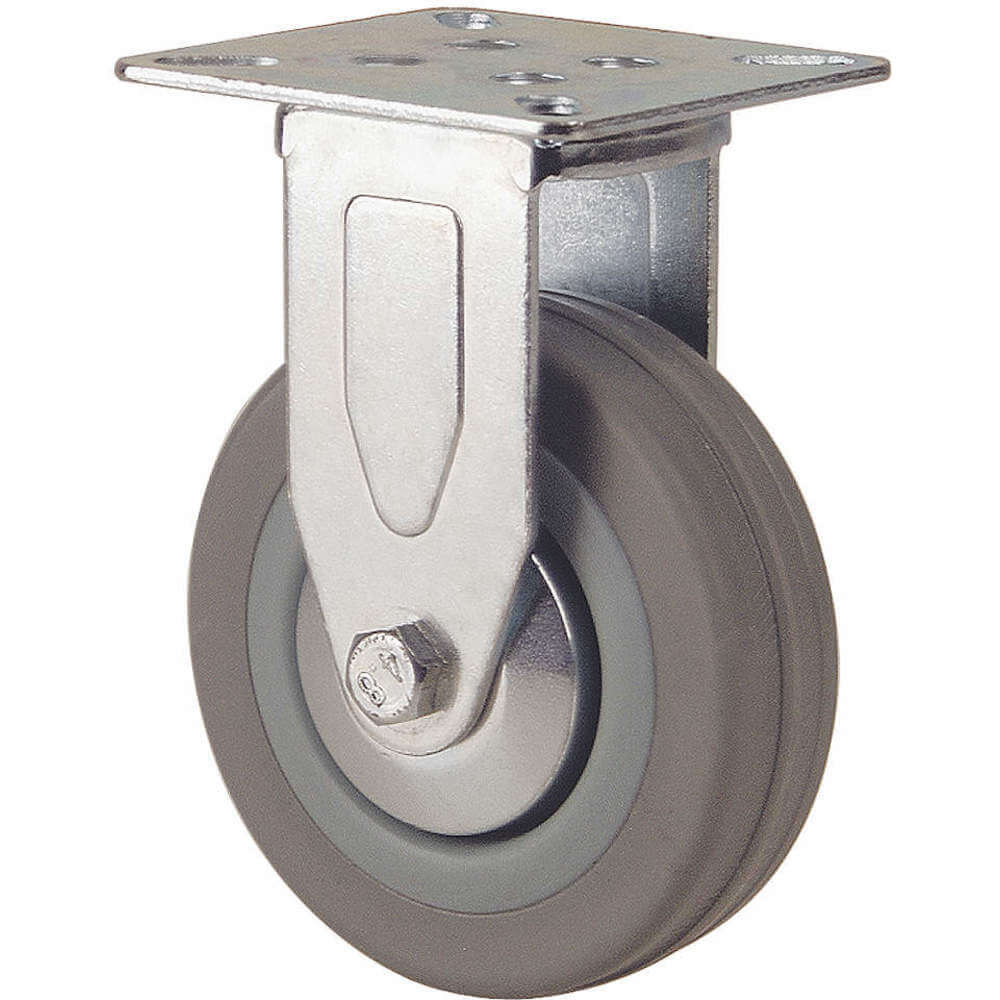

REVVO TFED 100 RN0D Rigid Plate Caster 176 Lb 4 Inch
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€13.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Application | All Purpose Industrial And Commercial Casters |
| Bearing Type | Precision Ball |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Rubber |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Caster Type | Rigid |
| Caster Wheel Material | Rubber |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Nylon |
| Durometer | 85 Shore A |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | B |
| Includes Thread Guards | Yes |
| Inside Bolt Hole Spacing | 2 1/4" x 2 1/4" |
| Load Rating | 176 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 5 3/16" |
| Mounting Plate Bolt Hole Pattern | D |
| Mounting Plate Size | 3" x 3" |
| Mounting Plate Size & Bolt Hole Pattern | 3" X 3" ( D ) |
| Non-marking | No |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Operating Temp. Range | +14°F to +104°F |
| Outside Bolt Hole Spacing | 2 1/4" x 2 1/4" |
| Overall Height | 5.187" |
| Plate Caster Core Material | Nylon |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Rubber |
| Plate Size | 3" x 3" |
| Plate Type | B |
| Raceway Type | Precision Ball |
| Standards | Iso 9001 |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double, Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Plain |
| Wheel Bearings | Plain |
| Wheel Color | Gray |
| Wheel Core Material | Nylon |
| Wheel Diameter | 4" |
| Wheel Width | 1 1/8" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 80 Shore A |
| Wheel/tread Hardness Rating | Soft |
| Wheel/tread Material | Rubber |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 13.34 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| HS code | 8302200000 |
Product Details:
- Plate Caster Brake (No)
- Thread Guard (No)
Product Variants
| Product | Model | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel/tread Material | Load Rating | Mounting Height | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

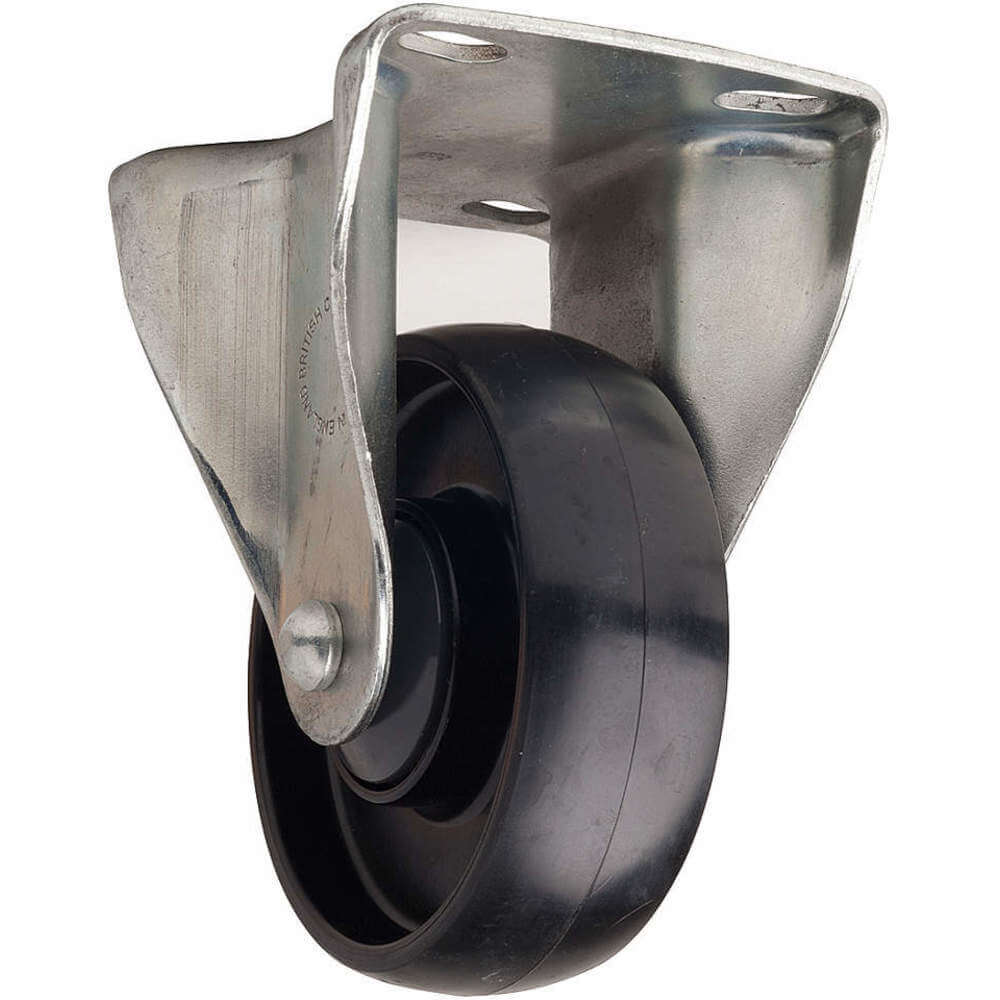

TFSV 100 BN0S | A | 1 3/4" x 3" | 2 3/8" x 3 3/16" | 1 1/4" | Nylon | 330 lbs. | 5" | 3 1/8" x 4" | €19.86 | |
|
TFSV 125 BN0S | A | 1 3/4" x 3" | 2 3/8" x 3 3/16" | 1 1/4" | Nylon | 330 lbs. | 6" | 3 1/8" x 4" | €22.04 | |
 |
TFK 125 NT0E | A | 3" x 3" | 2 5/8" x 3 5/8" | 1 3/4" | Nythane | 550 lbs. | 6 1/2" | 4" x 4 1/2" | €77.93 | |
|
TFK 200 NT0E | A | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Nythane | 880 lbs. | 9 1/2" | 4" x 4 1/2" | €182.22 | |
 |
TFK 200 NY2H | A | 2 5/8" x 3" | 3" x 3 5/8" | 2" | Nylon | 2200 lbs. | 9 1/2" | 4" x 4 1/2" | €288.04 | |
 |

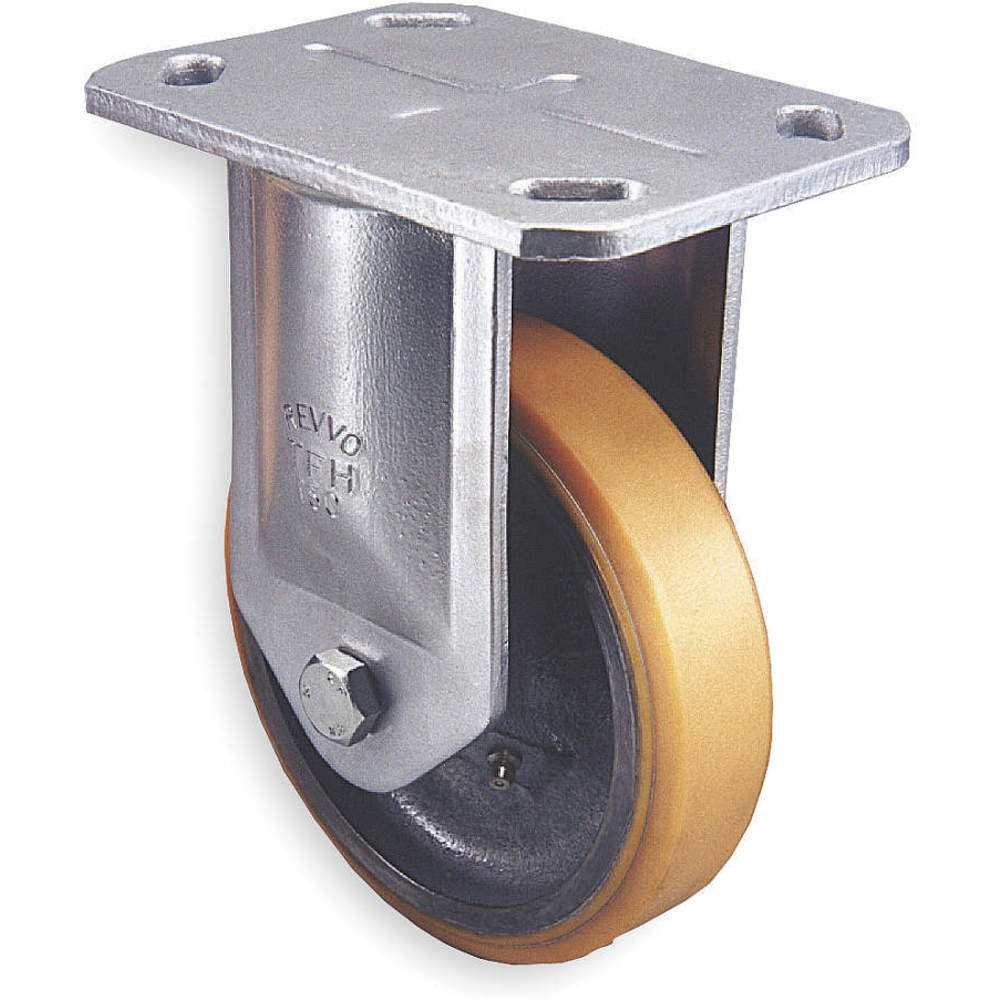

TFH100PT1HT24 | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 1 1/2" | Polyurethane | 480 lbs. | 6 1/8" | 5 3/4" x 6 9/16" | €111.33 | |
 |
TFH100CI1HT24 | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 1 3/4" | Iron | 700 lbs. | 6 1/8" | 5 3/4" x 6 9/16" | €77.23 |
