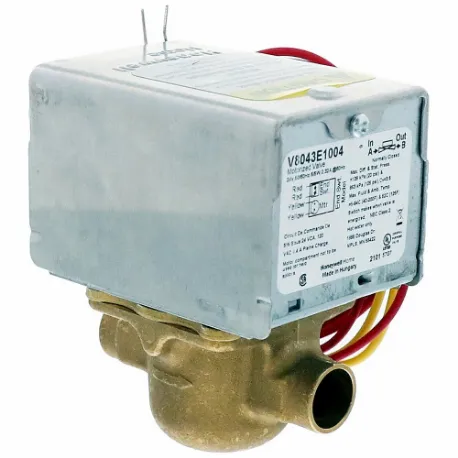

RESIDEO V8043E1004 Motorized Zone Valve, Sweat 1/2
Item: CR4DXVModel: V8043E1004Cross Ref: 2E870
7 In Stock
Ships within 2 days via
€146.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motorized Zone Valve |
| Actuator Return Action | Spring Return |
| Actuator Type | Electric |
| Application | Chilled/Hot Water Control |
| Body Material | Brass |
| Close Off Pressure | 20 psi |
| Coefficient Of Volume | 3.5 |
| Connection Size | Sweat |
| Connection Type | 1/2" |
| Contact Form | SPST |
| Control Signal | On/Off |
| Cv Flow Rate | 3.5 |
| Depth | 3.688" |
| Distance Between Inlet And Outlet Port | 3 11/16" |
| Electrical Lead Length | 18" |
| For Media | Water |
| For Use With | 2 Wire Control |
| Frequency | 50/60 Hz |
| Gasket Material | Buna N |
| Height | 5 1/4" |
| Included | 1/2 In Conduit Conection, End Switch, Manual Opening Lever, Spring Return |
| Included Actuator | Actuator Included |
| Included Electrical Leads | Electrical Leads Included |
| Installation Orientation | Horizontal |
| Lead Length | 18" |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 20 psi |
| Max. Fluid Temp. | 200°F |
| Max. Operating Temp. | 125°F |
| Max. Temp. | 200°F |
| Min. Actuator Control Pressure | Not Applicable |
| Min. Fluid Temp. | 50°F |
| Overall Depth | 2 3/8" |
| Overall Length | 4" |
| Overall Width | 3 1/2" |
| Port Connection Gender | Female |
| Port Connection Size | 1/2" |
| Port Connection Type | Sweat |
| Safe Working Water Pressure | 20 psi |
| Safe Working Water Psi | 20 psi |
| Spring Action | Spring Return |
| Standards | Csa, Ul Listed |
| Stem Material | Stainless Steel |
| Type | Normally Closed |
| Valve Action | Normally Closed |
| Valve Type | Ball |
| Voltage | 24V AC |
| Width | 2 3/8" |
Shipping Info:
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 6.03 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 8.89 |
| Country of Origin | HU |
