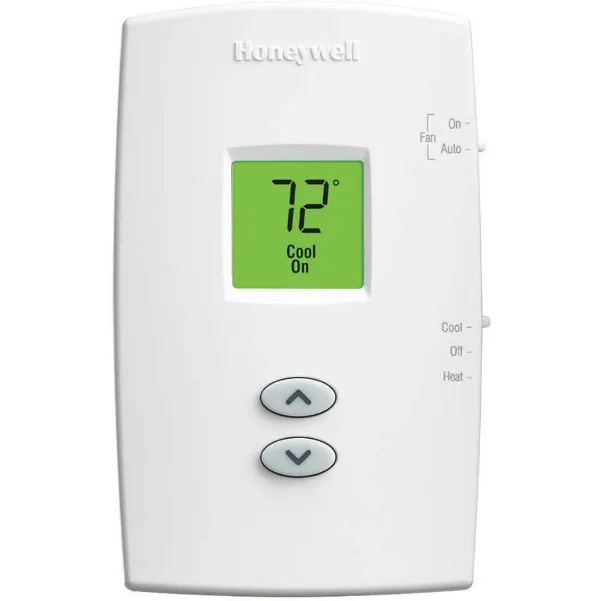

RESIDEO TH1110DV1009/U Vertical Non Programmable Thermostat, Backlit LCD Display
Item: AC2AQHModel: TH1110DV1009/UCross Ref: 2HFF4
7 In Stock
Ships within 2 days via
€72.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Low Voltage Thermostat |
| 750mv Compatible | Yes |
| Amps | 0.02-1A |
| Application | Heat Or Cool |
| Batteries Included | Yes |
| Battery Backup | Yes |
| Battery Type | (2) AAA Batteries |
| Changeover Type | Manual |
| Color | White |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump Without Aux, Millivolt |
| Contact Rating | 20/30V AC |
| Control Type | Push Button, Slide Switch |
| Dehumidification Control | No |
| Depth | 1 1/8" |
| Digit Size | Standard |
| Display | Digital Backlit |
| Display Type | Digital |
| Dual Transformer Compatible | No |
| Electrical Connection Type | Hardwired |
| Fan Settings | Auto-On |
| Fan Switching | Auto-On |
| Frequency | 50/60 Hz |
| Height | 4.688" |
| Housing Color | White |
| Humidification Control | No |
| Included Positive Off | Yes |
| Key Pad Lockout | No |
| Low Battery Indicator | Yes |
| Max. Control Temp. | 99°F |
| Max. Operating Humidity | 90% |
| Max. Operating Temp. | 120°F |
| Millivolt Compatible | Yes |
| Min. Control Temp. | 40°F |
| Min. Operating Humidity | 5% |
| Min. Operating Temp. | 32°F |
| Mounting | Vertical |
| Mounting Direction | Vertical |
| Mounting Location | Wall |
| Mounting Type | Surface Mount |
| No. Of Cooling Stages (conventional System) | 1 |
| No. Of Cooling Stages (heat Pump System) | 1 |
| No. Of Heating Stages (conventional System) | 1 |
| No. Of Heating Stages (heat Pump System) | 1 |
| No. Of Zones | 1 |
| Output Signal | Not Applicable |
| Overall Depth | 1 1/8" |
| Overall Height | 4 11/16" |
| Overall Width | 2 7/8" |
| Power Method | Hardwired/Battery |
| Programmable Fan | No |
| Programming Capability | Non Programmable |
| Shape | Rectangle |
| Stages | 1 H/1 C Conventional |
| Stages Cool | 1 |
| Stages Heat | 1 |
| Stages Heat Pump | 1 H/1 C Heat Pump |
| Stages Heating/cooling | 1 H/1 C Conventional, 1 H/1 C Heat Pump |
| System Settings | Cool-Heat-Off |
| System Switching | Heat-Cool-Off |
| Temp. Scale | Fahrenheit, Celsius |
| Terminal Designations | C, R, W |
| Thermostat Type | Low Voltage |
| Type | Low Voltage |
| Voltage | 20V AC |
| Width | 2 7/8" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 14.48 |
| Ship width (cm) | 8.89 |
| HS code | 9032100030 |
| Country of Origin | MX |
Product Details:
- Honeywell TH1110DV1009/U vertical non-programmable thermostat for monitoring temperatures in commercial cooling & heating systems
- Backlit display on a LCD screen with large easy-to-read digits for user convenience and a one-touch temperature setpoint access for hassle-free calibration
- Built-in compressor protection facility for resistance against damage from electrical fluctuations
- Features low battery indicator for warning before thermostat shuts down
- 1 heat / 1 cool stage with continuous fan cycle .
