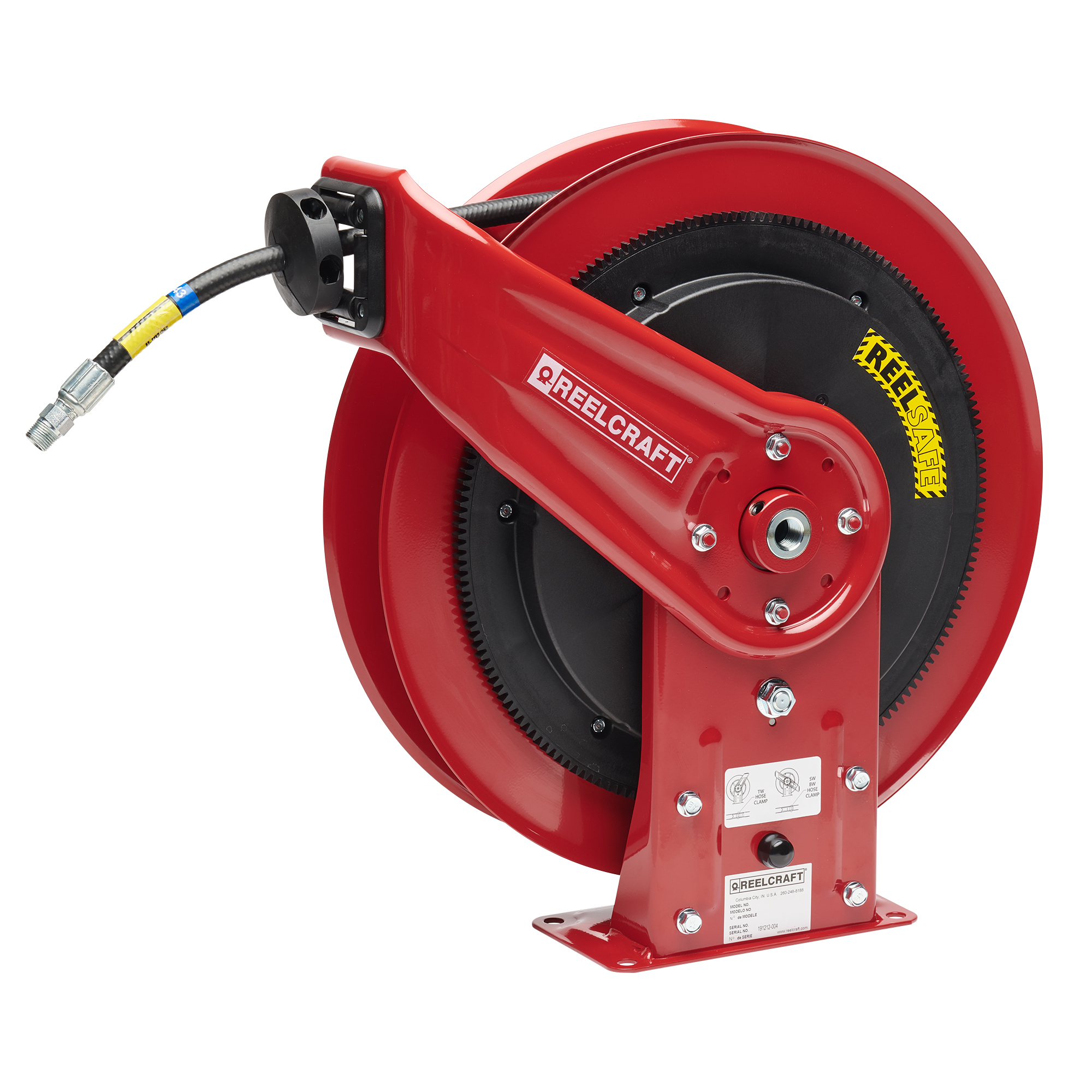

REELCRAFT RS7650 OMP Hose Reel, Controlled Return, Medium Pressure, 3/8 Inch x 50 ft. Size
Get it by Friday, Dec 19
10.00% off
€943.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Bearing Construction | Ball |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed | No |
| Fasteners Included | No |
| Features | Controlled Hose Retraction |
| Fitting Gender | Male x Male |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 20 1/4" |
| Hose Capacity | 50 ft. |
| Hose Color | Black |
| Hose Cover Material | Synthetic Rubber |
| Hose End Configuration | 3/8" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Steel |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Steel |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
| Hose Inside Diameter | 3/8" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 11/16" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | Synthetic Rubber |
| Includes | Hose, Bumper |
| Includes Hose | Yes |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Latch Type | Spring Loaded |
| Length | 19 3/4" |
| Max. Pressure | 2600 psi |
| Max. Temp. | 210°F |
| Maximum Operating Pressure | 2600 psi |
| Maximum Operating Temperature | 210°F |
| Minimum Operating Temperature | 32°F |
| Mount Base Height | 8 61/64" |
| Mount Base Width | 3 7/8" |
| Mount Hole Diameter | 1/2" |
| Mounting | Ceiling, Floor, Wall |
| Mounting Hole Center To Center Height | 7 13/16" |
| Mounting Hole Center To Center Width | 3 7/8" |
| Number Of Guide Arms | 1 |
| Number Of Mount Holes | 4 |
| Overall Height | 20 1/4" |
| Overall Length | 19 3/4" |
| Overall Width | 7" |
| Pedestal Type | Single Pedestal |
| Product Datasheet | reelcraft-5450elp.pdf |
| Reel Color | Black, Red |
| Reel Diameter | 9" |
| Reel Finish | Powder Coated |
| Reel Material | Carbon Steel |
| Reel Width | 7" |
| Retraction Speed | 2 mph |
| Series | 7000 Series |
| Speed Limited Retraction | Yes |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 1/2" |
| Swivel Inlet Thread Size | 1/2"-14 |
| Swivel Inlet Type | NPT |
| Swivel Material | Steel |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/2" |
| Swivel Outlet Thread Size | 1/2"-14 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Weight | 58 lbs. |
| Width | 7" |
Shipping Info:
| Ship weight (kg) | 26.1 |
| Ship height (cm) | 64.77 |
| Ship length (cm) | 59.37 |
| Ship width (cm) | 23.81 |
| Country of Origin | US |
Product Details:
,The new REELSAFE® Series RS7000 hose reel is an expansion of the rugged design that set the industry standard. With safety at the forefront, REELSAFE® pays out like a traditional reel, though is specifically engineered to retract the hose at an average walking speed. The centrifugal clutch, integral to the reel base, greatly ,decelerates the hose retraction speed by up to 83%, vs. a Series 7000 reel., , ,Retracts at 2 miles per hour – designed to match the average human walking speed of 2 to 3 miles per hour, ,Integral clutch creates a consistent retraction speed regardless of fluid or environmental temperatures, ,Safely protects personnel and equipment, ,Requires no field adjustment, ,Made in USA, ,
