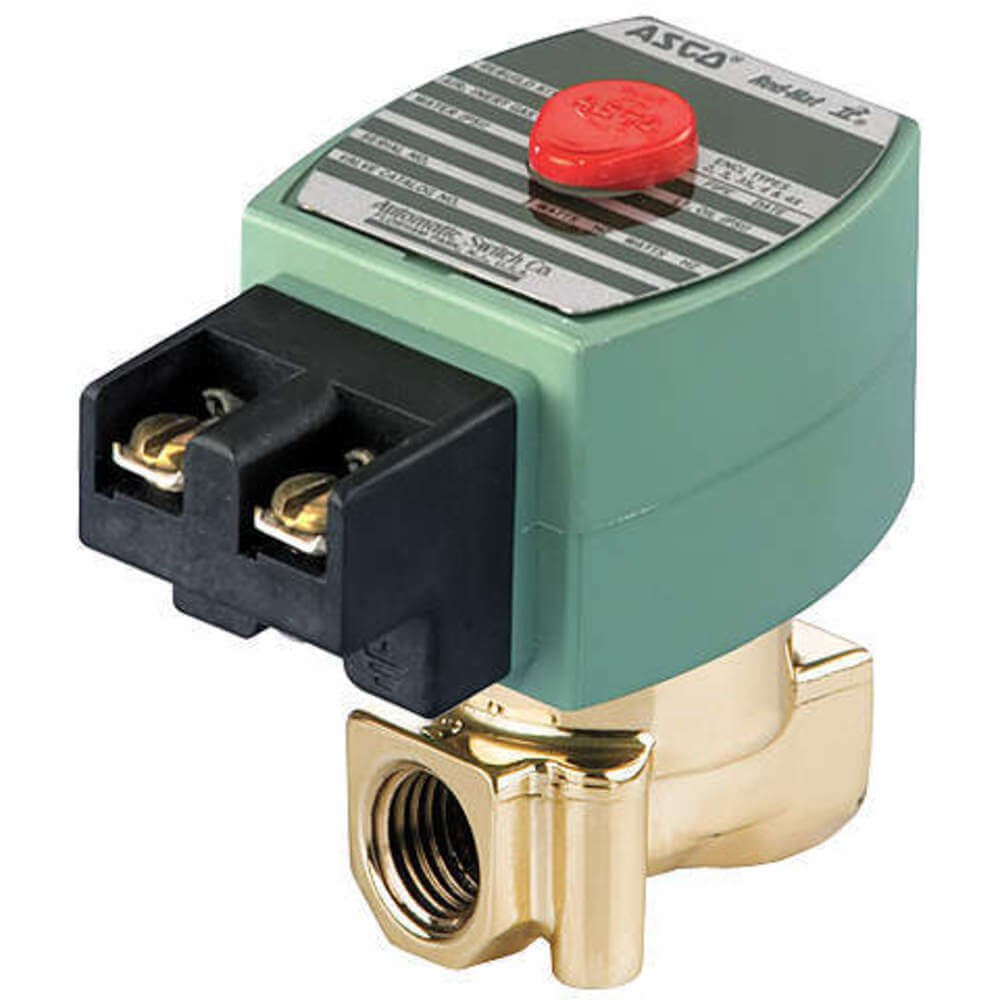

RED HAT OFKF8262H208 Solenoid Valve 2/2 1/4 Inch Nc 24v Brass
Item: AF2YHEModel: OFKF8262H208Cross Ref: 6ZAK6
7 In Stock
Ships within 2 days via
€407.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing And Laundry Equipment, Food Processing And Many Others, Pumps |
| Body Material | Brass |
| Center Line Pipe Center Size | 2.812" |
| Class | Class F |
| Coefficient Of Volume | 0.73 |
| Coil Enclosure | Open Frame, Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connection | Screw Terminal |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 50 Hz , 60 Hz |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | 100 psi |
| Max. Operating Pressure Differential Light Oil | 100 psi |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | 100 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Corrosive, Hazardous, Indoor, Outdoor |
| Operation | Direct Acting |
| Orifice Dia. | 0.219" , 7/32" |
| Outlet Connection Type | NPTF |
| Overall Height | 3 1/8" |
| Overall Length | 1 9/16" |
| Overall Width | 1 15/16" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 24V AC |
| Watts | 10.1 W |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 8.64 |
| HS code | 8481809005 |
| Country of Origin | MX |
