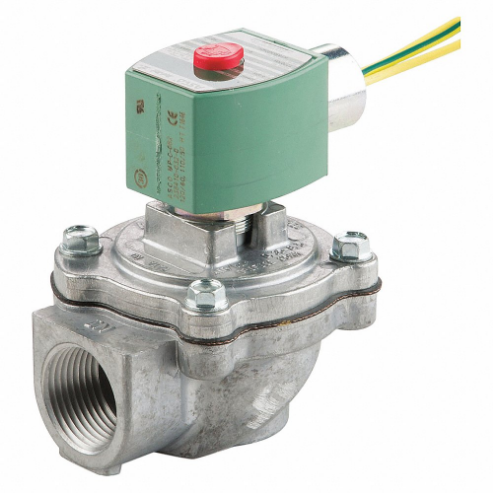

RED HAT HT8353G041V120/60 110/50DA Solenoid Valve 2/2 1 Inch Nc 120/110v Aluminium
Item: AB7ZPVModel: HT8353G041V120/60 110/50DACross Ref: 24W626
7 In Stock
Ships within 2 days via
10.00% off
€612.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Solenoid Valve Sold Separately, Specially Designed For Reverse Jet-Type Dust Collector Systems |
| Body Material | Aluminum |
| Center Line Pipe Center Size | 2.812" |
| Class | Class F |
| Coefficient Of Volume | 20 |
| Coefficient Of Volume (cv) | 20 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | DIN |
| For Media | Air |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Ip Rating | IP66 |
| Max. Fluid Temp. | 185°F |
| Max. Fluid Temperature | 185°F |
| Max. Operating Pressure Differential - Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | Not Rated |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Operating Pressure Differential | 5 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1" |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1 1/8" |
| Orifice Diameter | 1 1/8" |
| Overall Height | 4 1/2" |
| Overall Length | 3 7/16" |
| Overall Width | 2 15/16" |
| Pipe Size | 1" |
| Seal Material | FKM |
| Standards | Atex, Csa, Ul Listed |
| Valve Configuration | Normally Closed |
| Valve Design | Diaphragm |
| Valve Positions | 2 Position |
| Valve Type | Diaphragm |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 110/120V AC |
| Wattage | 6.1 W |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 10.67 |
| HS code | 8481809005 |
| Country of Origin | MX |
