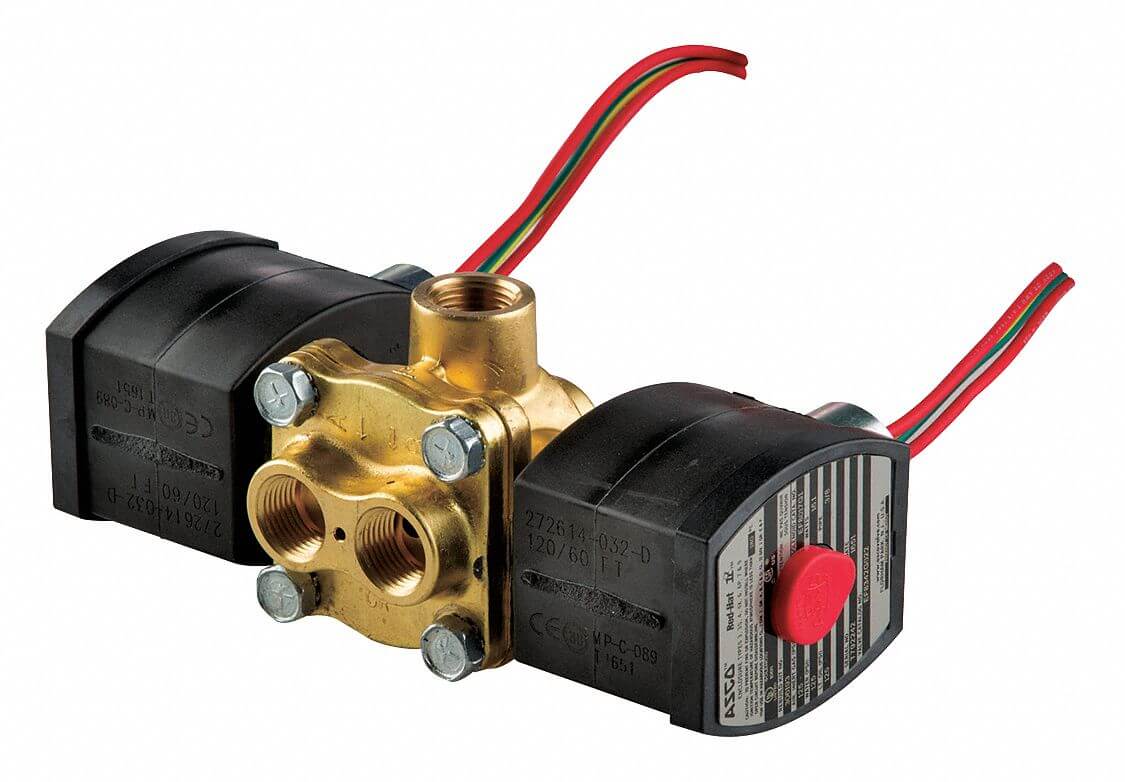

RED HAT EF8342G022 Dual Solenoid Valve 4/2 3/8 Inch 120/110V
Item: AH9UWMModel: EF8342G022Cross Ref: 44U328
7 In Stock
Ships within 2 days via
10.00% off
€1,581.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | Brass |
| Center Line Pipe Center Size | 2.562" |
| Class | Class F |
| Coefficient Of Volume | 0.7 |
| Coefficient Of Volume (cv) | 0.7 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| Environmental Protection | Explosion Proof, Indoor, Outdoor |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Max. Ambient Temperature | 125°F |
| Max. Fluid Temp. | 160°F |
| Max. Fluid Temperature | 160°F |
| Max. Operating Pressure Differential - Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 125 psi |
| Max. Operating Pressure Differential Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 125 psi |
| Min. Ambient Temperature | 32°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 3/8" |
| Operating Environment | Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Diameter | 3/16" |
| Outlet Connection Type | NPTF |
| Overall Height | 6 1/4" |
| Overall Length | 2 9/16" |
| Overall Width | 2 11/16" |
| Pipe Size | 3/8" |
| Seal Material | FKM |
| Standards | Csa, Ul Listed |
| Type | Air, Inert Gas, Light Oil, Water |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | Namur Mount |
| Valve Ways | 4-Way |
| Valve Ways And Positions | 4 Ways And 2 Positions |
| Voltage | 120V AC |
| Wattage | 16.1 W |
Shipping Info:
| Ship weight (kg) | 1.66 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Details:
- Solenoid Valve Product Group : Solenoid Valve
- Max. Operating Pressure Differential Air/Inert Gas : 125 psi
- Max. Operating Pressure Differential Water : 125 psi
- Max. Operating Pressure Differential Light Oil : 125 psi
