RED HAT EF8342G001 Single Solenoid Valve 4/2 1/4 Inch 120/110v
Item: AE4BRYModel: EF8342G001Cross Ref: 5JC54
7 In Stock
Ships within 2 days via
€572.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Analytical And Diagnostic Equipment, Biofuel And Heating Systems, Dust Collector Systems, Heating Equipment, Refining Applications |
| Body Material | Brass |
| Class | Class F |
| Coefficient Of Volume | 0.7 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 50/60 Hz , 60 Hz |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Max. Ambient Temp. | 125°F |
| Max. Fluid Temp. | 160°F |
| Max. Operating Pressure Differential Air/inert Gas | 125 psi |
| Max. Operating Pressure Differential Light Oil | 100 psi |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | 100 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Ambient Temp. | 32°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 3/16" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 7/16" |
| Overall Length | 2 15/16" |
| Overall Width | 2 9/16" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Standards | Csa, Ul Listed |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | Namur Mount |
| Valve Ways | 4-Way |
| Valve Ways And Positions | 4 Ways And 2 Positions |
| Voltage | 120V AC |
| Watts | 20.1 W |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 13.21 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 7.87 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Operation | Min. Operating Pressure Differential | Max. Operating Pressure Differential Air/inert Gas | Max. Operating Pressure Differential Water | Max. Operating Pressure Differential Light Oil | Max. Fluid Temp. | Coil Insulation Class | Coefficient Of Volume | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EF8344G07024/DCDD | Pilot Operated | 10 psi | 125 psi | 125 psi | Not Rated | 150°F | F | 0.8 | €903.32 | |
|
8342G003P | Direct Acting | 0 psi | 125 psi | 100 psi | 100 psi | 160°F | F | 0.7 | €841.57 | |
|
8344G070 | Pilot Operated | 10 psi | 150 psi | 125 psi | 125 psi | 180°F | F | 0.8 | €798.31 | |
|
EF8344G070120/60 110/50DA | Pilot Operated | 10 psi | 150 psi | 125 psi | 125 psi | 180°F | F | 0.8 | €906.02 | |
 |

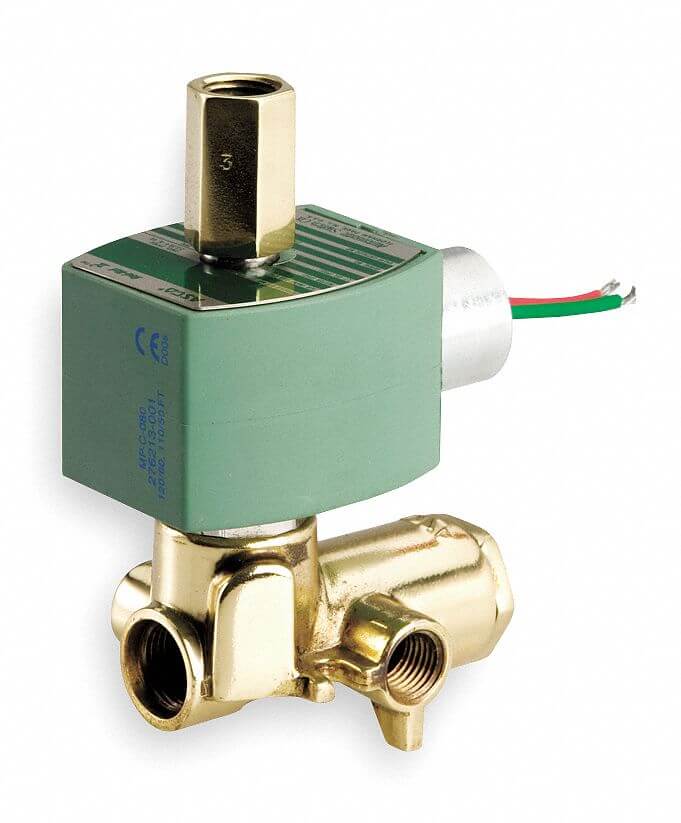

EF8345G00124/DCDD | Pilot Operated | 10 psi | 100 psi | 100 psi | 100 psi | 140°F | F | 0.09 | €495.98 | |
|
8344G001 | Pilot Operated | 10 psi | 250 psi | 250 psi | 250 psi | 180°F | F | 0.8 | €899.58 | |
 |

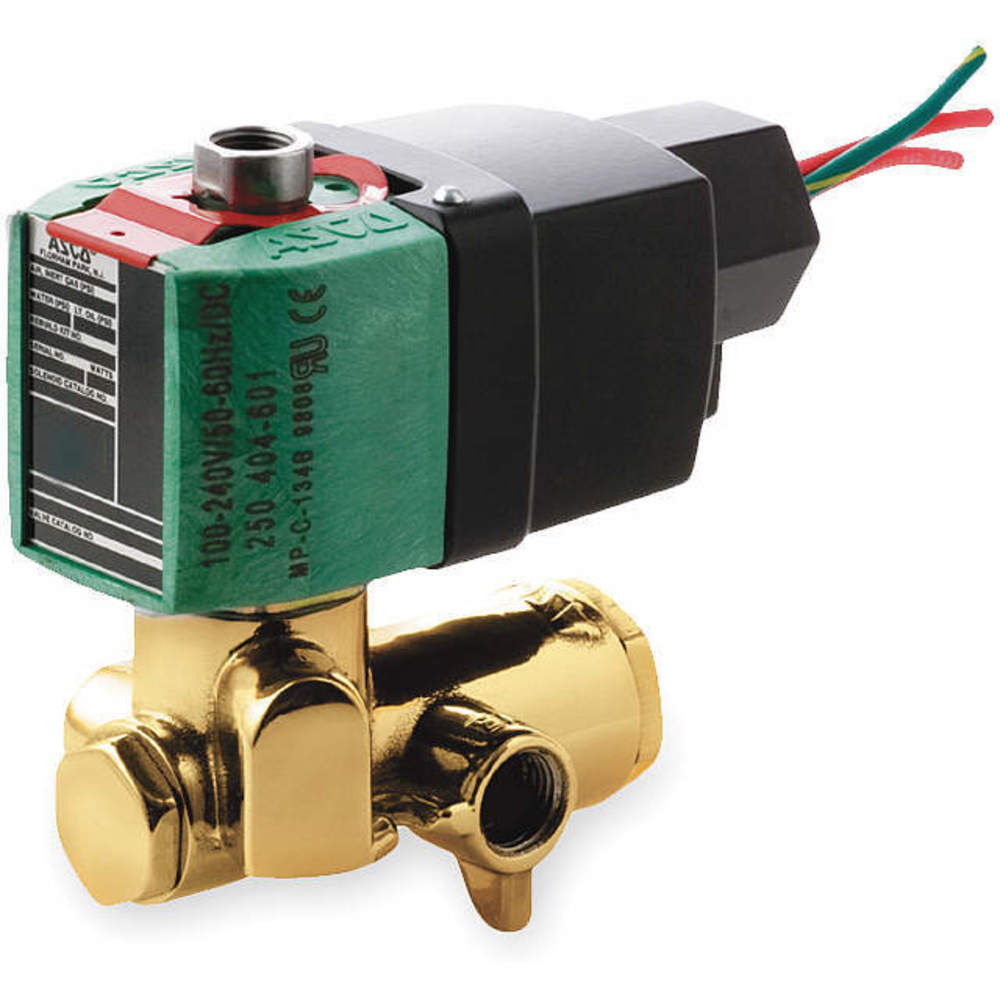

8345P001 | Pilot Operated | 10 psi | 150 psi | 150 psi | 150 psi | 180°F | H | 0.09 | €450.59 |
