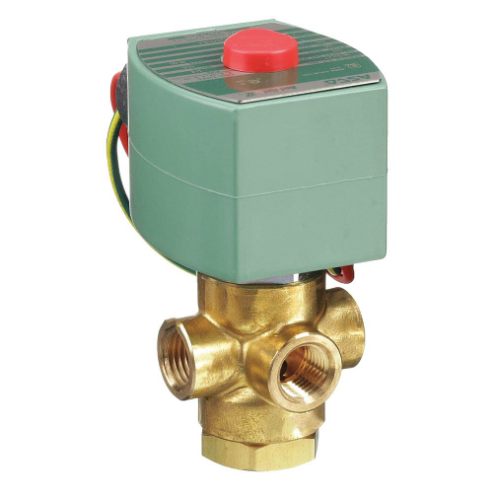

RED HAT EF8321G001120/60 110/50DA Solenoid Valve 3/2 1/4 Inch Nc 120/110v
Item: AB7ZQEModel: EF8321G001120/60 110/50DACross Ref: 24W637
7 In Stock
Ships within 2 days via
5.00% off
€766.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | Brass |
| Center Line Pipe Center Size | 2" |
| Coefficient Of Volume | 0.8 |
| Coefficient Of Volume (cv) | 0.8 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases, Light Oil, Water |
| Frequency | 50/60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Max. Fluid Temp. | 180°F |
| Max. Fluid Temperature | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 200 psi |
| Max. Operating Pressure Differential - Light Oil | 200 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 200 psi |
| Max. Operating Pressure Differential Air/inert Gas | 200 psi |
| Max. Operating Pressure Differential Light Oil | 200 psi |
| Max. Operating Pressure Differential Water | 200 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Operating Pressure Differential | 10 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 0.281" |
| Orifice Diameter | 9/32" |
| Outlet Connection Type | NPTF |
| Overall Height | 3 15/16" |
| Overall Length | 3 1/8" |
| Overall Width | 2 1/2" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Standards | Atex, Csa, Iec Ex Zone 1-21, Sil, Ul Listed |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Quick Exhaust |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 110/120V AC |
| Wattage | 6.1 W |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 10.41 |
| HS code | 8481809005 |
| Country of Origin | MX |
