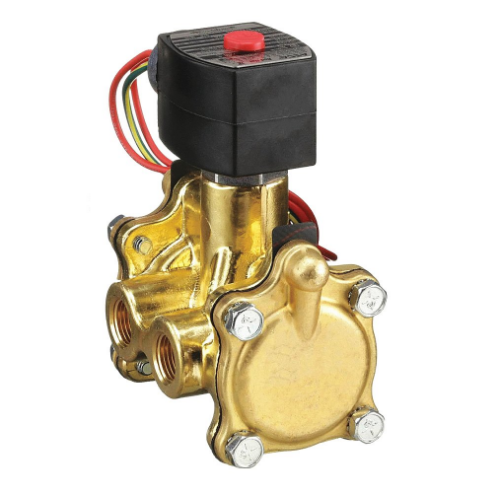

RED HAT EF8316G054120/60 110/50DA Solenoid Valve 3/2 3/8 Inch Nc 120/110v
Item: AB7ZQUModel: EF8316G054120/60 110/50DACross Ref: 24W650
7 In Stock
Ships within 2 days via
10.00% off
€839.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | Brass |
| Center Line Pipe Center Size | 3.938" |
| Class | Class F |
| Coefficient Of Volume | 2.5 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Hz | 50/60 Hz |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | 125 psi |
| Media Type | Air, Inert Gas, Water |
| Min. Operating Pressure Differential | 10 psi |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Operation | Pilot Operated |
| Orifice Dia. | 5/8" |
| Overall Length | 2 7/8" |
| Overall Width | 4.312" |
| Pipe Size | 3/8" |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 24-480V AC |
| Wattage | 6.1 W |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 16 |
| HS code | 8481809005 |
| Country of Origin | MX |
