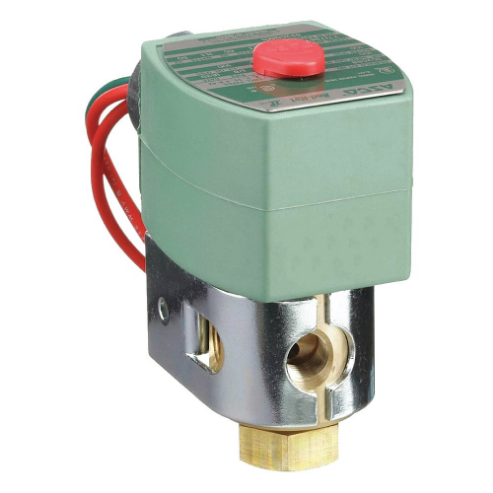

RED HAT EF8314G30124/DCDD Solenoid Valve 3-way 1/4 Inch Universal 24v
Item: AB7ZPUModel: EF8314G30124/DCDDCross Ref: 24W624
7 In Stock
Ships within 2 days via
10.00% off
€605.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Body Material | Stainless Steel |
| Center Line Pipe Center Size | 2" |
| Class | Class F |
| Coefficient Of Volume | 0.08 |
| Coefficient Of Volume (cv) | 0.08 |
| Coil Enclosure | Explosion Proof And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPT |
| Max. Fluid Temp. | 140°F |
| Max. Fluid Temperature | 140°F |
| Max. Operating Pressure Differential - Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | Not Rated |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | Not Rated |
| Media Type | Air, Inert Gas |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 7, NEMA 9 |
| Nominal Pipe Size | 1/4" |
| Operation | Pilot Operated |
| Operation Type | Direct Acting |
| Orifice Dia. | 0.062" |
| Orifice Diameter | 1/16" |
| Outlet Connection Type | NPT |
| Overall Height | 3 13/16" |
| Overall Length | 1 5/16" |
| Overall Width | 1 5/16" |
| Pipe Size | 1/4" |
| Seal Material | Nbr |
| Valve Configuration | Configurable |
| Valve Positions | 2 Position |
| Valve Type | Moderate Flow |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 24V DC |
| Wattage | 1.4 W |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 12.45 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 8.38 |
| HS code | 8481809005 |
| Country of Origin | US |
