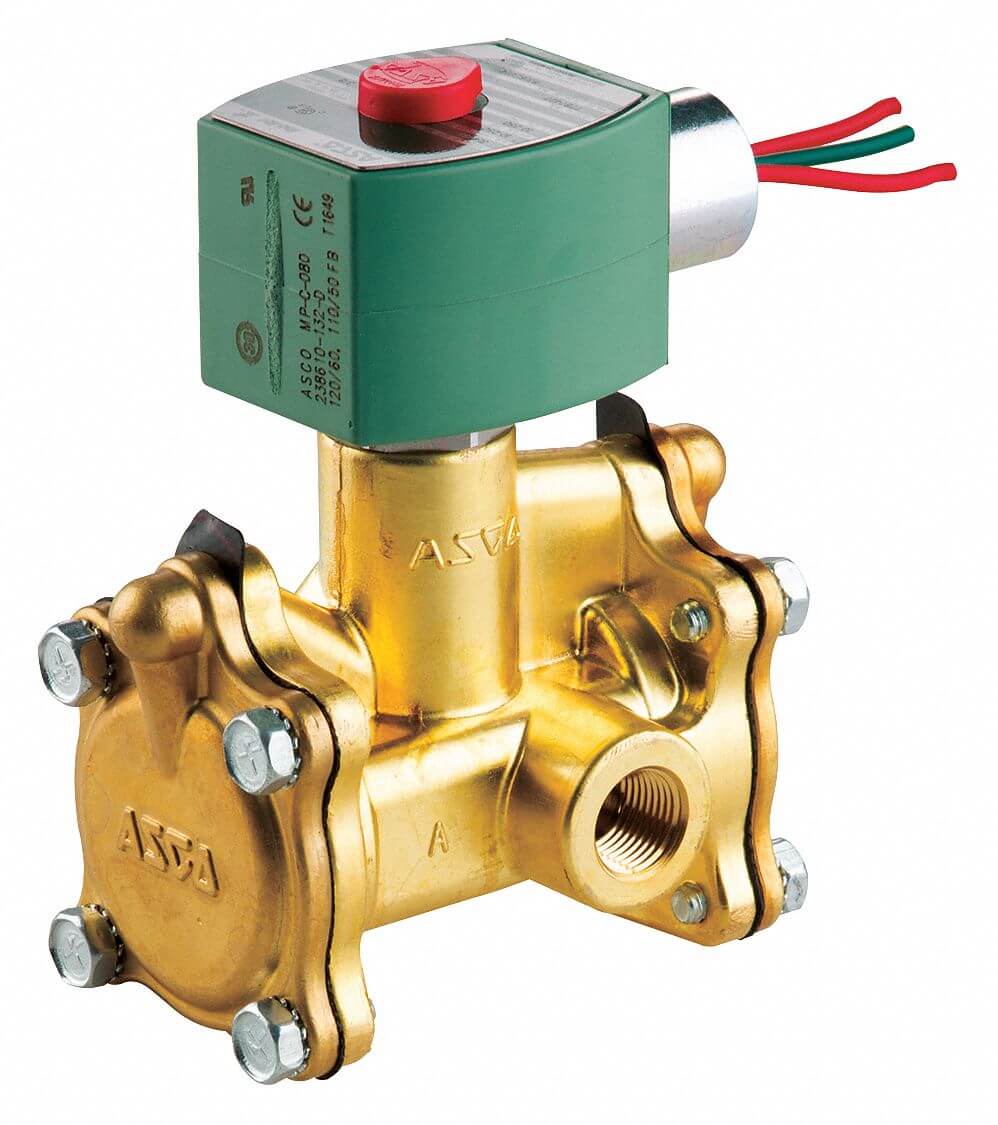

RED HAT 8316G014 Solenoid Valve 3/2 3/8 Inch NC 120/110V
Item: AH9UVBModel: 8316G014Cross Ref: 44U286
7 In Stock
Ships within 2 days via
10.00% off
€703.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Controlling Air, Inert Gas, Liquids |
| Body Material | Brass |
| Class | Class F |
| Coefficient Of Volume | 2.5 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| Environmental Protection | Indoor, Outdoor |
| For Media | Air, Inert Gases, Water |
| Frequency | 60 Hz |
| Hz | 50/60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Fluid Temp. | 180°F |
| Max. Fluid Temperature | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 250 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 250 psi |
| Max. Operating Pressure Differential Air/inert Gas | 250 psi |
| Max. Operating Pressure Differential Light Oil | 250 psi |
| Max. Operating Pressure Differential Water | 250 psi |
| Media | Air, Inert Gas, Water |
| Min. Operating Pressure Differential | 10 psi |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 3/8" |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Direct Acting |
| Orifice Dia. | 5/8" |
| Orifice Diameter | 5/8" |
| Outlet Connection Type | NPTF |
| Overall Height | 5 1/4" |
| Overall Length | 4 5/16" |
| Overall Width | 2 3/4" |
| Pipe Size - Valves | 3/8" |
| Seal Material | Nbr |
| Standards | Ce, Csa |
| Type | Air, Inert Gases, Water |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 3-Way |
| Valve Ways And Positions | 3 Ways And 2 Positions |
| Voltage | 110/120V AC |
| Wattage | 17.1 W |
Shipping Info:
| Ship weight (kg) | 1.96 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Details:
- Solenoid Valve Product Group : Solenoid Valve
- Max. Operating Pressure Differential Air/Inert Gas : 250 psi
- Max. Operating Pressure Differential Water : 250 psi
- Max. Operating Pressure Differential Light Oil : Not Rated
