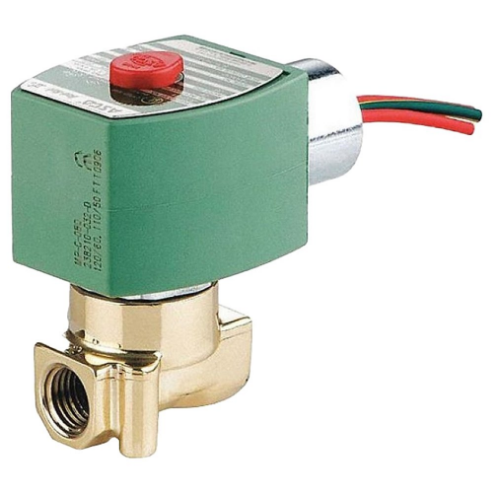

RED HAT 8262H208LF 24/DC Solenoid Valve, 1/4 Inch Pipe Size Valves, 24 Vdc, Brass, H
Item: CT8VLAModel: 8262H208LF 24/DCCross Ref: 53AY16
7 In Stock
Ships within 2 days via
€164.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing And Laundry Equipment, Food Processing, Pumps |
| Body Material | Brass |
| Center Line Pipe Center Size | 2.766" |
| Coefficient Of Volume | 0.63 |
| Coil Enclosure | H |
| Coil Insulation Class | H |
| Compliance | CSA, UL |
| Electrical Connections | 16" Leads |
| For Media | Aggressive Gases, Aggressive Liquids, Air, Ammonia, Biodiesel Fuel, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP65 |
| Lead Length | 16" |
| Max. Ambient Temp. | 131°F |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | 35 psi |
| Max. Operating Pressure Differential Light Oil | 35 psi |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | 35 psi |
| Min. Ambient Temp. | -13°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | 4X |
| Nominal Pipe Size | 1/4" |
| Operating Environment | Corrosive, Hazardous, Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 0.219" , 7/32" |
| Outlet Connection Type | NPTF |
| Overall Height | 3 1/8" |
| Overall Length | 1 5/16" |
| Overall Width | 1 15/16" |
| Pipe Size | 1/4" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2-Way/2-Position |
| Voltage | 24V DC |
| Watts | 11.6 W |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 7.94 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 4.92 |
| Country of Origin | MX |
