RED HAT 8221G005 Solenoid Valve 2/2 3/4 Inch Nc 120/110v
Item: AD2UWRModel: 8221G005Cross Ref: 3UL37
7 In Stock
Ships within 2 days via
€503.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Slow Closing Solenoid Valve |
| Application | Autoclave, Laundry, Molding, Sterilizers |
| Body Material | Brass |
| Center Line Pipe Center Size | 3 3/4" |
| Class | Class F |
| Coefficient Of Volume | 3 |
| Coefficient Of Volume(cv) | 3 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Water |
| Frequency | 50/60 Hz |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | Not Rated |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | 150 psi |
| Media Type | Water |
| Min. Operating Pressure Differential | 5 psi |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 3/4" |
| Operating Environment | Corrosive, Hazardous, Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 3/4" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 9/16" |
| Overall Length | 2 15/16" |
| Overall Width | 3 7/16" |
| Pipe Size | 3/4" |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | Slow Closing |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 110/120V AC |
| Watts | 6.1 W |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 12.95 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 8.64 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Model | Overall Height | Voltage | Overall Width | Orifice Dia. | Coefficient Of Volume | Nominal Pipe Size | Center Line Pipe Center Size | Coefficient Of Volume(cv) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

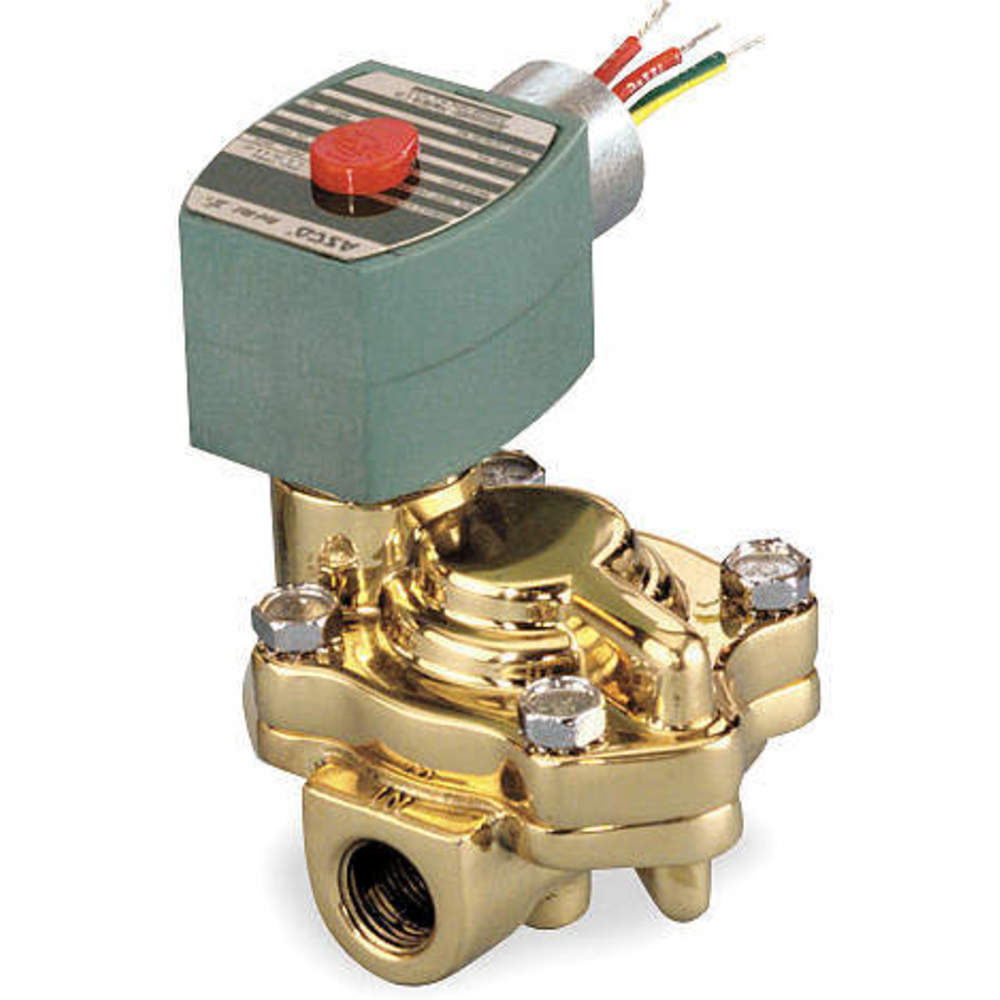

| 8221G001 | 4 3/8" | 110/120V AC | 3 7/16" | 0.562" | 3 | 3/8" | 3 5/8" | 3 | €466.91 | |
| 8221G003 | 4 3/8" | 110/120V AC | 3 7/16" | 9/16" | 3.5 | 1/2" | 3 5/8" | 3.5 | €500.65 | |
| 8221G007 | 5 5/8" | 24-480V AC | 3.187" | 1" | 11.5 | - | 4" | - | €1,110.97 | |

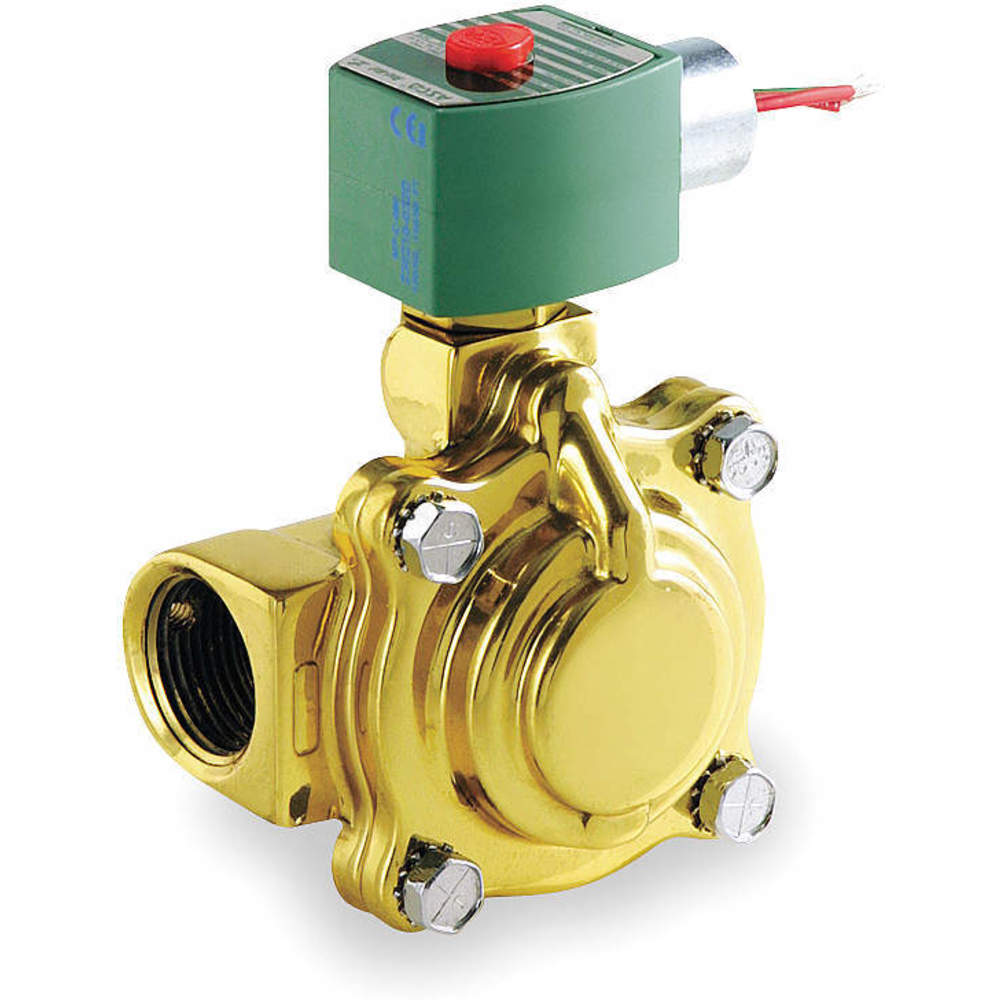

| 8221G009 | 5 9/16" | 110/120V AC | 3 9/16" | 1 1/8" | 3 | 1 1/4" | - | 3 | €1,195.78 | |
| 8221G011 | 6 1/4" | 110/120V AC | 4 1/4" | 1 1/4" | 3 | 1 1/2" | 4.187" | 3 | €1,647.88 | |
| 8221G013 | 7 3/8" | 110/120V AC | 4 3/4" | 1 3/4" | 3 | 2" | 4 5/8" | 3 | €1,811.49 |
