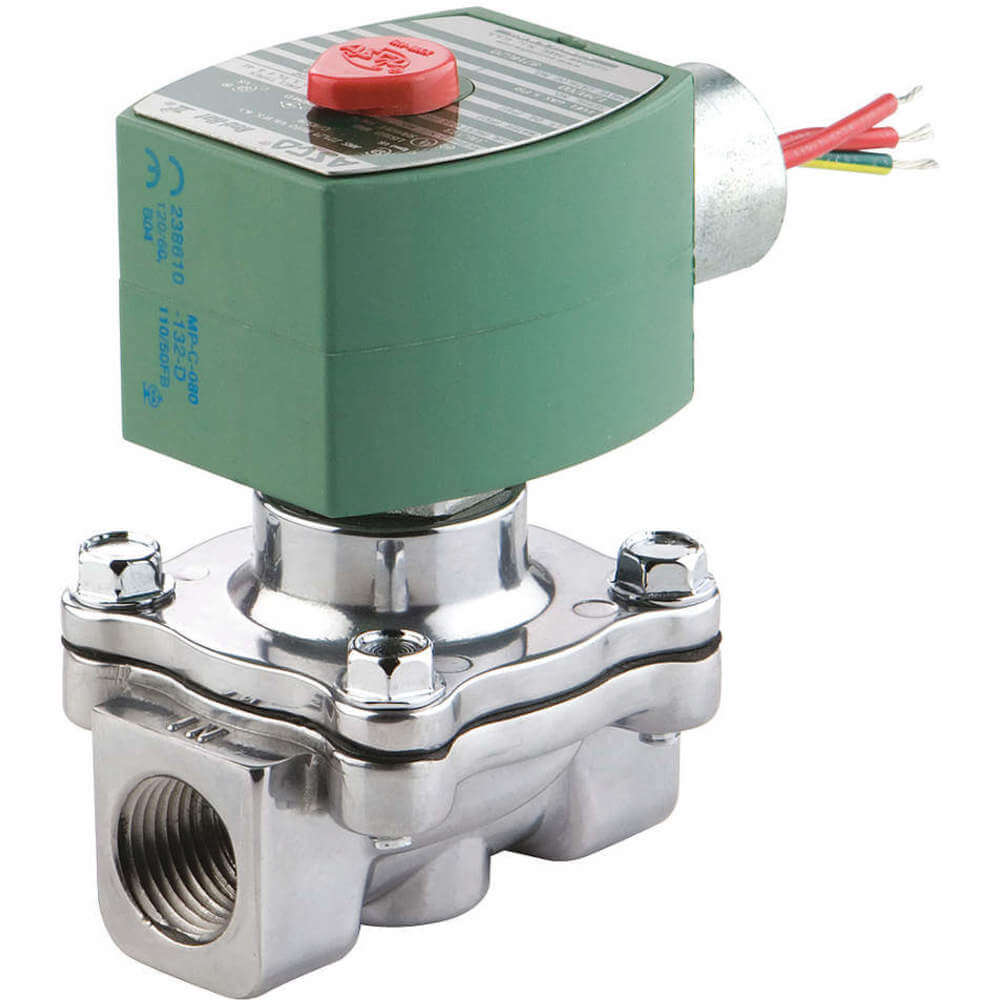

RED HAT 8215G023 Fuel Gas Solenoid No 1/2in. 4 Cv Aluminium
Item: AE8LXUModel: 8215G023Cross Ref: 6DYP5
7 In Stock
Ships within 2 days via
€495.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air and Fuel Gas Solenoid Valve |
| Ambient Temp. | +32°F to +125°F |
| Application | Heating Equipment, Vacuum Service |
| Body Material | Aluminum |
| Class | Class F |
| Coefficient Of Volume | 4 |
| Coil Enclosure | General Purpose No Junction Box And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 18" Leads |
| For Media | Air, Inert Gases, Liquid Propane Gas, Natural Gas, Oxygen |
| Frequency | 50/60 Hz |
| Gas Capacity | 206250 btuH |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP65 |
| Max. Ambient Temp. | 140°F |
| Max. Fluid Temp. | 125°F |
| Min. Ambient Temp. | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation Type | Direct Acting |
| Orifice Dia. | 3/4" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 7/16" |
| Overall Length | 2 3/4" |
| Overall Width | 2 3/8" |
| Pipe Size | 1/2" |
| Response Time | 120 ms |
| Seal Material | NBR |
| Valve Configuration | Normally Open |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Voltage | 110/120V AC |
| Watts | 10.1 W |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 10.67 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Watts | Frequency | Orifice Dia. | Overall Height | Voltage | Electrical Connections | Valve Configuration | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EF8215B060 | 15.4 W | 50/60 Hz | 1 5/8" | 6 27/32" | 110/120V AC | 1/2" Conduit W/18" Leads | Normally Closed | +32°F to +125°F | €747.78 | |
 |
8215G020 | 11.6 W | 60 Hz | 3/4" | 4" | - | - | Normally Closed | 0°F to +104°F | €283.58 | |
|
8215G030 | 10.1 W | 60 Hz | 3/4" | 4 7/16" | 12V DC | 18" Leads | Normally Closed | 0°F to +104°F | €299.10 | |
|
EF8215C053 | 15.4 W | 50/60 Hz | 1 5/8" | 6 27/32" | 110/120V AC | 1/2" Conduit W/18" Leads | Normally Open | +32°F to +125°F | €996.06 | |
 |
EF8215G033 | 10.1 W | 50/60 Hz | 3/4" | 4 15/32" | 110/120V AC | 18" Leads | Normally Open | +32°F to +125°F | €573.67 | |
 |
8215A090 CSA | 28.2 W | 50/60 Hz | 3" | - | 110/120V AC | 1/2" Conduit W/18" Leads | Normally Closed | +32°F to +125°F | €1,335.33 | |
|
8215G020B | 10.1 W | 60 Hz | 3/4" | 6 27/32" | 110/120V AC | 18" Leads | Normally Closed | +32°F to +125°F | €316.97 |
