ASCO VALVES 8210G089 Solenoid Valve 2/2 1 Inch Nc 120v Ss
Item: AE4BRWModel: 8210G089Cross Ref: 5JC50
7 In Stock
Ships within 2 days via
10.00% off
€1,419.43 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps |
| Body Material | Stainless Steel |
| Center Line Pipe Center Size | 4 1/2" |
| Class | Class F |
| Coefficient Of Volume | 13 |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit Hub |
| For Media | Air, Inert Gases, Light Oil, Water |
| Hz | 60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential Air/inert Gas | 150 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 125 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1" |
| Operating Environment | Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1" |
| Outlet Connection Type | NPTF |
| Overall Height | 5 3/8" |
| Overall Length | 3 3/4" |
| Overall Width | 3 13/16" |
| Pipe Size | 1" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 120V AC |
| Wattage | 16.1 W |
Shipping Info:
| Ship weight (kg) | 2.32 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 18.8 |
| Ship width (cm) | 13.97 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Valve Ways And Positions | Valve Configuration | Pipe Size | Voltage | Operation | Body Material | Seal Material | Max. Operating Pressure Differential Air/inert Gas | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

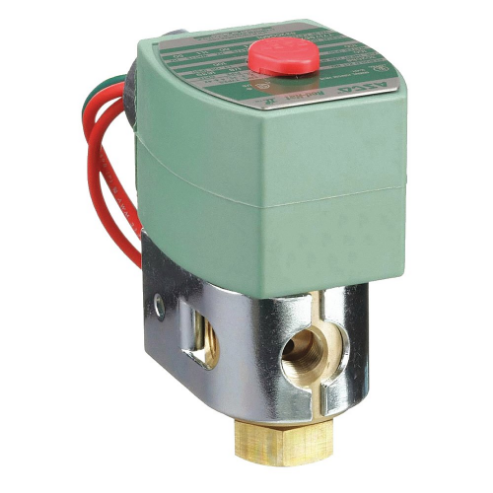

8320G001120/60 110/50DA | 3 Ways And 2 Positions | Configurable | 1/8" | 110/120V AC | Direct Acting | Brass | Nbr | 65 psi | - | RFQ
|
 |
SC8256B046V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 110/120V AC | Direct Acting | Brass | FKM | 135 psi | €126.36 | |
 |
U8256B046V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 110/120V AC | Direct Acting | Stainless Steel | FKM | 135 psi | €129.38 | |
|
U8256A104E | 2 Ways And 2 Positions | Normally Closed | 1/8" | 24-480V AC | Direct Acting | Stainless Steel | EPDM | 400 psi | €139.07 |
