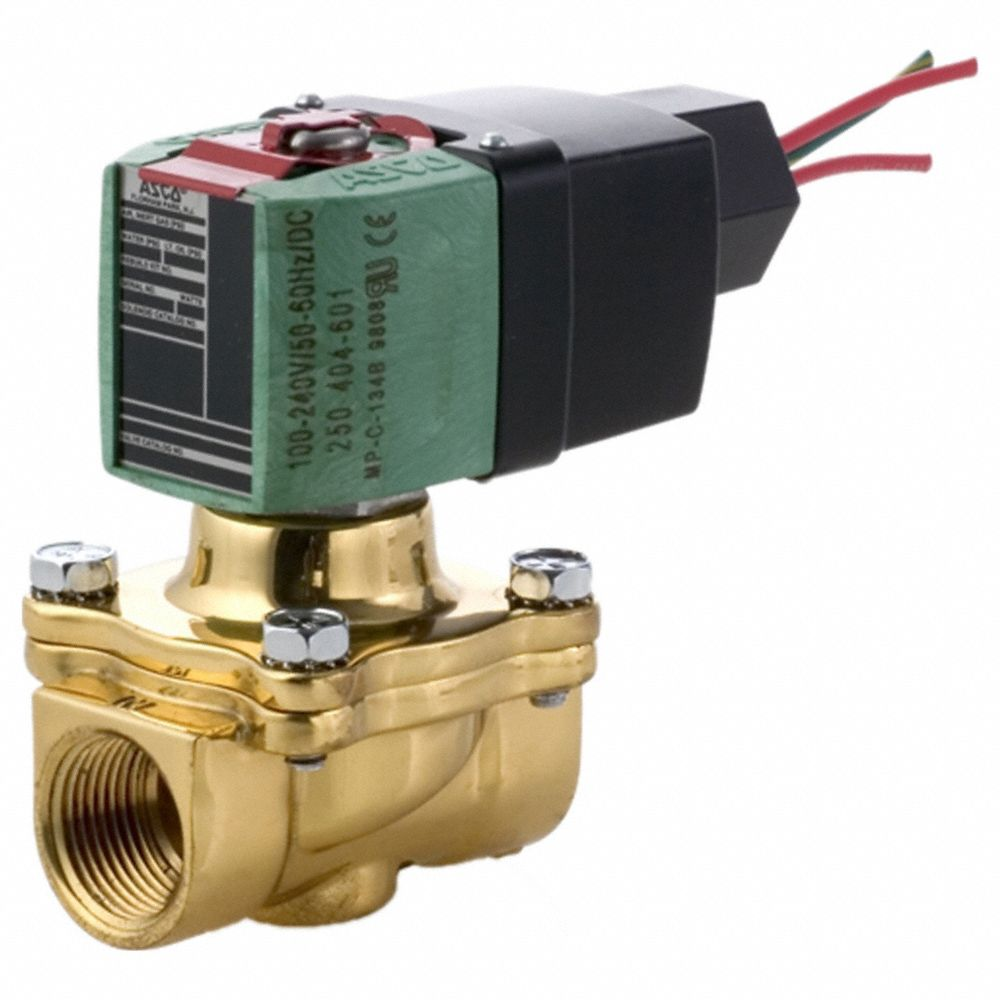

RED HAT 8210G014LF24DC Solenoid Valve, 2-Way, Normally Open, 1 Inch Size, 24V DC, Watertight, High Flow, NBR Seal
Item: EA4PZJModel: 8210G014LF24DCCross Ref: 806HH5
7 In Stock
Ships within 2 days via
€650.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lead |
| Body Material | Brass |
| Coefficient Of Volume | 10.01 to 20, 13 |
| Coil Enclosure | Watertight |
| Connection Type | NPTF |
| Environmental Rating | Outdoor, Indoor |
| For Media | Water, Inert Gases, Air, Light Oil |
| Max. Ambient Temp. | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 350 psi |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Water | 150 psi |
| Min. Ambient Temp. | 14°F |
| Min. Operating Pressure Differential | 5 psi |
| Nominal Pipe Size | 1" |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1" |
| Seal Material | NBR |
| Valve Configuration | Normally Open |
| Valve Type | High Flow |
| Valve Ways | 2 Way |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 2.62 |
| Ship height (cm) | 15.75 |
| Ship length (cm) | 23.88 |
| Ship width (cm) | 18.8 |
| Country of Origin | MX |
Product Variants
| Model | Voltage | Min. Operating Pressure Differential | Operation Type | Coefficient Of Volume | Min. Ambient Temp. | Nominal Pipe Size | Orifice Dia. | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8210P004LF100240 | 100-240V AC/DC | 5 psi | Pilot Operated | 10.01 to 20, 13 | 14°F | 1" | 1" | 140°F | €559.02 | |
| 8210P008LF100240 | 100-240V AC/DC | 5 psi | Pilot Operated | 10.01 to 20, 15 | 14°F | 1 1/4" | 1 1/8" | 140°F | €713.14 | |
| 8210P022LF100240 | 100-240V AC/DC | 5 psi | Pilot Operated | 22.5, Greater than 20 | 14°F | 1 1/2" | 1 1/4" | 140°F | €1,064.92 | |
| 8210P033LF100240 | 100-240V AC/DC | 0 psi | Pilot Operated | 2.01 to 3, 3 | 14°F | 3/8" | 5/8" | 140°F | €506.65 | |
| 8210P034LF100240 | 100-240V AC/DC | 0 psi | Pilot Operated | 3.01 to 5, 4 | 14°F | 1/2" | 5/8" | 140°F | €506.88 | |
| 8210P035LF100240 | 100-240V AC/DC | 0 psi | Pilot Operated | 5.5, 5.01 to 10 | 14°F | 3/4" | 3/4" | 140°F | €510.01 | |
| 8210P093LF100240 | 100-240V AC/DC | 0 psi | Pilot Operated | 2.01 to 3, 3 | 14°F | 3/8" | 5/8" | 140°F | €364.48 |
