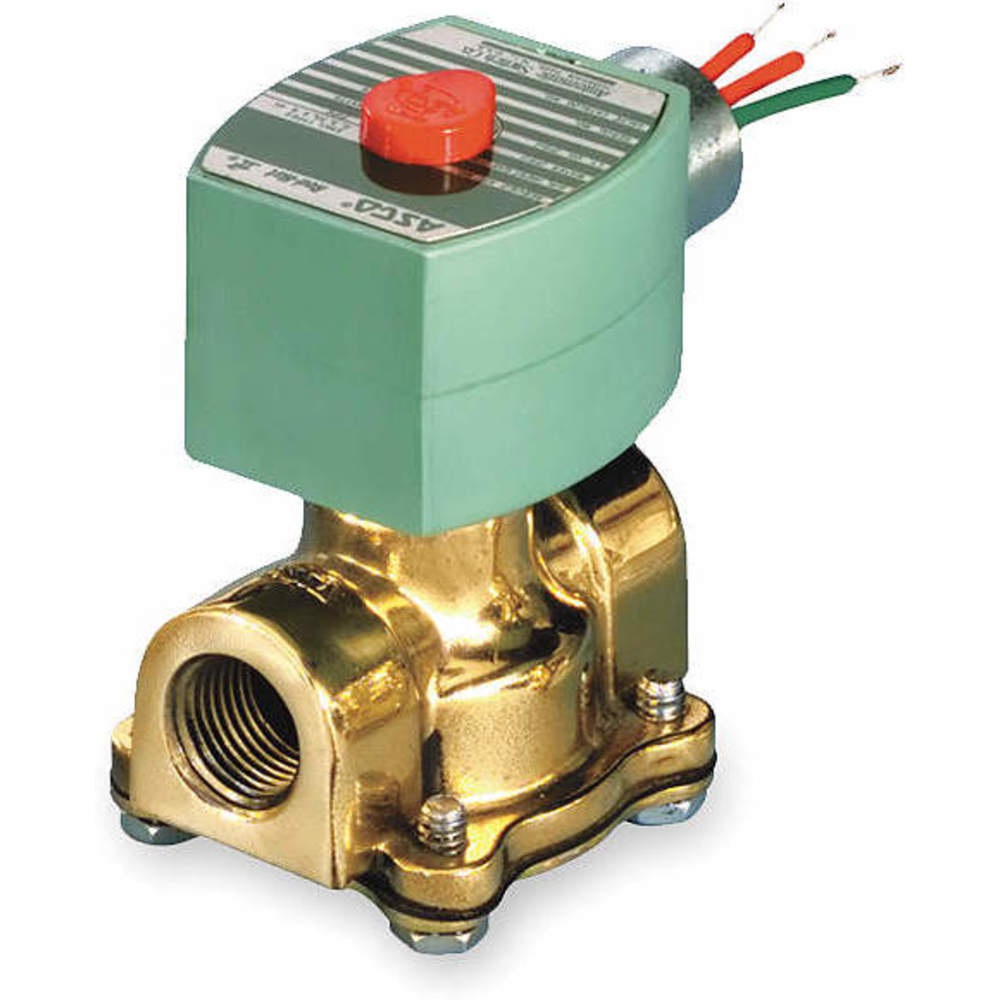

RED HAT 8030G083 Solenoid Valve 2/2 3/4 Inch No 120v Brass
Item: AC2CZZModel: 8030G083Cross Ref: 2HTR5
7 In Stock
Ships within 2 days via
€369.20 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Low Pressure General Service, Vacuum |
| Body Material | Brass |
| Center Line Pipe Center Size | 2 7/8" |
| Class | Class F |
| Coefficient Of Volume | 5.5 |
| Coil Enclosure | Watertight No Junction Box |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| For Media | Air, Inert Gases, Natural Gas, Water |
| Frequency | 50/60 Hz , 60 Hz |
| Included Coil | Yes |
| Included Seals | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Ambient Temp. | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential Air/inert Gas | 2 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Steam | Not Rated |
| Max. Operating Pressure Differential Water | 2 psi |
| Media Type | Air, Inert Gas, Water |
| Min. Ambient Temp. | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Mounting Orientation | Horizontal, Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 3/4" |
| Operating Environment | Indoor, Outdoor |
| Operation | Direct Acting |
| Operation Type | Direct Acting |
| Orifice Dia. | 3/4" |
| Outlet Connection Type | NPTF |
| Overall Height | 4" |
| Overall Length | 2 13/16" |
| Overall Width | 2 1/4" |
| Pipe Size | 3/4" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Valve Configuration | Normally Open |
| Valve Positions | 2 Position |
| Valve Type | Compact |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 120V AC |
| Watts | 10.1 W |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 12.95 |
| Ship width (cm) | 10.67 |
| HS code | 8481809005 |
| Country of Origin | MX |
