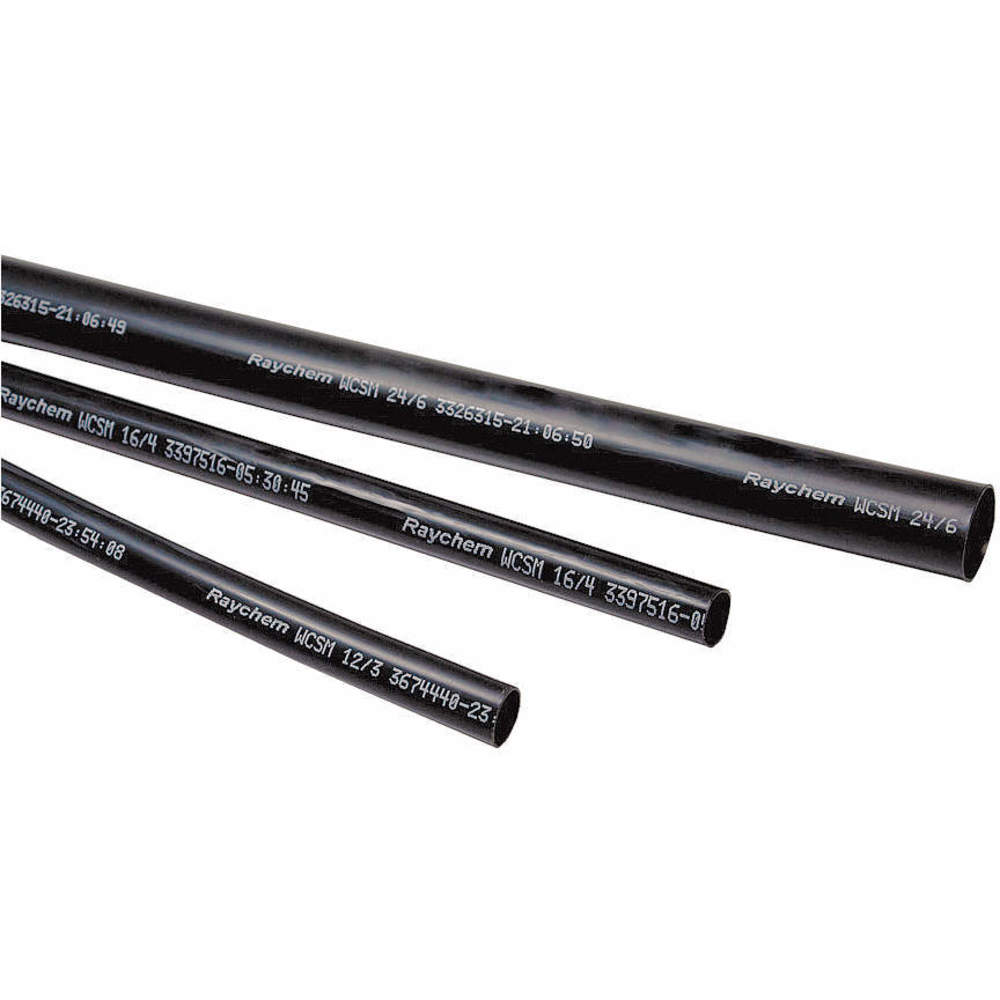

RAYCHEM WCSM-24/6-300-S-(B50) Shrink Tubing 1.000 Inch Id Black 1 Inch
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Heat Shrink Tubing |
| Adhesive Lined | No |
| Color | Black |
| Dielectric Strength | 1000V |
| Features | Meet/Exceed Industrial And Military Standards |
| Flame Retardant | No |
| I.d. After Shrinking | 6/25" |
| I.d. Before Shrinking | 1" |
| Length | 1" |
| Length (straight Wireway) | 1" |
| Material | Polyolefin |
| Max. Temp. Rating | 275°F |
| Max. Voltage | 1000V |
| Min. Shrink Temp. | 203°F |
| Min. Temp. Rating | -67°F |
| Package Style | Individual Pieces |
| Shrink Ratio | 4:1 |
| Shrink Temp. | 203 Degrees F |
| Shrink Temp. | 203°F |
| Shrink Tubing Adhesive Lined | No |
| Shrink Tubing I.d. Before Shrinking | 1" |
| Shrink Tubing Length | 1" |
| Shrink Tubing Properties | Halogen-Free, UV Light Resistant |
| Shrink Tubing Wall Type | Heavy Wall |
| Temp. Range | -67°F to +275°F |
| Tubing Wall Type | Heavy Wall |
| Use With Wire Size | 6 AWG to 4/0 AWG |
| Wall Thickness After Shrinking | 0.11" |
| Wall Type | Heavy Wall |
| Wire Range | 6 AWG to 4/0 AWG |
Shipping Info:
| Ship weight (kg) | 1.73 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 31.75 |
| Ship width (cm) | 25.7 |
| HS code | 8546900000 |
