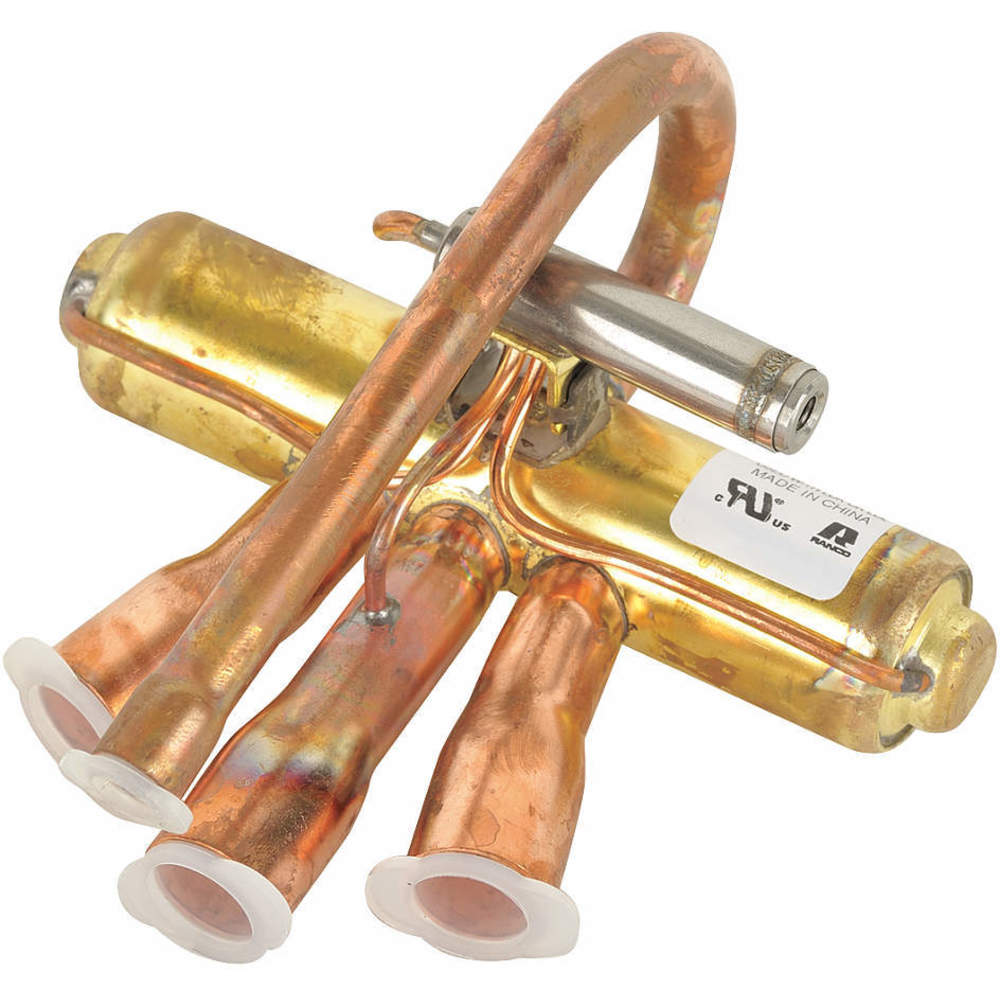

RANCO V2-410060-470 Heat Pump Reversing Valve 3/8 x 5/8 In
Item: AE3BFLModel: V2-410060-470Cross Ref: 5AV34
7 In Stock
Ships within 2 days via
10.00% off
€206.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Heat Pump Reversing Valve |
| Application | Heat Pumps |
| Body Material | Brass |
| Body Pattern | Four Way |
| Discharge Connection Size | 3/8" |
| Discharge Connection Type | Socket Weld |
| Discharge Tube Configuration | Candy Cane |
| For Media | CFC, HCFC, HFC |
| High Pressure Tube I.d. | 3/8" |
| Housing Material | Brass |
| Includes Pilot Valve | Pilot Valve Included |
| Includes Solenoid Coil | Solenoid Coil Not Included |
| Max. Operating Pressure | 690 psi |
| Minimum R410a Capacity | 1.3 ton. |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Operation Type | Coil Operated Four Way |
| R22 Capacity - Maximum | 2.5 ton. |
| R22 Capacity - Minimum | 1 ton. |
| R410a Capacity - Maximum | 2.5 ton. |
| Suction Connection Size | 5/8" |
| Suction Connection Type | Socket Weld |
| Suction Tube Configuration | Flare |
| Suction Tube I.d. | 5/8" |
| Tube Material | Copper |
| Valve Type | Slide |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 19.3 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 7.87 |
| HS code | 8481809005 |
| Country of Origin | CN |
Product Details:
- Capacity in Tons (R-22) (1.0 to 2.5)
- Capacity in Tons (R-410A) (1.3 to 2.5)
- Capacity in Tons (R-502) (1.0 to 2.5)
- High Pressure Tube I.D. (3/8")
- Suction Tube I.D. (5/8")
