RANCO ETC112-100-000 Temperature Control, Single Stages, Heat or Cool, Digital, SPDT, 24V AC
Item: AD3JYDModel: ETC112-100-000Cross Ref: 3ZP80
7 In Stock
Ships within 2 days via
5.00% off
€183.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Voltage Thermostat |
| Ambient Humidity | 0% rh to 95% rh |
| Application | Cooling Control, Heating Control |
| Capillary Length | 96" |
| Color | Gray |
| Compatible With Series | Universal |
| Contact | SPDT x 1 |
| Contact Form | SPDT |
| Contact Type | SPDT |
| Depth | 2 1/2" |
| Differential | +1°F to +30°F |
| Display Type | Digital |
| For Use With | Cooling, Heating, Refrigeration |
| Full Load Amps @ 120v | 16A (NO), 5.8A (NC) |
| Full Load Amps @ 120v | 16A |
| Full Load Amps @ 240v | 8A |
| Full Load Amps @ 240vac | 8A (NO), 2.9A (NC) |
| Height | 6 1/2" |
| Housing Color | Gray |
| Housing Material | Polyethylene |
| Hp @ 120v | 1 hp |
| Hp @ 240v | 1 hp |
| Included | 8 ft. Foot Cable |
| Input Voltage | 24V AC |
| Ip Rating | IP67 |
| Key Pad Lockout | Yes |
| Max. Control Temp. | 220°F |
| Max. Temp. Differential Setting | 30°F |
| Min. Control Temp. | -30°F |
| Min. Temp. Differential Setting | 1°F |
| Mounting Type | Horizontal, Vertical |
| Nema Rating | 1 |
| Nema/ip Rating | 1/Nema Ip67 |
| No. Of Contacts | 1 |
| No. Of Relay Control Output | 1 |
| No. Of Relay Inputs | 1 |
| No. Of Relay Outputs | 1 |
| No. Of Relay/analog Outputs | 1 Relay |
| No. Of Sensor Inputs | 1 |
| No. Of Sensors Included | 1 |
| No. Of Spdt Outputs | 1 |
| No. Of Stages | 1 |
| No. Of Switches | 1 |
| Number Of Relay Inputs | 1 |
| Number Of Relay Outputs | 1 |
| Number Of Switches | 1 |
| Overall Depth | 2 1/2" |
| Overall Height | 6 1/2" |
| Overall Length X Width | 6 1/2" x 2 3/4" |
| Overall Width | 2 3/4" |
| Pilot Duty Contacts | 125 VA |
| Pilot Duty Contacts (va) | 125VA |
| Power Consumption | 100 mVA |
| Product Type | Temperature Control |
| Resistive Load Amps @ 120v | 96A |
| Resistive Load Amps @ 240v | 48A |
| Sensing Bulb Dia. | 1/4" |
| Sensing Bulb Length | 2" |
| Sensor Type | Thermistor |
| Switch Action | Open, Close On Rise |
| Temp. Control Function | Heat Or Cool |
| Temp. Sensitivity | -1°F to +1°F |
| Temp. Sensitivity | +/-1 Degrees F |
| Variable Output Voltage | Yes |
| Voltage | 24V AC |
| Width | 2 3/4" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 22.35 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 7.37 |
| HS code | 9032100090 |
| Country of Origin | MX |
Product Details:
- 0-10V Output (Yes)
Product Variants
| Model | Voltage | Overall Height | Full Load Amps @ 120v | Full Load Amps @ 240v | Height | Hp @ 240v | Variable Output Voltage | Hp @ 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

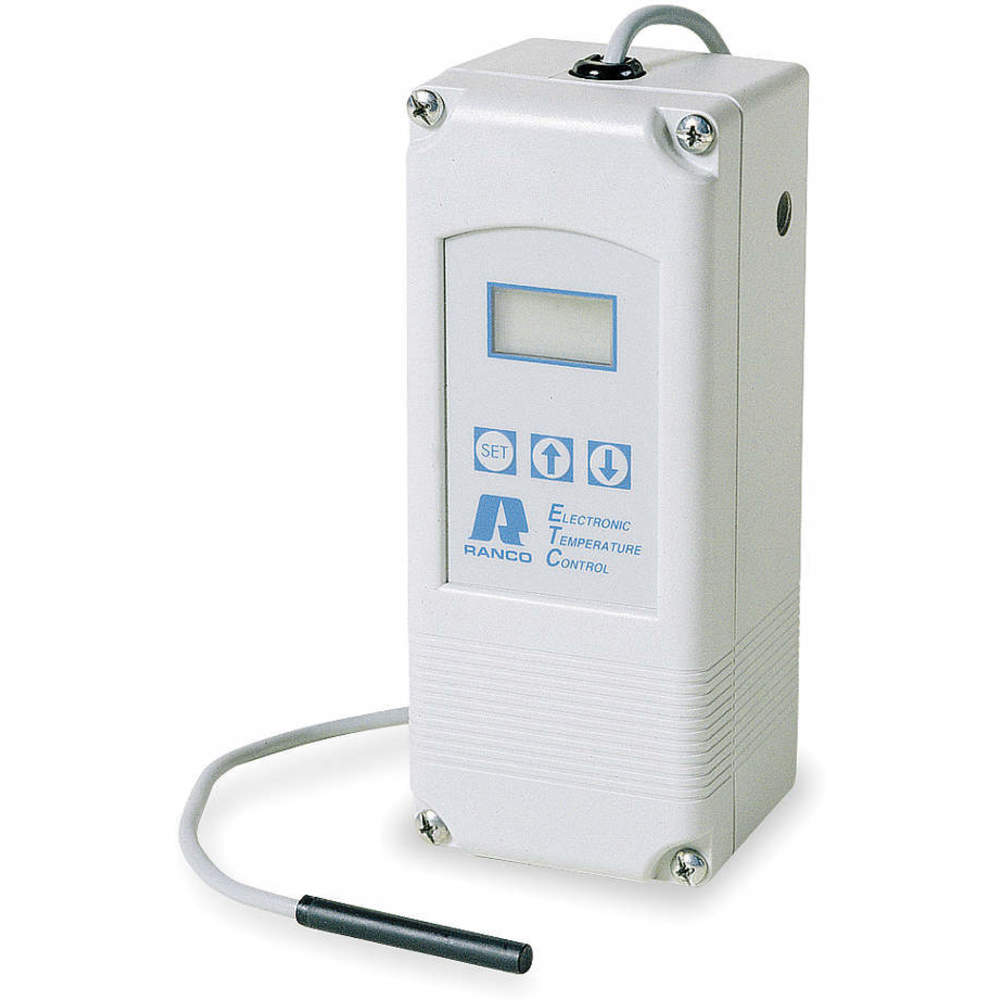

| ETC-111000-000 | 120-240V AC | 6 1/2" | 16A | 8A | 6 1/2" | 1 hp | No | 1 hp | €205.29 | |
| ETC111-100-000 | 120-240V AC | 6 1/2" | 16A | 8A | 6 1/2" | 1 hp | Yes | 1 hp | €258.82 | |
| ETC-112000-000 | 24-240V AC | 6 1/2" | 16A | 8A | 6 1/2" | 1 hp | No | 1 hp | €205.78 | |

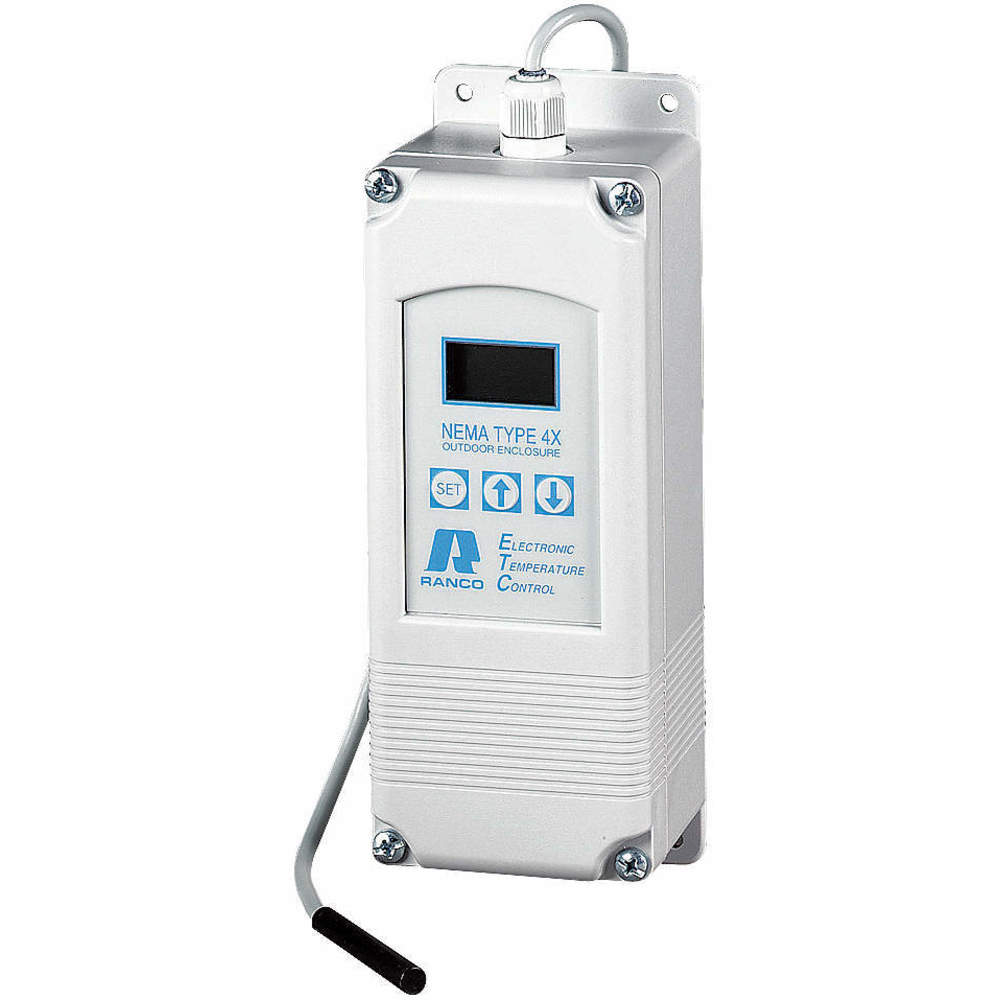

| ETC-141000-000 | 120-240V AC | 7 7/8" | 16A | 8A | 7 3/4" | 1 hp | No | 1 hp | €250.33 | |
| ETC211-000-000 | 120-240V AC | 6 1/2" | 9.8A | 4A | 6 1/2" | 1/2 hp | No | 1/2 hp | €243.97 | |
| ETC211-100-000 | 120-240V AC | 6 1/2" | 9.8A | 4A | 6 1/2" | 1/2 hp | Yes | 1/2 hp | €226.11 | |
| ETC212-000-000 | 24-240V AC | 6 1/2" | 9.8A | 4A | 6 1/2" | 1/2 hp | No | 1/2 hp | €205.78 |
