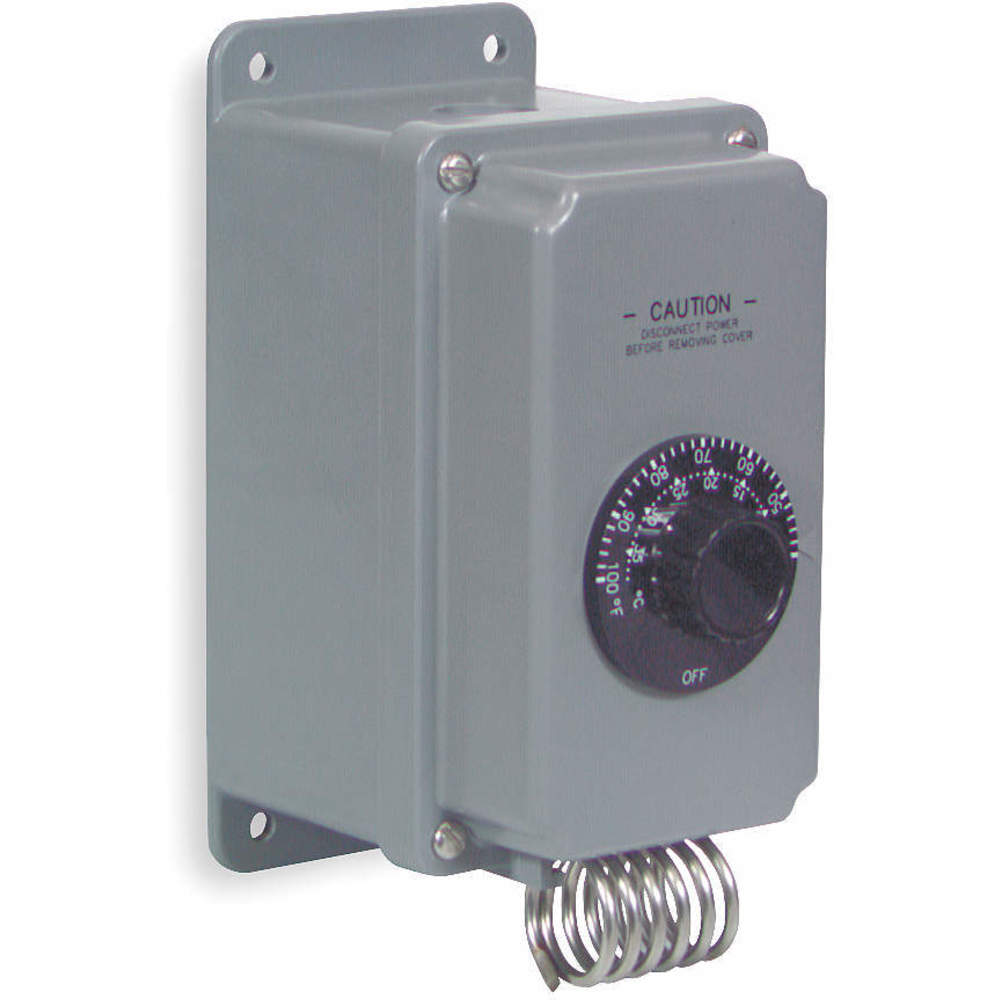

QMARK WT12 Thermostat Wall 25 A
Item: AD2URWModel: WT12Cross Ref: 3UH20
7 In Stock
Ships within 2 days via
10.00% off
€231.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Amps | 25A |
| Application | Heat Only |
| Compatible System Type | Fan Coil Units |
| Control Range | +40°F to +100°F |
| Depth | 2 1/2" |
| Differential Type | Fixed |
| Enclosure Color | Gray |
| Enclosure Material | Plastic |
| Enclosure Nema Rating | 4X |
| Full Load Amps | 25A |
| Full Load Amps @ 120v | 25A |
| Full Load Amps @ 240v Ac | 25A |
| Height | 6 3/8" |
| Maximum Control Temperature | 100°F |
| Maximum Operating Temperature | 40°F |
| Minimum Control Temperature | 40°F |
| Minimum Operating Temperature | 110°F |
| Number Of Heating Stages | 1 |
| Number Of Poles | 2 |
| Number Of Switches | 1 |
| Operating Temperature Range | 40°F to 110°F |
| Overall Depth | 2 1/2" |
| Overall Height | 6 3/8" |
| Overall Width | 3 1/16" |
| Remote Sensing Bulb Included | No |
| Remote Sensing Capability | No |
| Sensor Type | Hydraulic Air Coil |
| Switch Action | Open On Rise |
| Switch Type | DPST |
| Temp. Differential | 2.5°F |
| Temperature Scale | Celsius, Fahrenheit |
| Thermostat Heating/cooling | Heating |
| Thermostat Programmable | No |
| Thermostat Type | Line Voltage |
| Voltage | 120-480V AC |
| Voltage Range | 24-277V AC |
| Width | 3 1/16" |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 9.4 |
| Ship length (cm) | 20.57 |
| Ship width (cm) | 13.97 |
| HS code | 9032100030 |
| Country of Origin | KR |
